스냅 링, 어댑터 및 버퍼 브래킷이 포함된 ZP 시리즈 진공 흡입 컵(Ø9~Ø50)

잠금 링, 어댑터 및 버퍼 브래킷이 포함된 ZP 시리즈 진공 흡입 컵

스냅 링, 어댑터 및 버퍼 브래킷이 포함된 ZP 시리즈 진공 흡입 컵(Ø9~Ø50)

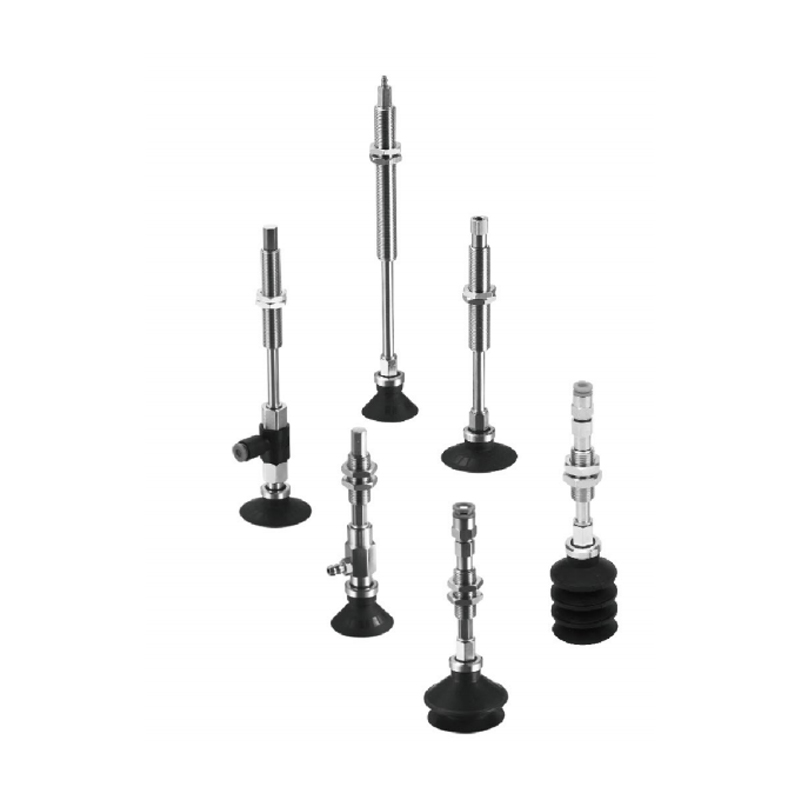

스냅 링, 어댑터 및 버퍼 브래킷이 있는 ZP 시리즈 진공 흡착컵(Ø9~Ø50)은 통합 잠금 링 메커니즘과 버퍼 기능을 갖춘 진공 흡착컵 어셈블리로, 다양한 사양(Ø9~Ø50)의 흡착컵에 적합하여 안정적인 파지 및 작업물 보호를 달성합니다.

핵심 기능
1. 잠금 및 낙하 방지 설계: 내장된 기계식 잠금 링은 흡입 컵을 자동으로 조여 음압 변동으로 인한 우발적인 낙하를 방지합니다.
2. 유연한 완충구조 : 내장된 탄성요소가 공작물의 접촉 충격을 흡수하여 정밀 표면의 손상 위험을 줄입니다.
3. 모듈형 어댑터 인터페이스: 표준화된 스레드/빠른 변경 인터페이스는 주류 진공 시스템과 호환되며 흡입 컵 사양의 빠른 교체를 지원합니다.
4. 얇고 컴팩트한 레이아웃: 낮은 설치 높이 설계는 작은 공간 레이아웃에 적합하며 로봇 암의 최종 하중을 최적화합니다.
5. 광범위한 작업 조건 적용: 기존의 음압 조건에 적합하며 금속/유리/플라스틱과 같은 비다공성 재료의 취급과 호환됩니다.

이메일: manager@cktworld.com

다운로드

이전:이전 글이 없습니다
다음:잠금 링이 있는 ZP 시리즈 진공 흡입 컵(Ø9~Ø50)

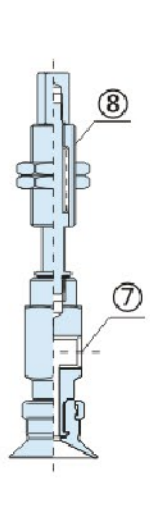

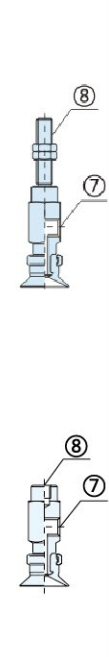

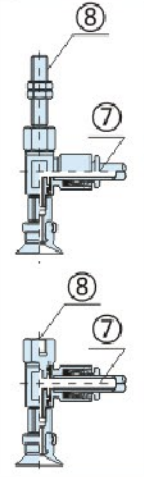

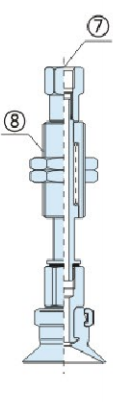

내부 구조

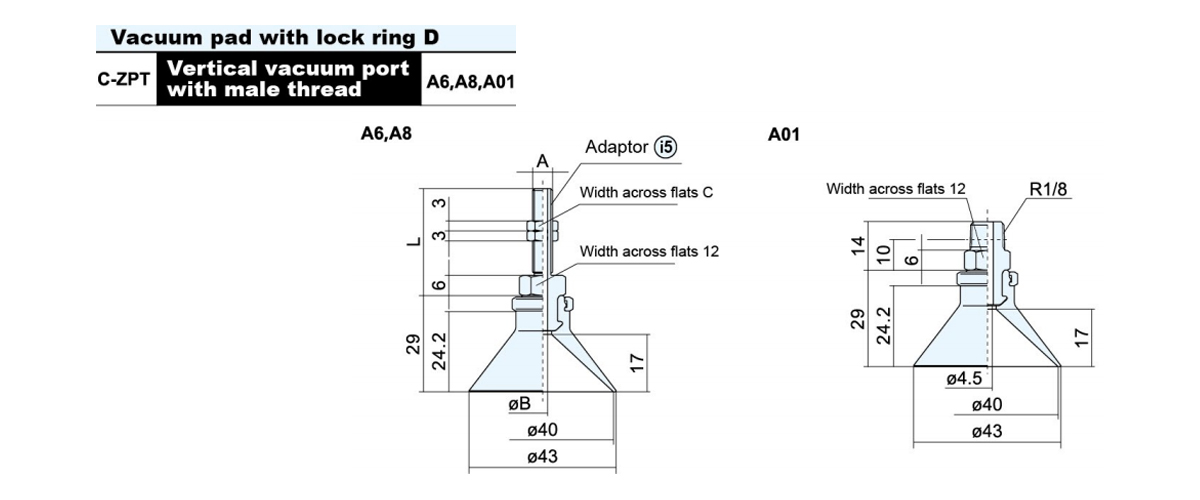

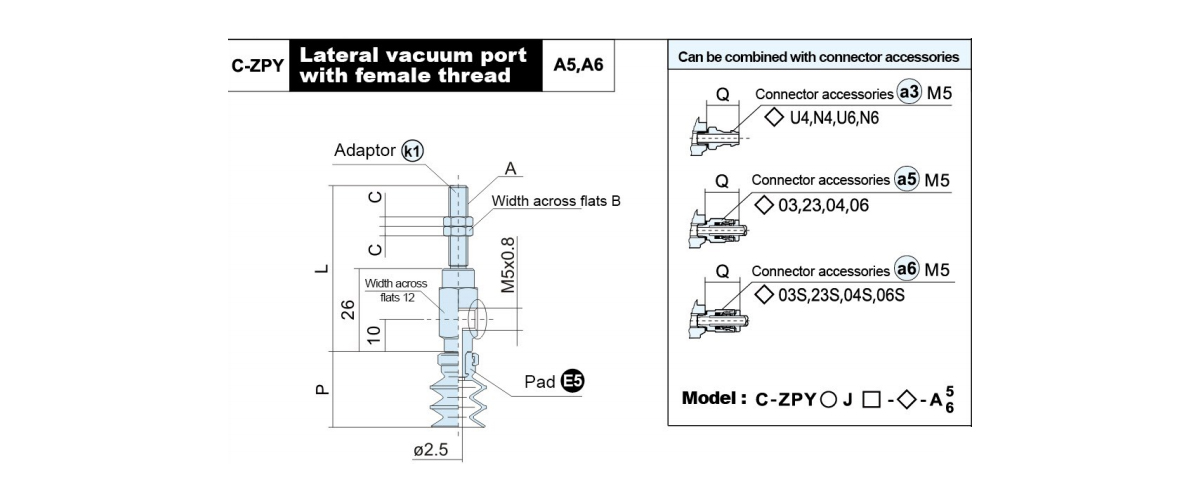

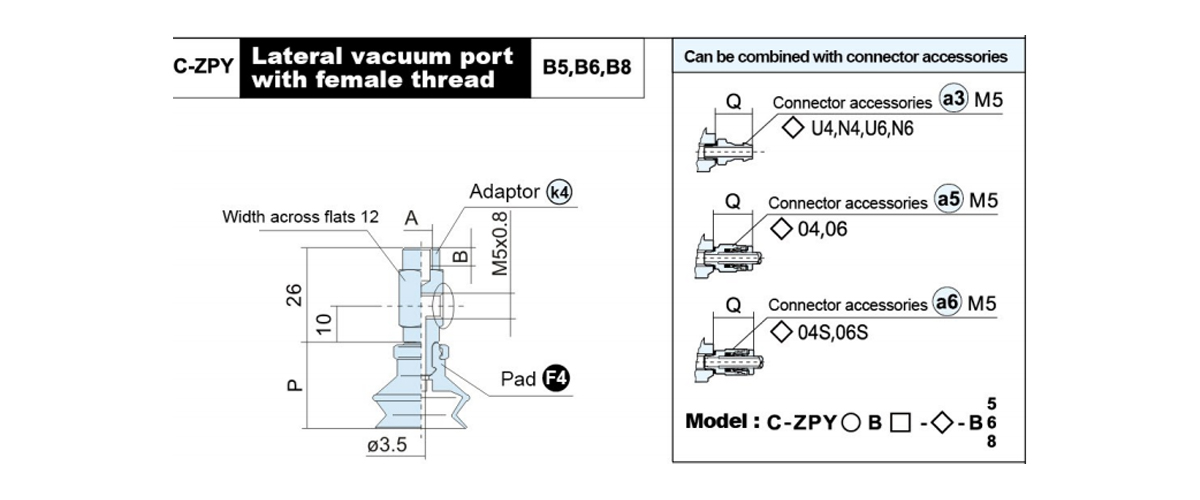

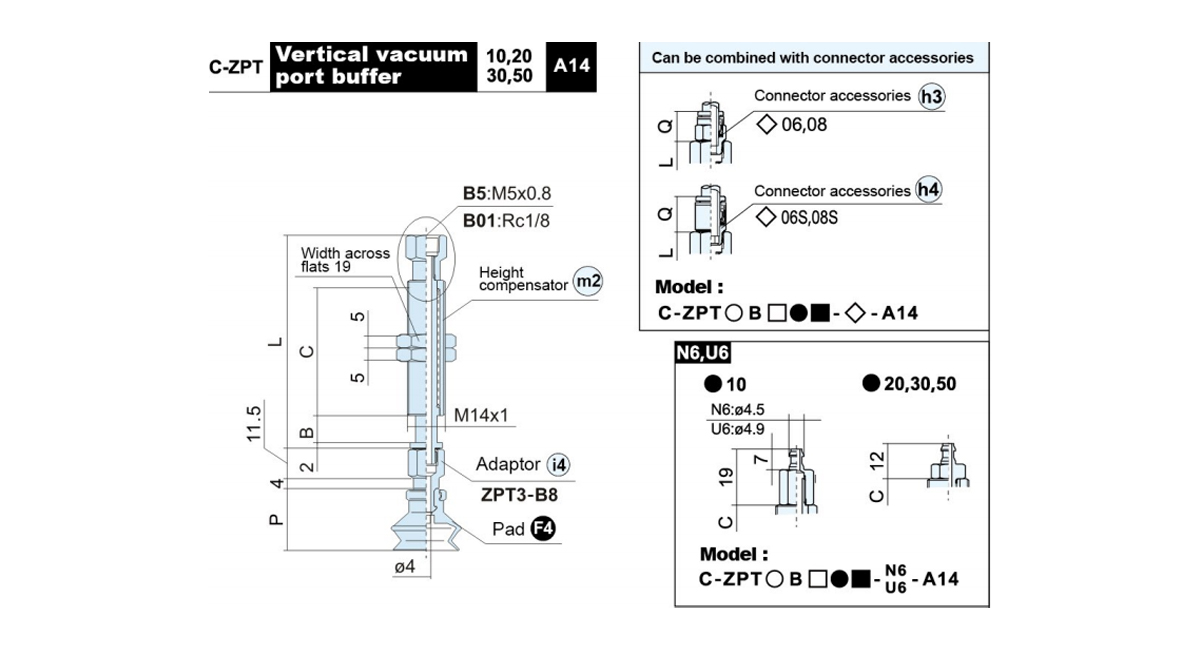

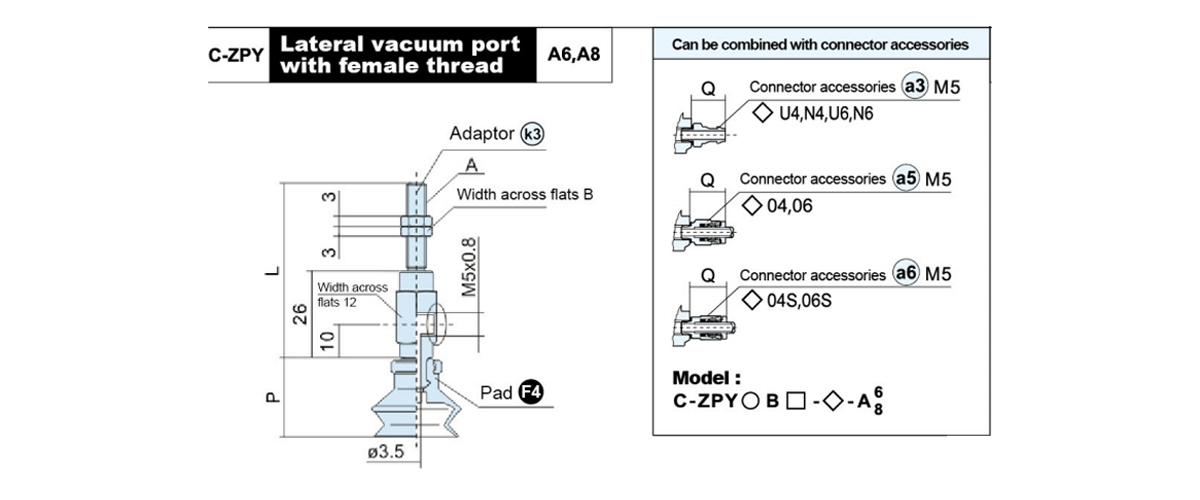

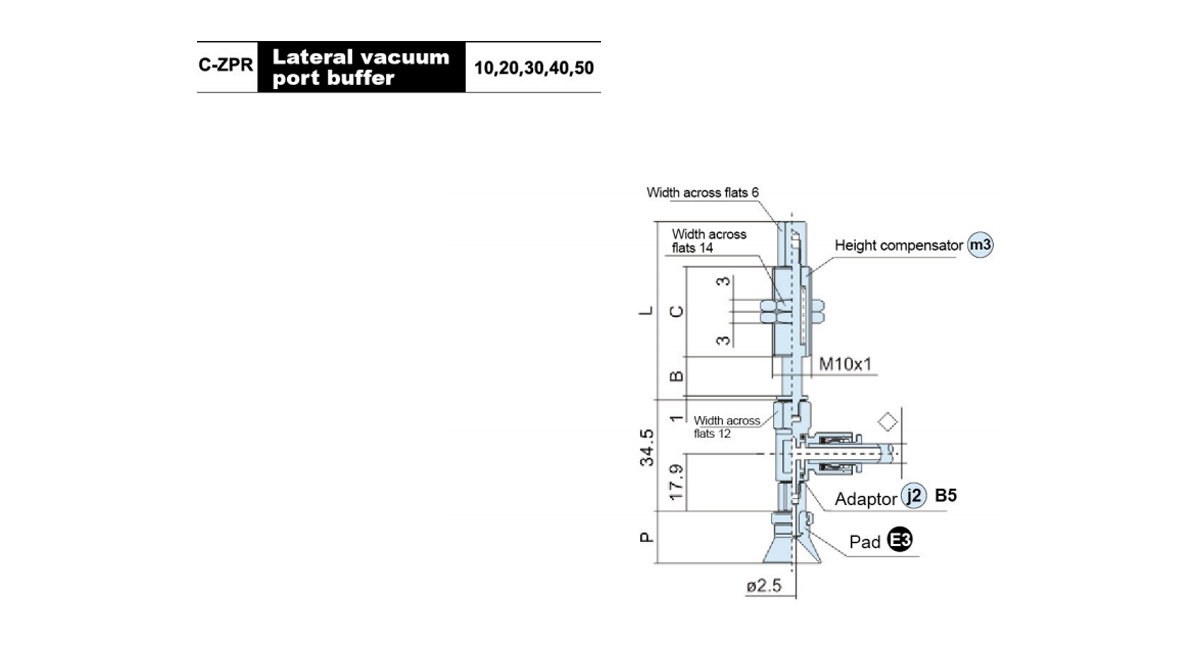

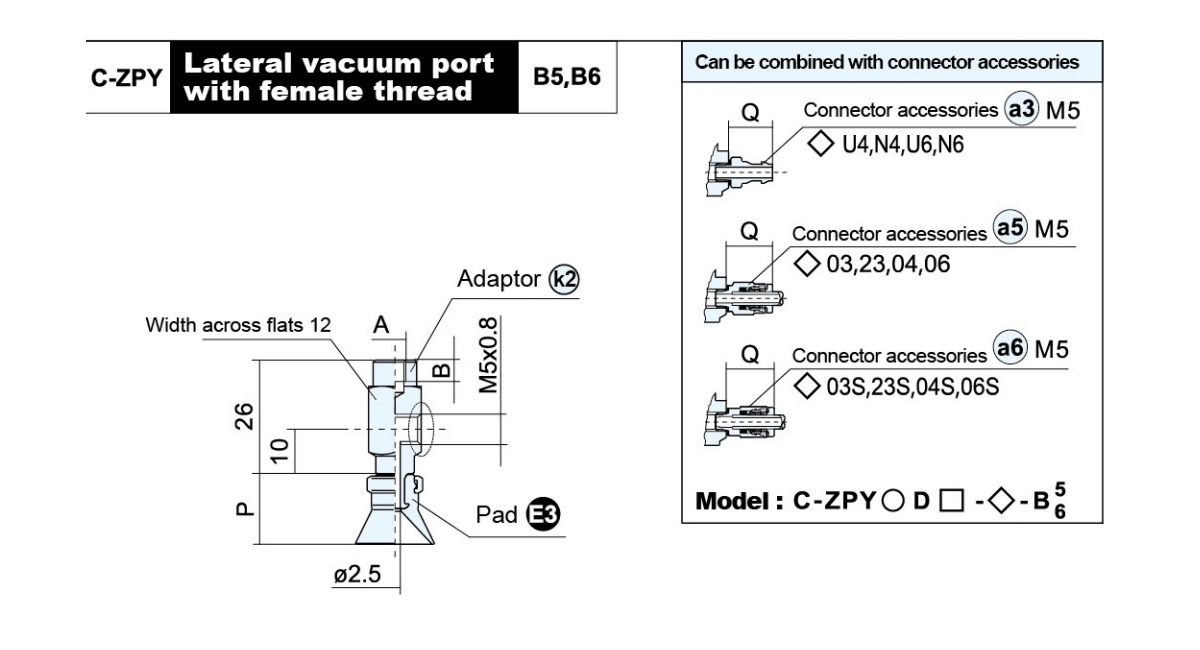

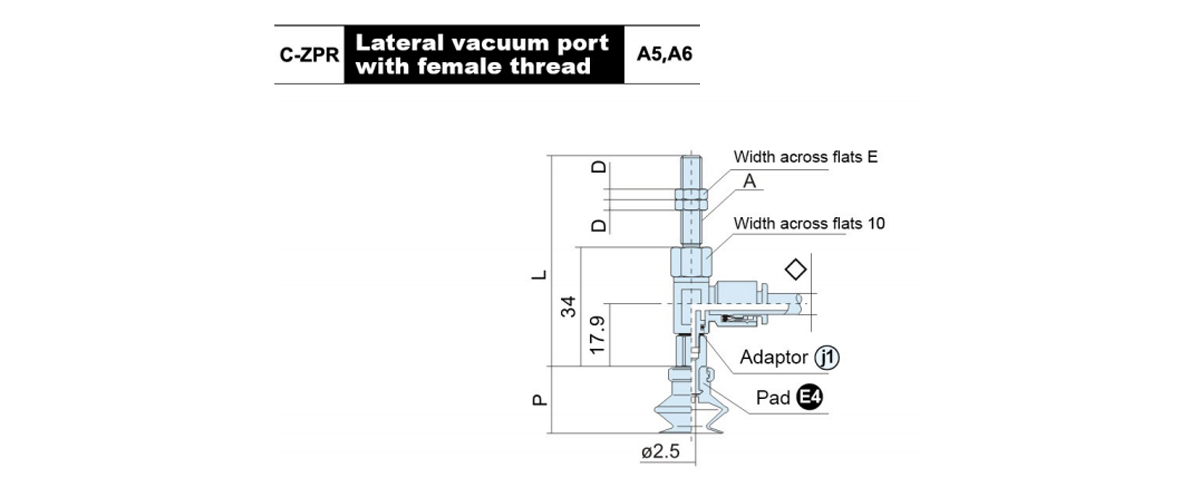

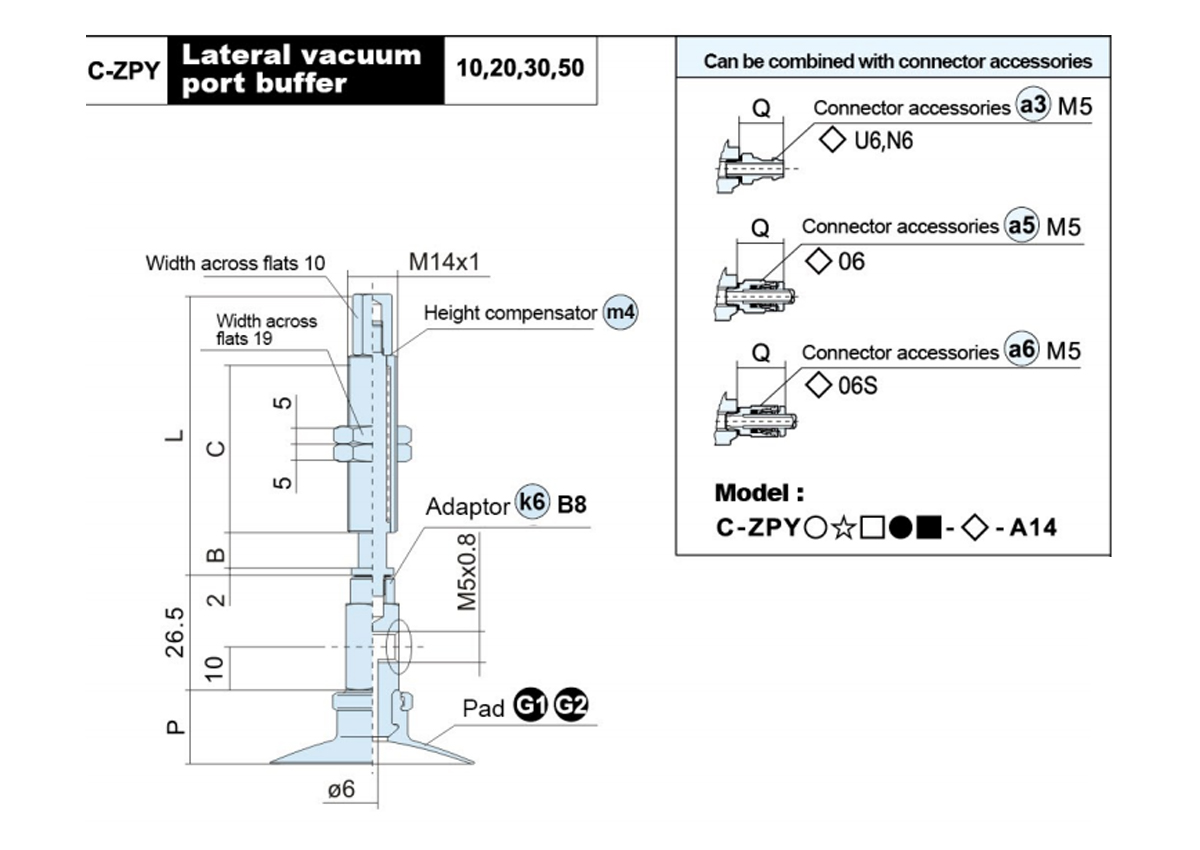

주요 치수(mm)
문의하기

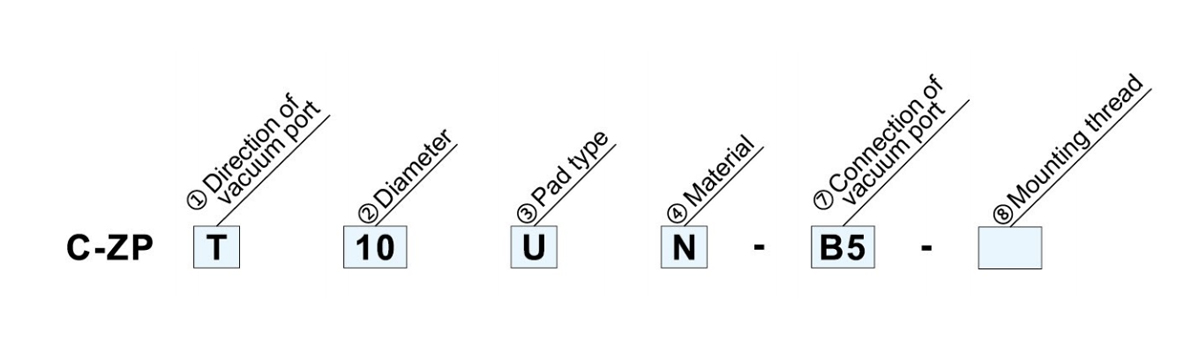

④소재□

② 직경(mm)○/ ③흡입형☆

전자*

F*

지*

N

NBR

09

10

13

14

16

20

25

30

32

40

50

S

실리콘

Ø9

Ø10

Ø13

Ø14

Ø16

Ø20

Ø25

Ø30

Ø32

Ø40

Ø50

U

플랫

-

●

-

●

-

●

C

갈비뼈 포함

-

●

-

●

-

●

D

깊은

-

●

-

●

-

●

-

●

-

①방향
진공 포트

B

2 벨로우즈

-

●

-

●

-

●

J

3/4 벨로우즈

●

-

●

-

●

-

T

수직

7진공 포트 연결

외부 스레드

A5

M5×0.8

●

-

A6

M6×1.0

●

A8

M8×1.0

-

●

A01

R1/8

●

내부 스레드

B5

M5×0.8

●

-

B6

M6×1.0

●

B8

M8×1.25

-

●

B01

Rc1/8

●

R

측면

빠른 커넥터

04

Ø4

●

06

Ø6

●

08

Ø8

-

○

●

⑧마운팅 스레드

외부 스레드

A5

M5×0.8

●

-

A6

M6×1.0

●

A8

M8×1.0

-

●

·

내부 스레드

B5

M5×0.8

●

-

B6

M6×1.0

●

B8

M8×1.25

-

●

Y

⑦ 진공 포트 연결 ◇

B5

M5×0.8

●

바브 피팅

U4

Φ4 PU 호스

●

-

N4

Ø4 나일론 호스

●

-

U6

Ø6 PU 호스

●

N6

Φ6 나일론 호스

●

외부 육각형 퀵 커넥터

03

Ø3

●

-

23

Ø3.2

●

-

04

Ø4

●

-

06

Ø6

●

내부 육각형 퀵 커넥터

03S

Ø3

●

-

23S

Ø3.2

●

-

04S

Ø4

●

-

06S

Ø6

●

⑧ 마운팅 스레드

외부
실

A5

M5×0.8

●

-

A6

M6×1.0

●

A8

M8×1.0

-

●

내부 스레드

B5

M5×0.8

●

-

B6

M6×1.0

●

B8

M8×1.25

-

●

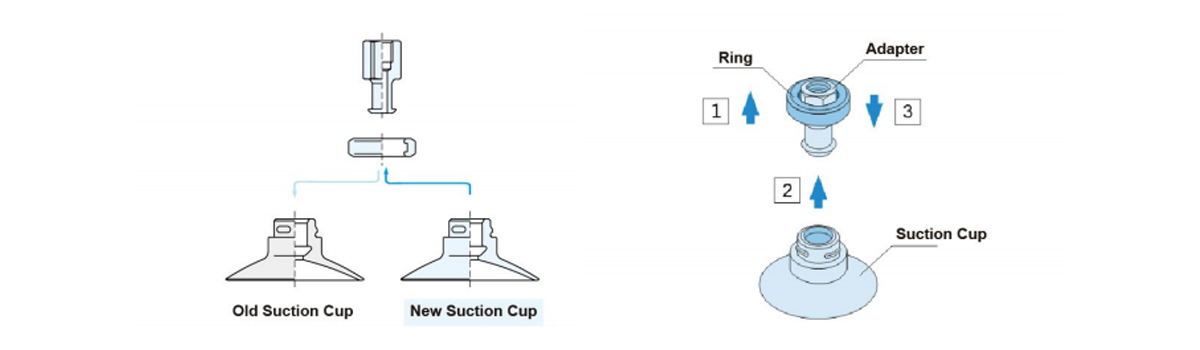

흡입 컵은 고무 부품이므로 노화가 불가피합니다. 노화 속도는 사용 방법, 환경, 온도 조건 등의 요인에 따라 달라집니다. 정기적인 유지 관리를 수행해야 합니다. 손상, 쪼개짐, 갈라짐 또는 마모가 발생한 경우 흡착컵을 즉시 교체해야 합니다. 흡착컵을 교체할 때 흡착컵의 외부 표면을 손상시키지 마십시오.

단계:

1. 반지를 빼세요.
2. 어댑터를 떼어냅니다.
3. 새 흡착컵을 링에 고정한 후 새 흡착컵과 함께 어댑터를 삽입하세요.

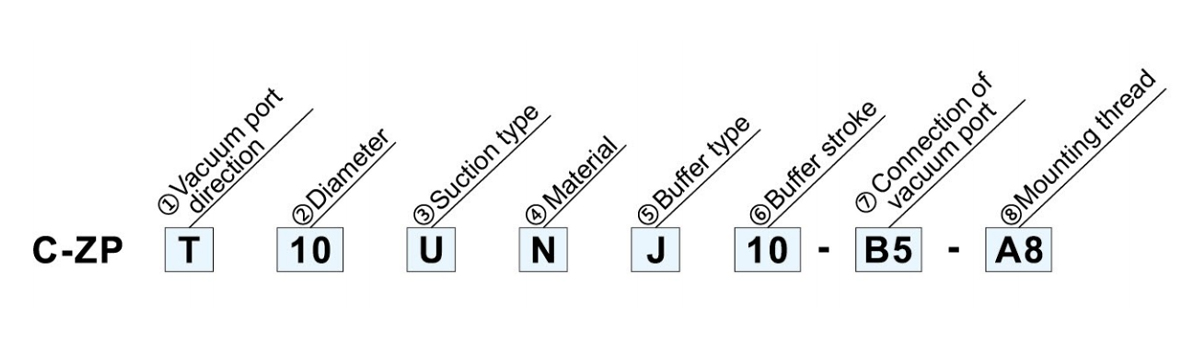

④소재□

②직경(mm)○/ ③흡입형☆

전자*

F*

지*

N

NBR

09

10

13

14

16

20

25

30

32

40

50

S

실리콘

Ø9

Ø10

Ø13

Ø14

Ø16

Ø20

Ø25

Ø30

Ø32

Ø40

Ø50

U

플랫

-

●

-

●

-

●

⑤ 버퍼 유형●

C

리브 포함

-

●

-

●

-

●

J

회전식

D

깊은

●

-

●

-

●

-

●

-

K

회전할 수 없음

B

벨로우즈 2개

●

-

●

-

●

J

3/4 벨로우즈

●

-

●

-

·

●

-

⑥버퍼 스트로크■

10

10 mm

●

20

20 mm

●

30

30 mm

●

①진공 포트 연결

40

40 mm

●

-

50

50 mm

●

T

수직

7진공 포트 연결 ◇

내부 스레드

B5

M5×0.8

●

B01

Rc1/8

-

●

바브 피팅

U4

中4 PU 호스

●

-

N4

Φ4 나일론 호스

●

-

U6

Ø6 PU 호스

●

N6

中6 나일론 호스

●

외부 육각형 퀵 커넥터

03

Ø3

●

-

23

Ø3.2

●

-

04

Ø4

●

-

06

Ø6

●

R

내부 육각형 퀵 커넥터

03S

Ø3

●

-

23S

Ø3.2

●

-

04S

Ø4

●

-

06S

Ø6

●

측면

퀵 커넥터

04

Ø4

●

-

06

Ø6

●

08

Ø8

-

●

Y

내부

B5

M5×0.8

●

바브 피팅

U4

Φ4 PU 호스

●

-

N4

Φ4 나일론 호스

●

一

U6

Ø6 PU 호스

●

N6

Φ6 나일론 호스

●

외부 육각형 퀵 커넥터

03

Ø3

●

-

23

Ø3.2

●

-

04

Ø4

●

-

06

Ø6

●

내부 hexagon quick conector

03S

Ø3

●

-

23S

Ø3.2

●

-

04S

Ø4

●

-

06S

Ø6

●

⑧마운팅 스레드

외부 thread

A10

M10×1.0

●

-

A14

M14×1.0

-

●

장착 스레드	장착 Nut 조임 토크(N.m)	스프링 완충력(N)
장착 스레드	장착 Nut 조임 토크(N.m)	0 스트로크	풀 스트로크
M10×1.0	2.5-3.5	1.0	3.0
M14×1.0	6.5-7.5	2.0	5.0

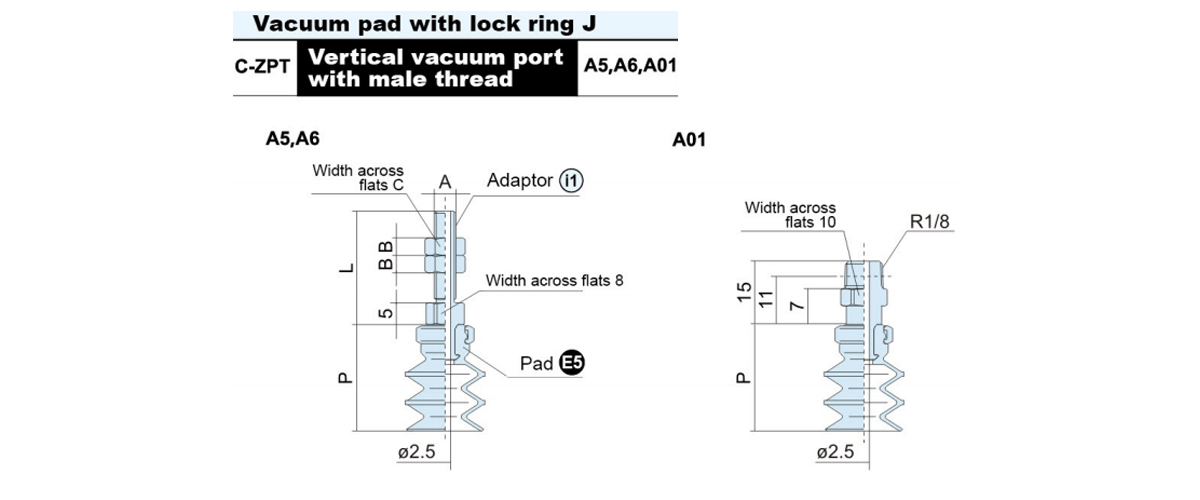

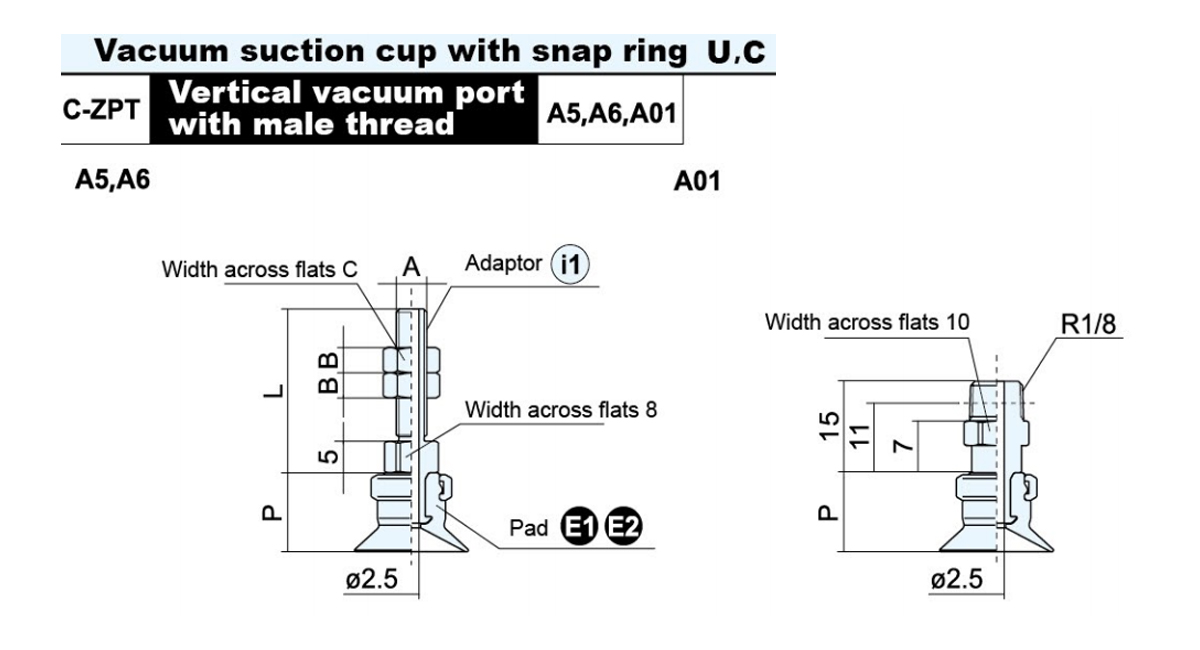

Model	A	B	C	L	○Pad diameter		P	Adaptor Model
					10	13	16
C-ZPT○☆□-A5	M5×0.8	7	4	26	12	12	12.5	ZPT2-A5
C-ZPT○☆□-A6	M6×1.0	8	3	31				ZPT2-A6
C-ZPT○☆□-A01		-		-				ZPT2-A01
○ Symbol of pad diameter:10,13,16 ☆ Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

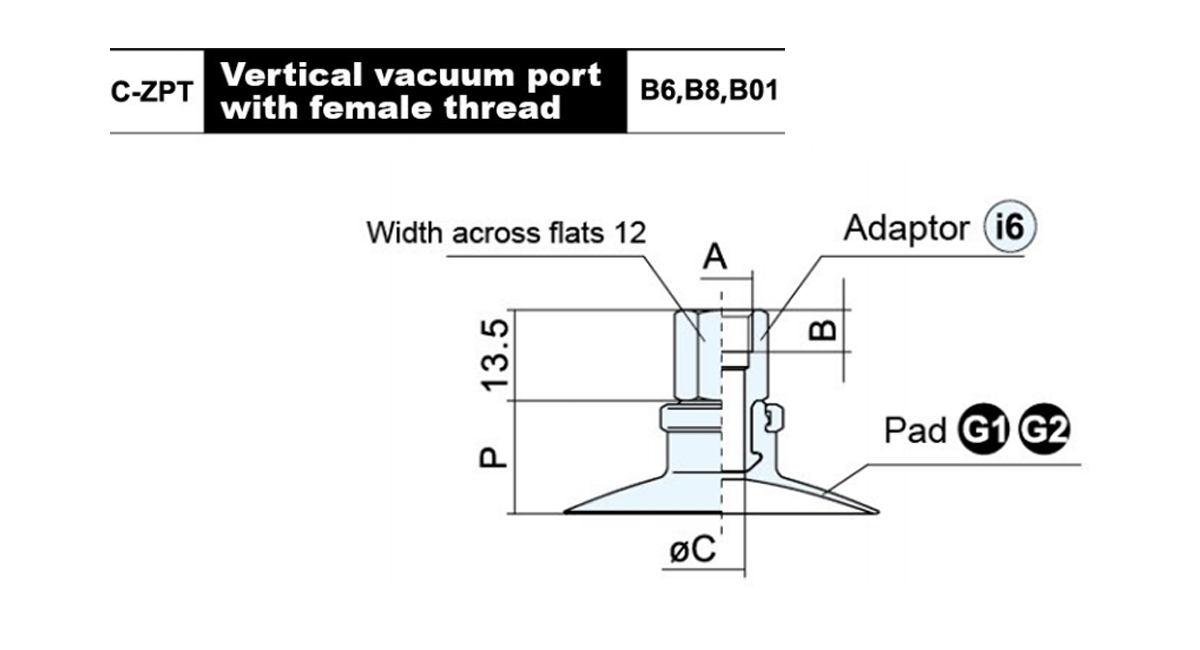

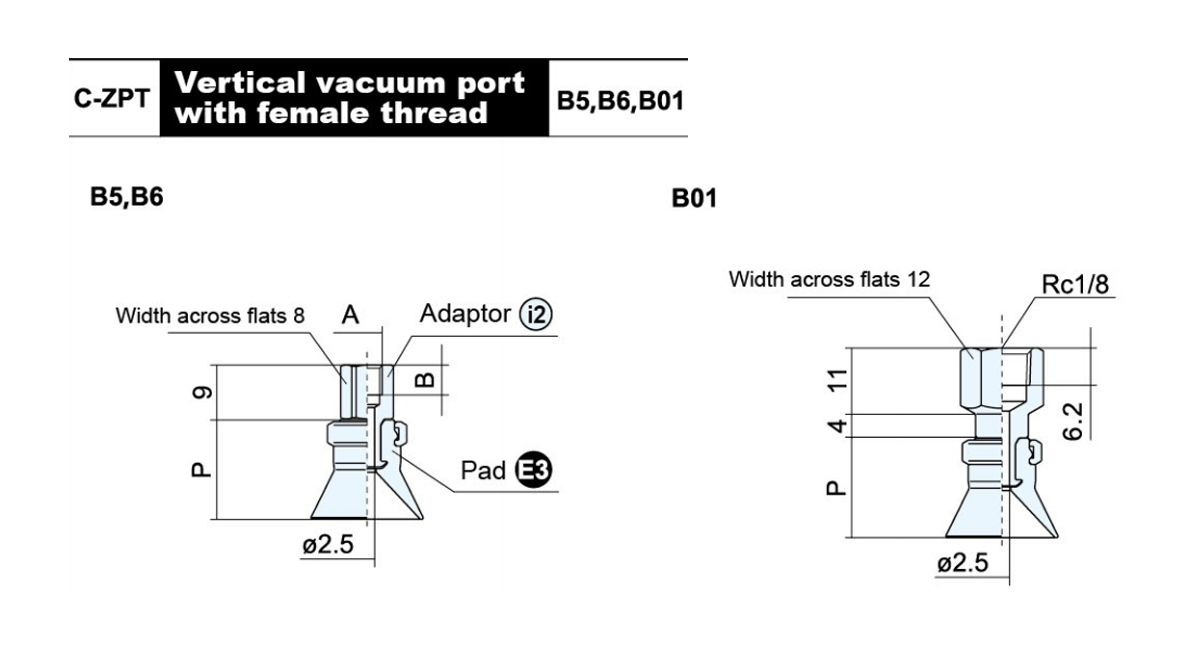

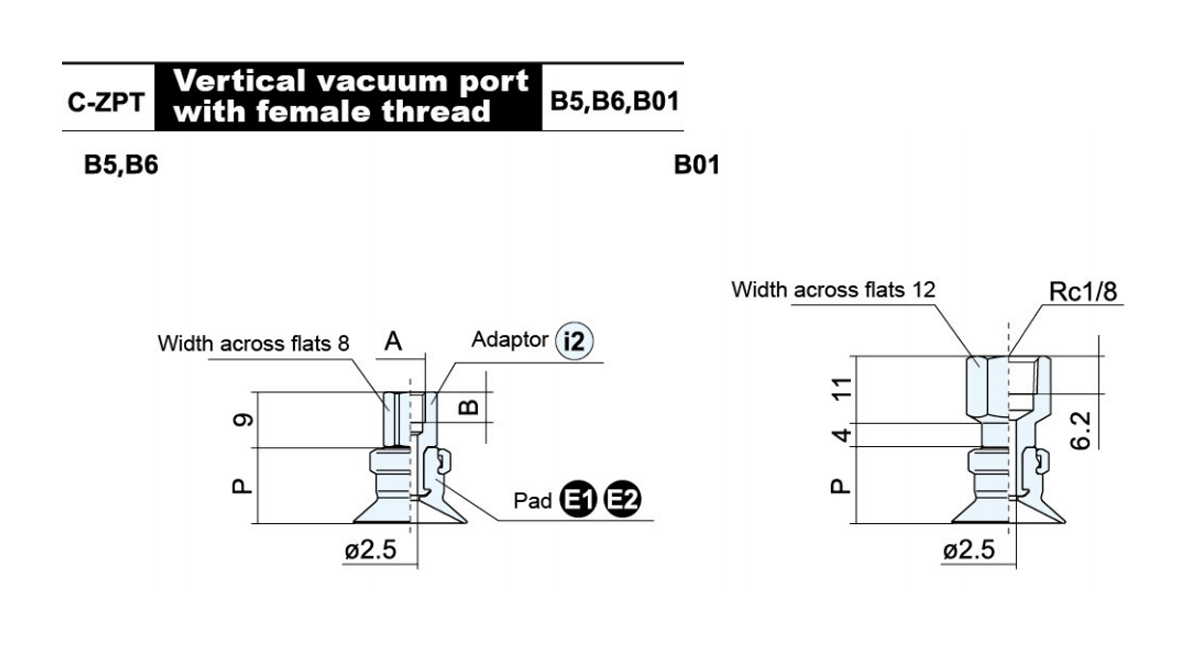

Model	A	B	○Pad diameter		P	Adaptor Model
			10	13	16
C-ZPT○☆□-B5	M5×0.8	5	12	12	12.5	ZPT2-B5
C-ZPT○☆□-B6	M6×1.0	6				ZPT2-B6
C-ZPT○☆□-B01		-				ZPT2-B01
○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C) □ Material:NBR(N),Silicone(S)

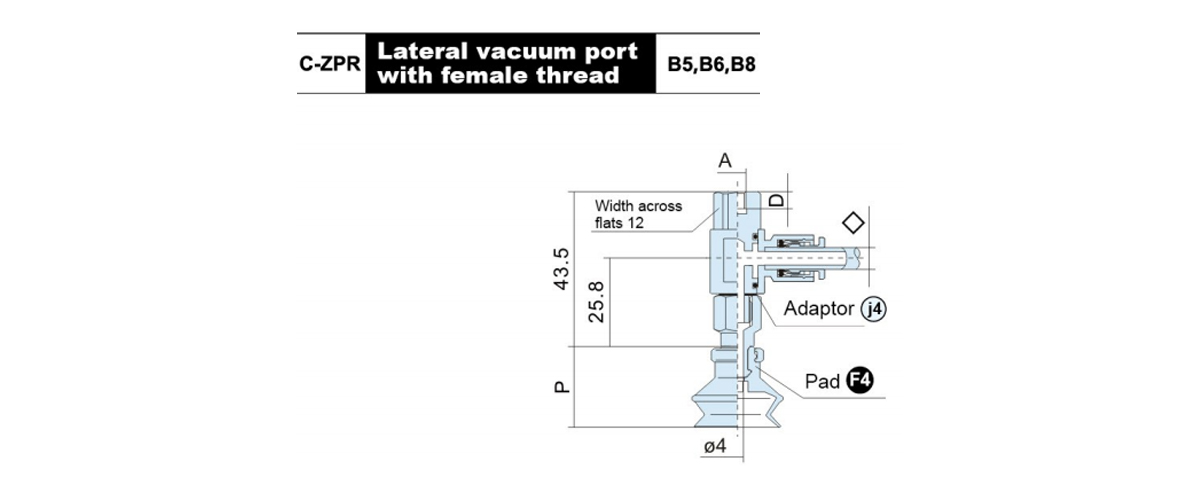

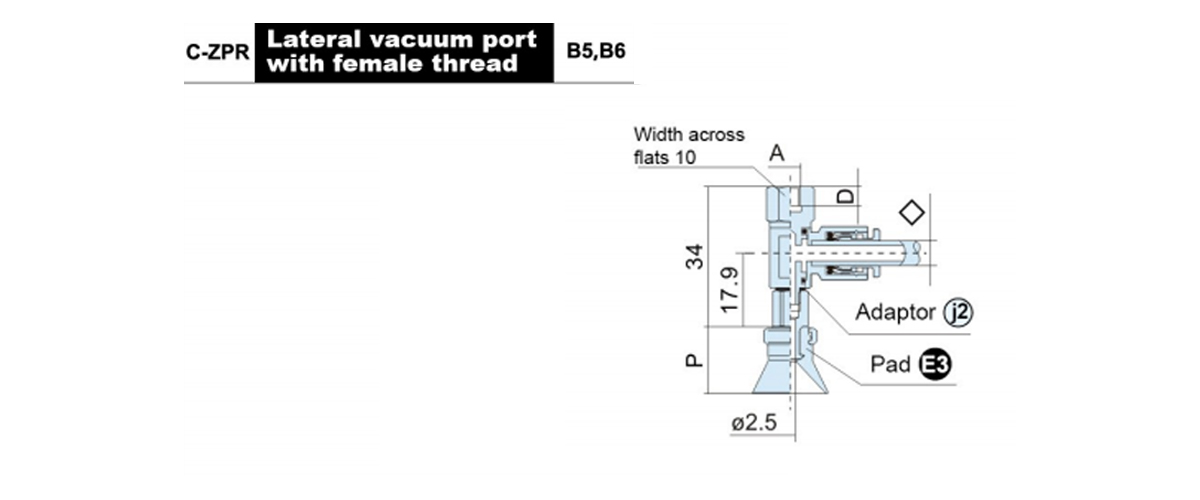

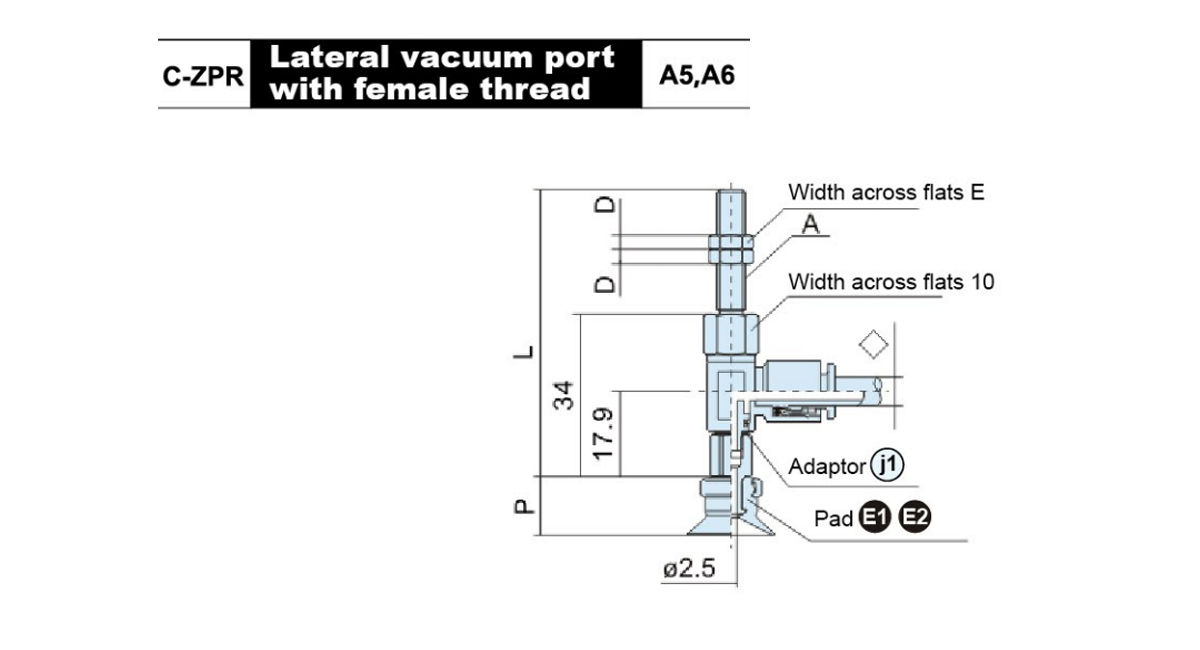

Model	A	D	E	L	○Pad diameter P			Adaptor Model
					10	13	16

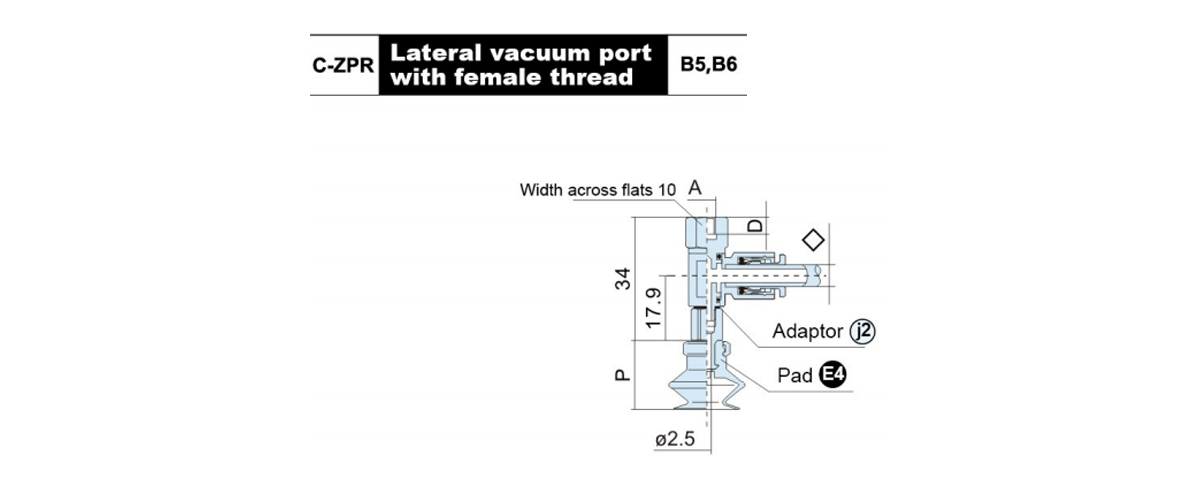

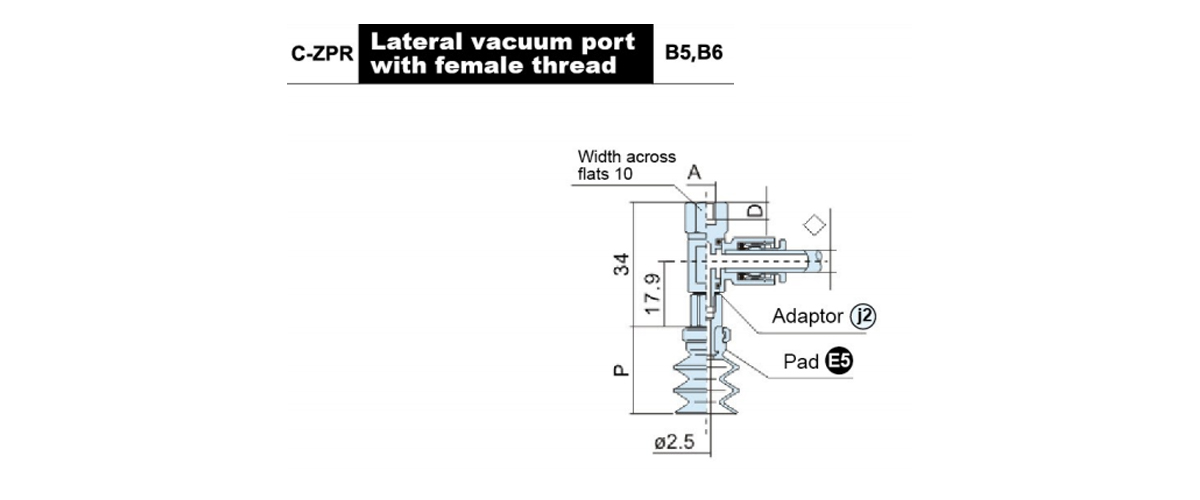

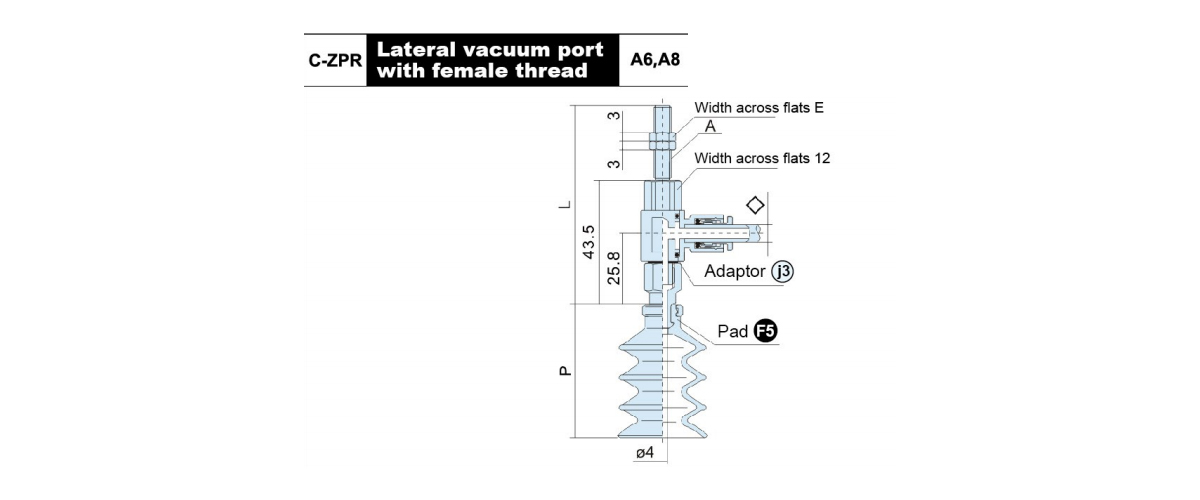

C-ZPR○☆口 - ◇ -A5	M5×0.8	4	7	55	12	12	12.5	ZPR2-◇-A5
C-ZPR○☆□-◇-A6	M6×1.0	3	8	60				ZPR2-◇-A6
○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06

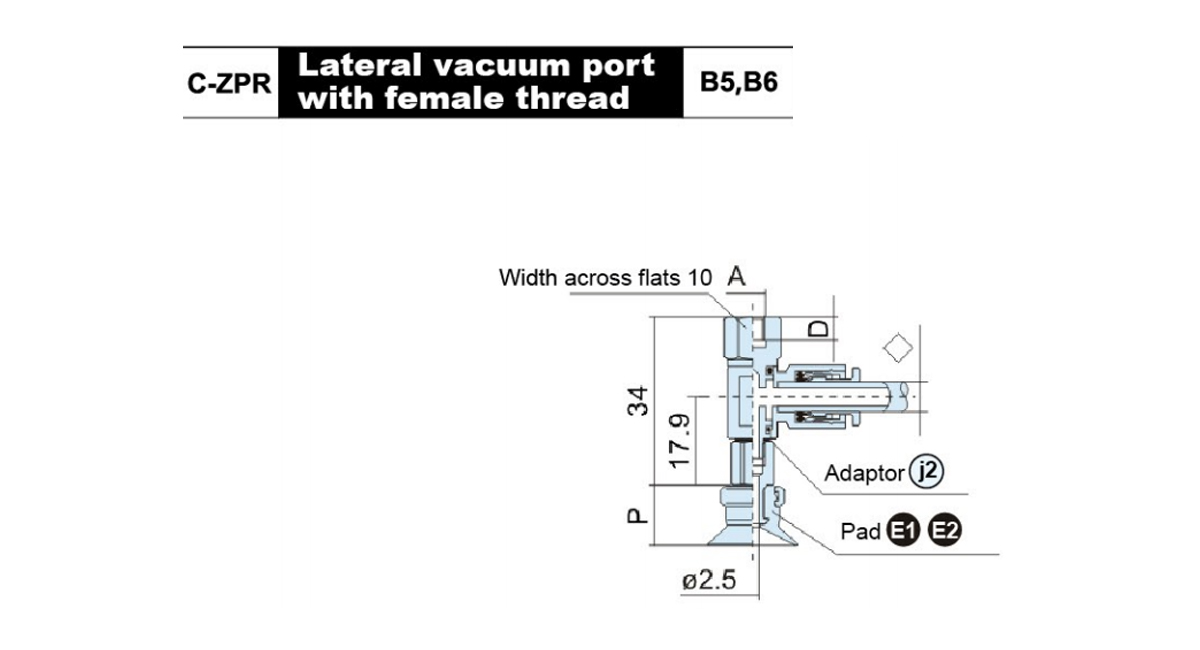

Model	A	D	○Pad diameter		P	Adaptor Model
			10	13	16
C-ZPR○☆□-◇-B5	M5×0.8	5	12	12	12.5	ZPR2-◇-B5
C-ZPR○☆□-◇-B6	M6×1.0	6				ZPR2-◇-B6
○Symbol of pad diameter:10,13,16 □Material:NBR(N),Silicone(S) ☆ Pad type:Flat(U),with ribs(C) ◇Vacuum port connection:04,06

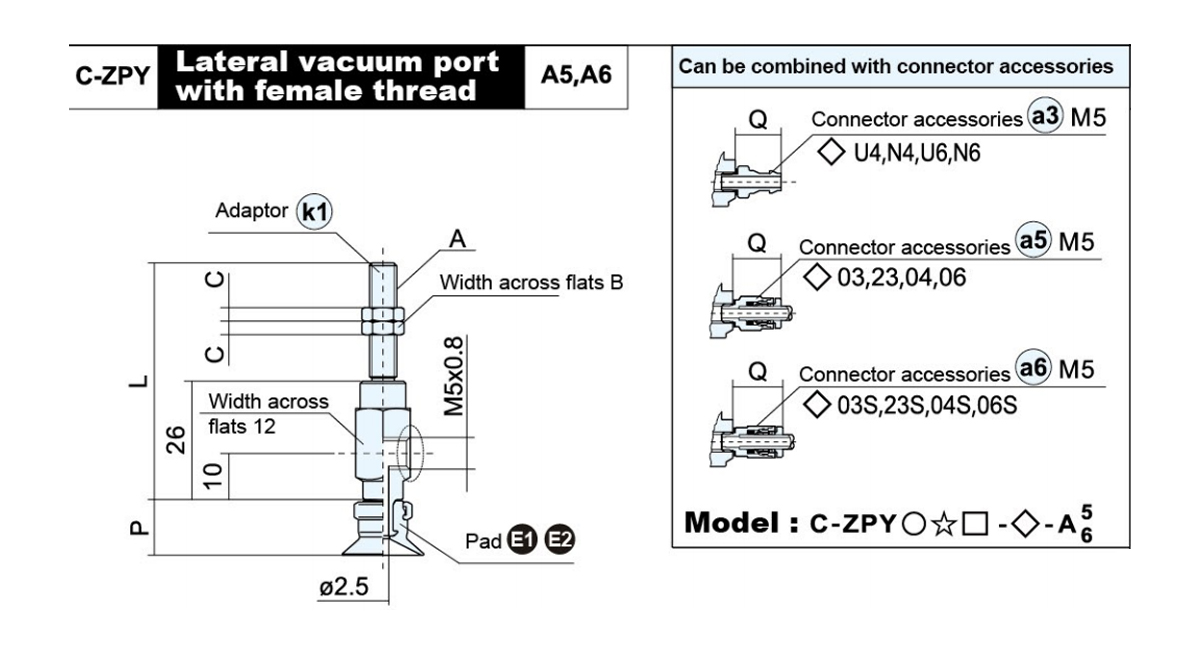

Model	A	B	C	L	○Pad diameter P			Adaptor Model
					10	13	16

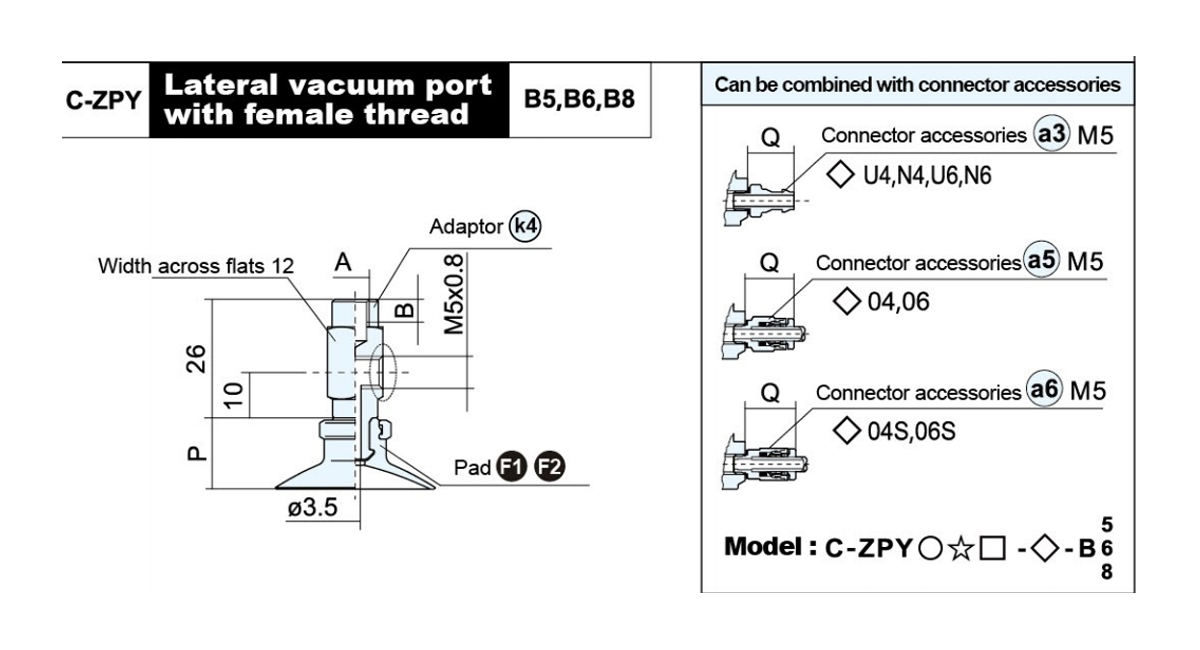

C-ZPY○☆□-B5-A5	M5×0.8	7	4	47	12	12	12.5	ZPY2-B5-A5
C-ZPY○☆□-B5-A6	M6×1.0	8	3	52				ZPY2-B5-A6
○Symbol of pad diameter:10,13,16 ☆ Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

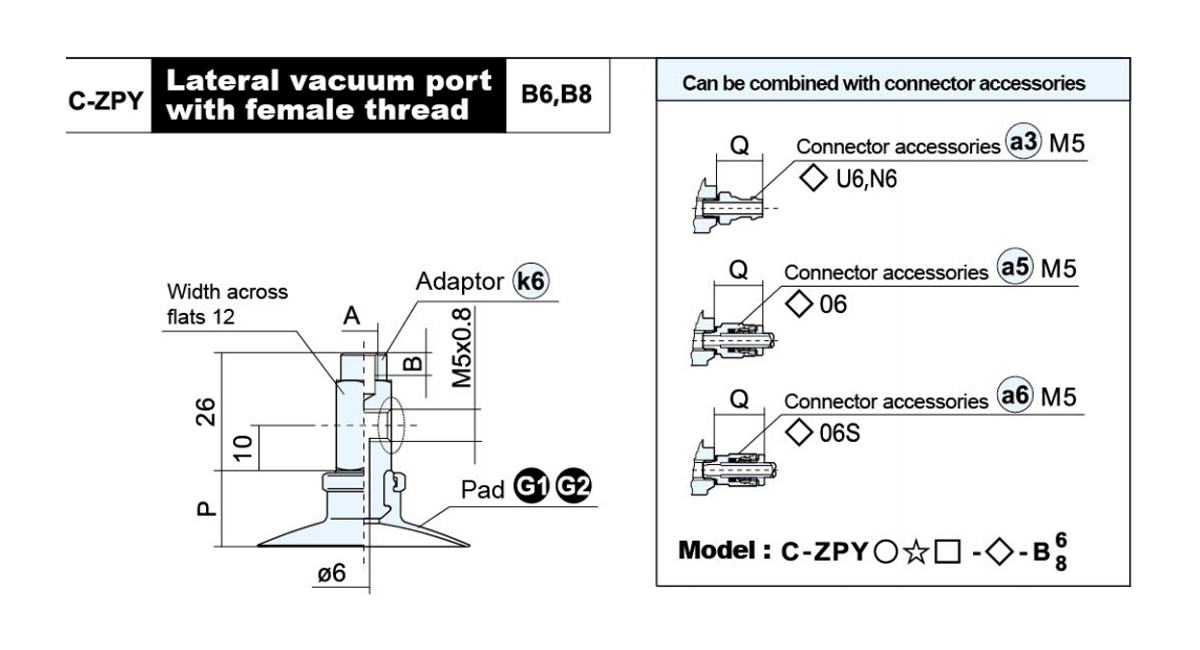

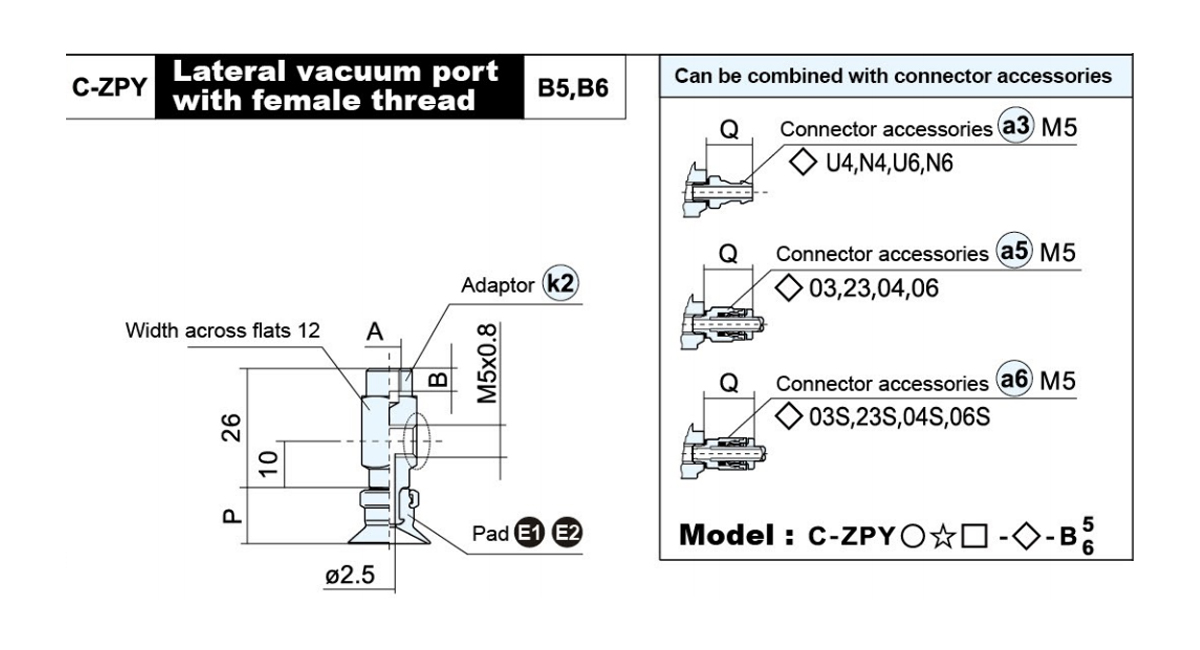

Model	A	B	○Pad diameter		P	Adaptor Model
			10	13	16
C-ZPY○☆□-B5-B5	M5×0.8	5	12	12	12.5	ZPY2-B5-B5
C-ZPY○☆□-B5-B6	M6×1.0	6				ZPY2-B5-B6
○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

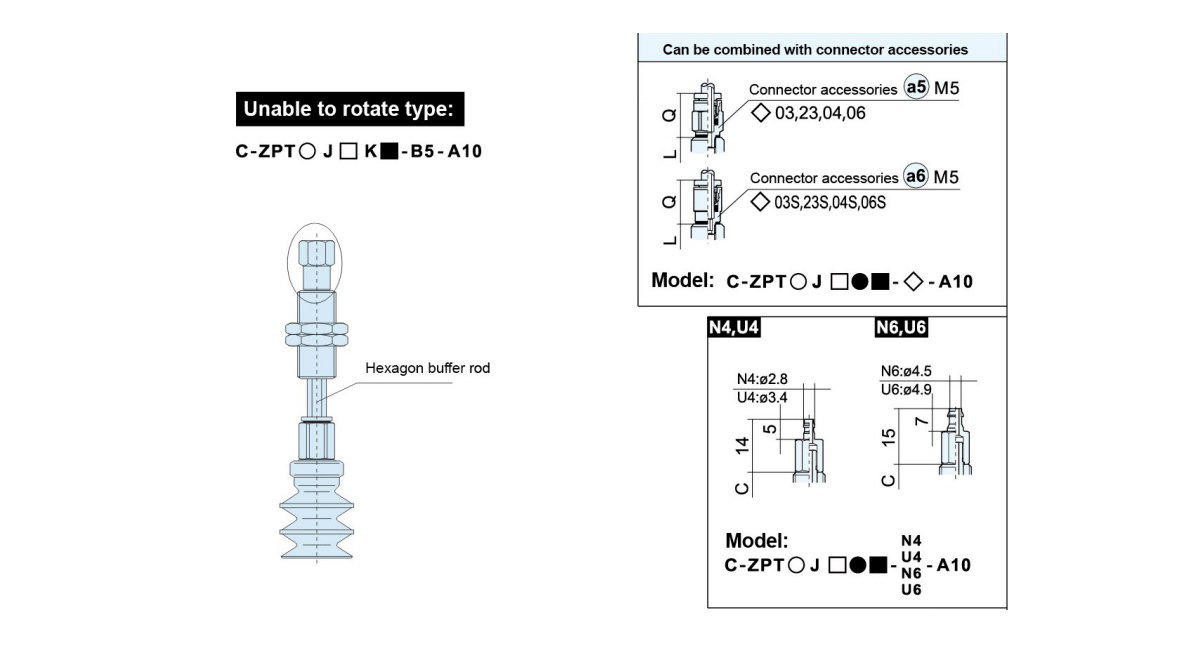

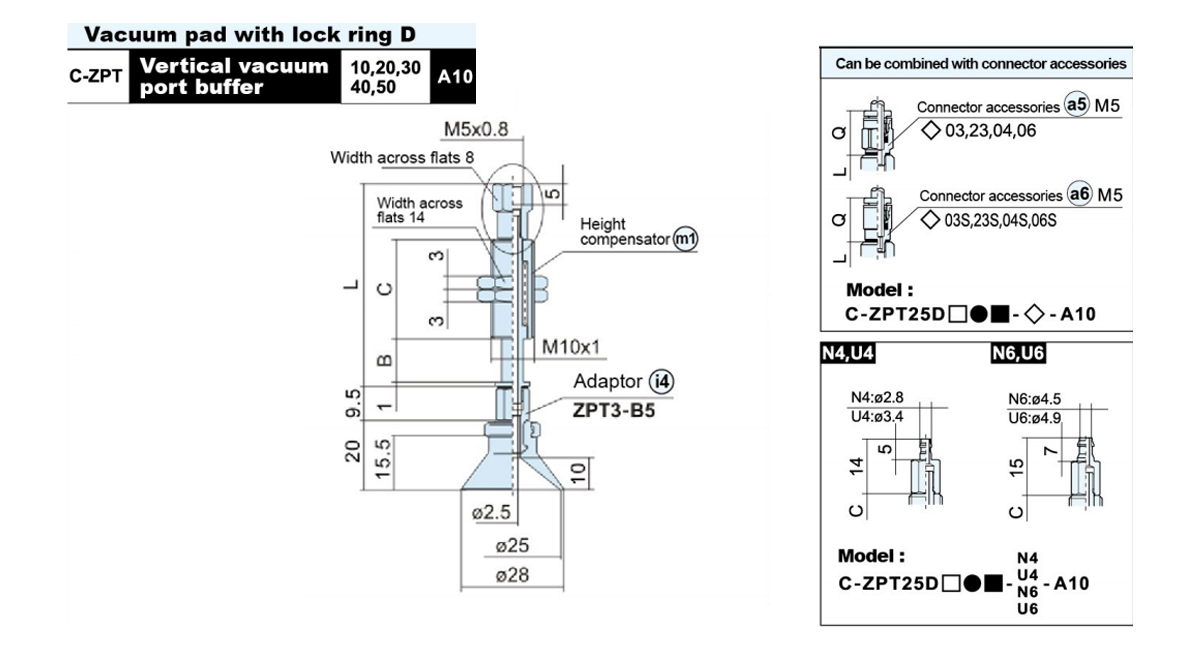

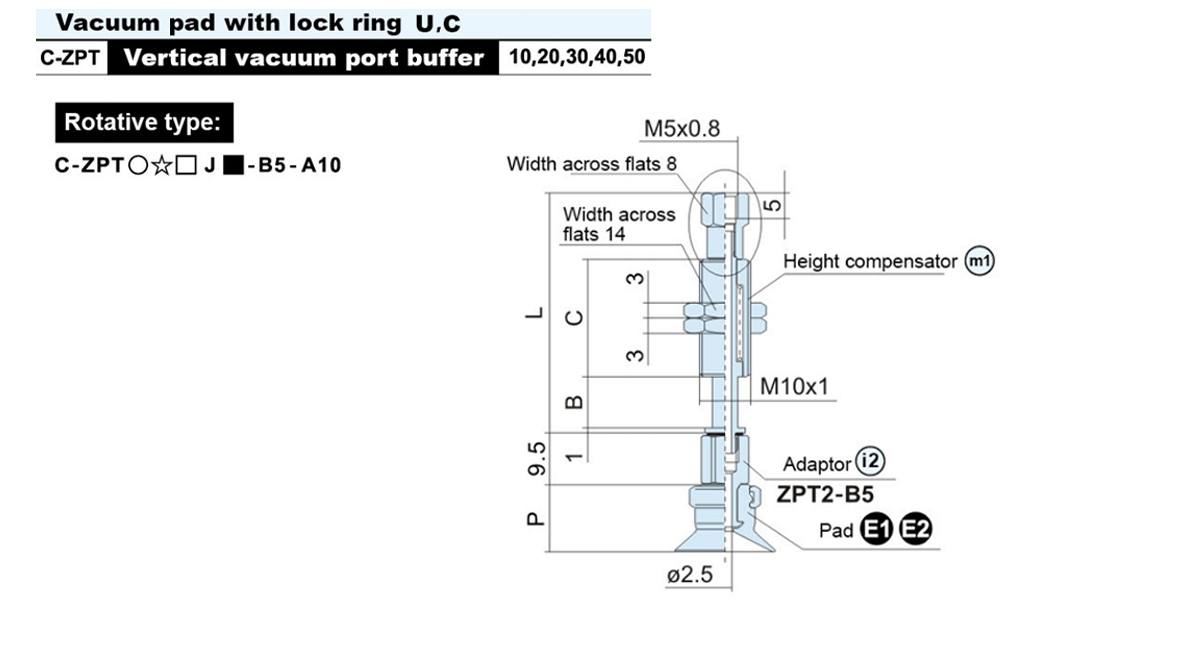

Model	B	C	L	○Pad Diameter P			m1 i2 Bumper Support Model
				10	13	16
C-ZPT○☆□J10-B5-A10	10	23	47	12	12	12.5	ZPT2-J10-B5-A10
C-ZPT○☆□J20-B5-A10	20	51	85				ZPT2-J20-B5-A10
C-ZPT○☆□J30-B5-A10	30		95				ZPT2-J30-B5-A10
C-ZPT○☆□J40-B5-A10	40	77	131				ZPT2-J40-B5-A10
C-ZPT○☆□J50-B5-A10	50		141				ZPT3-J50-B5-A10
○ Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ☆ Pad type:Flat(U),with ribs(C) ● Height compensator type:Rotative(J),Unable to rotate(K)

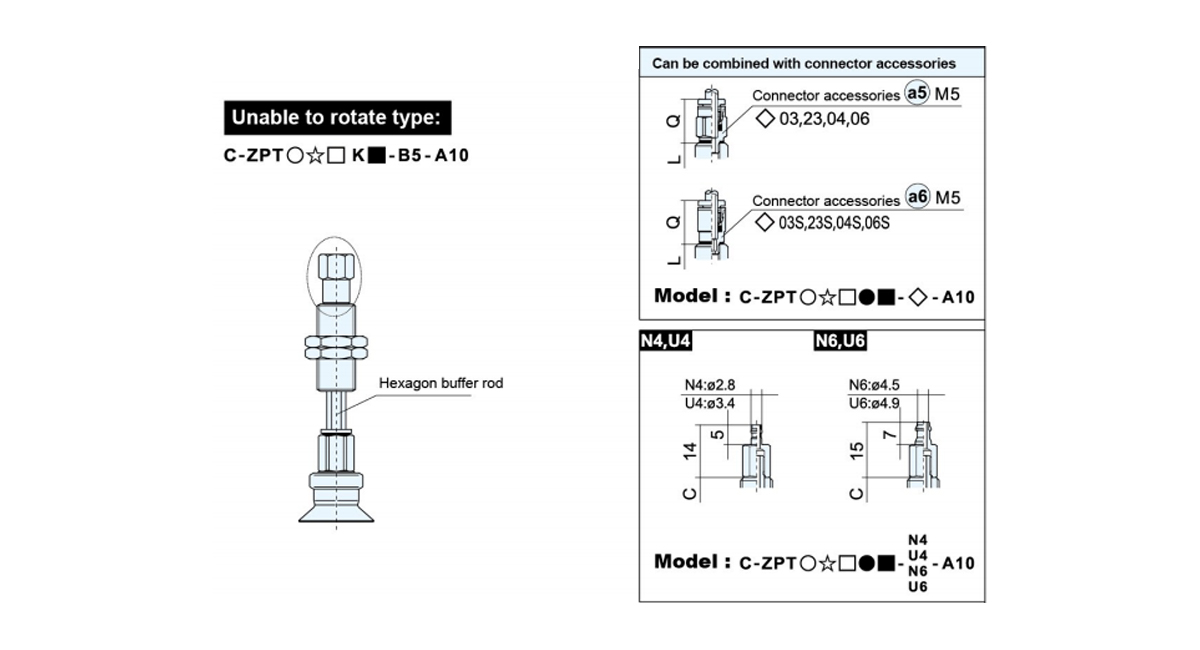

Model	B	C	L	○Pad Diameter P			m1 i2 Bumper Support Model
				10	13	16
C-ZPT○☆□K10-B5-A10	10	23	47	12	12	12.5	ZPT2-K10-B5-A10
C-ZPT○☆□K20-B5-A10	20	51	85				ZPT2-K20-B5-A10
C-ZPT○☆□K30-B5-A10	30		95				ZPT2-K30-B5-A10
C-ZPT○☆□K40-B5-A10	40	77	131				ZPT2-K40-B5-A10
C-ZPT○☆□K50-B5-A10	50		141				ZPT3-K50-B5-A10
○ Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ☆ Pad type:Flat(U),with ribs(C) ● Height compensator type:Rotative(J),Unable to rotate(K)

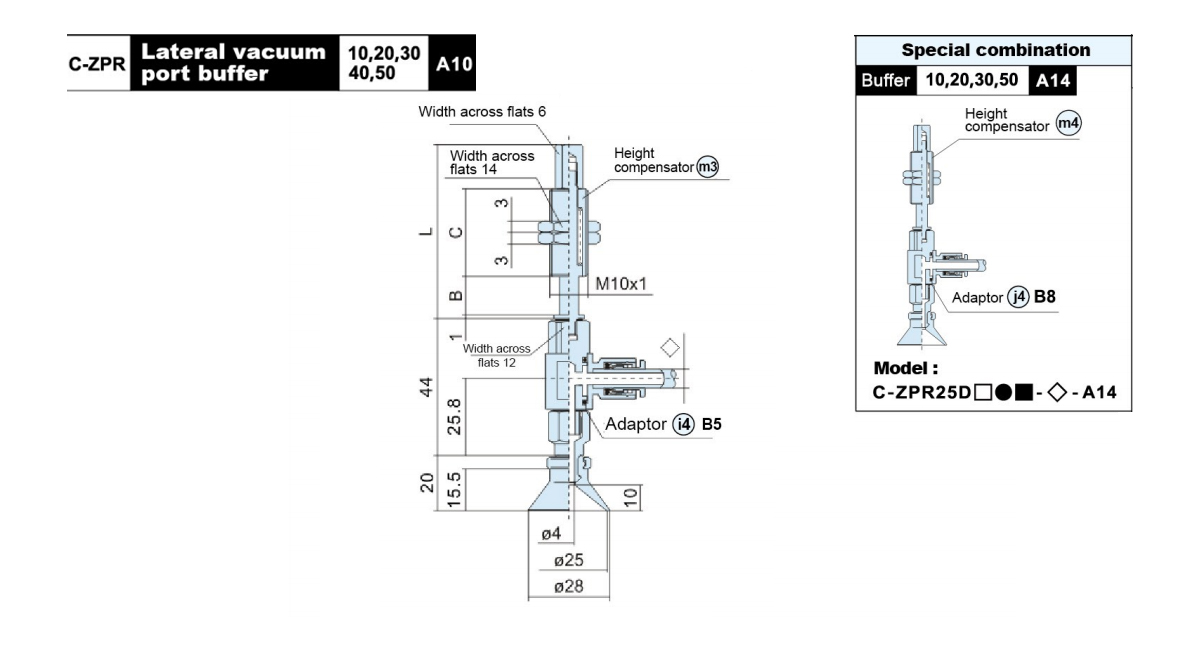

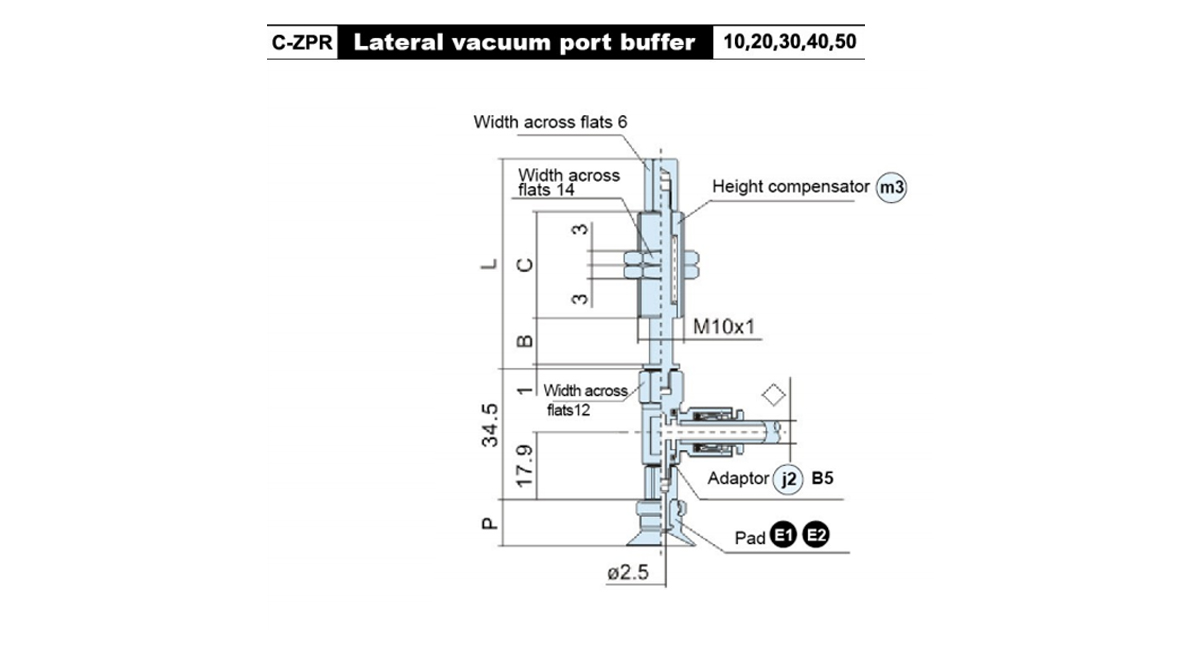

Model	B	C	L	○Pad Diameter P			m3 j2 Bumper Support Model
				10	13	16

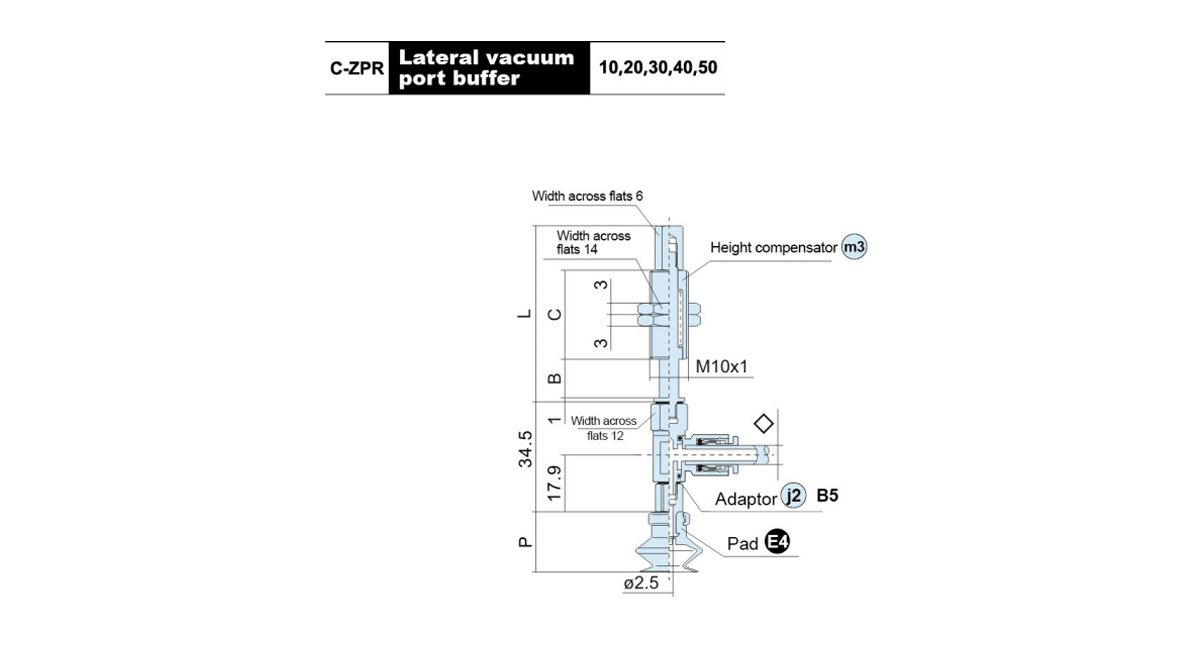

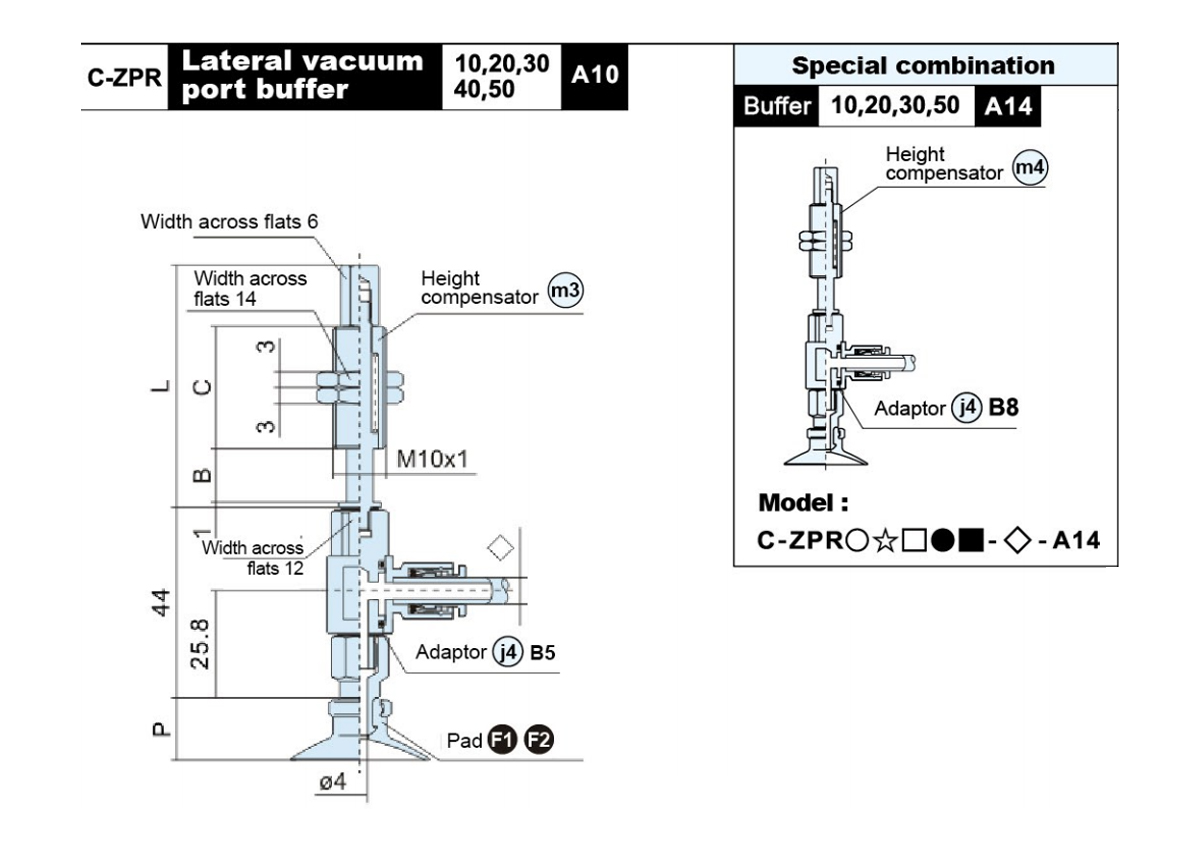

C-ZPR○☆□●10-◇-A10	10	23	45	12	12	12.5	ZPR2-●10-◇-A10
C-ZPR○☆□●20-◇-A10	20	51	83				ZPR2-●20-◇-A10
C-ZPR○☆□●30-◇-A10	30		93				ZPR2-●30-◇-A10
C-ZPR○☆□●40-◇-A10	40	77	129				ZPR2-●40-◇-A10
C-ZPR○☆□●50-◇-A10	50		139				ZPR2-●50-◇-A10
○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ☆ Pad type:Flat(U),with ribs(C) ◇Vacuum port connection:04,06 ● Height compensator type:Rotative(J), Unable to rotate(K)

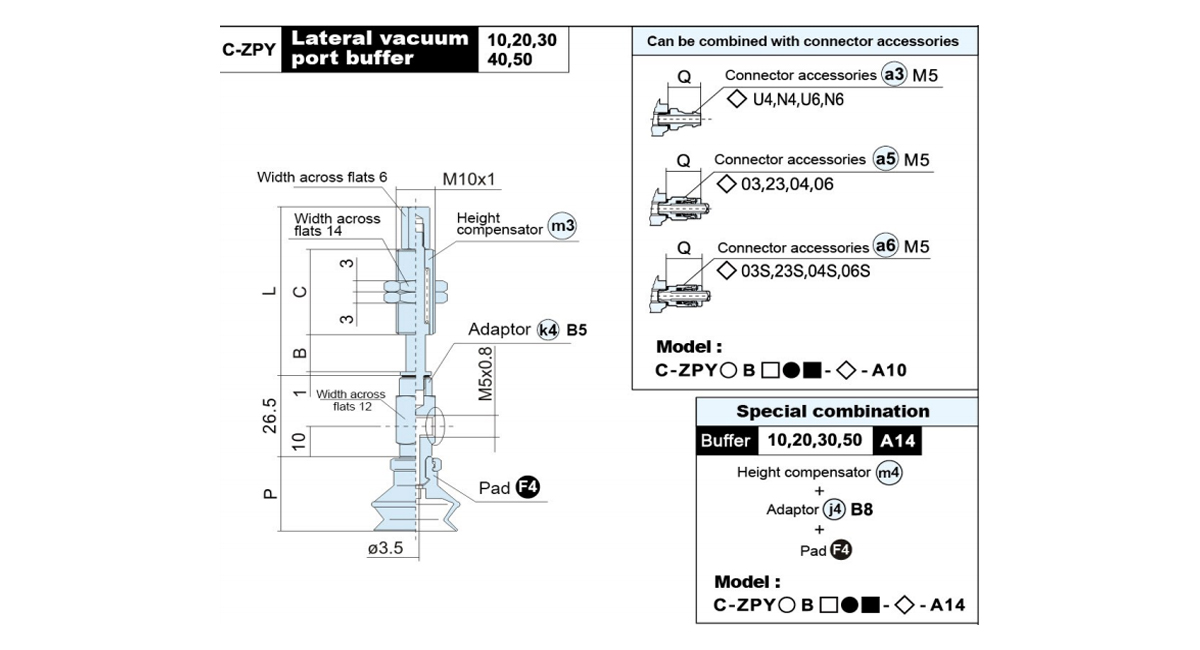

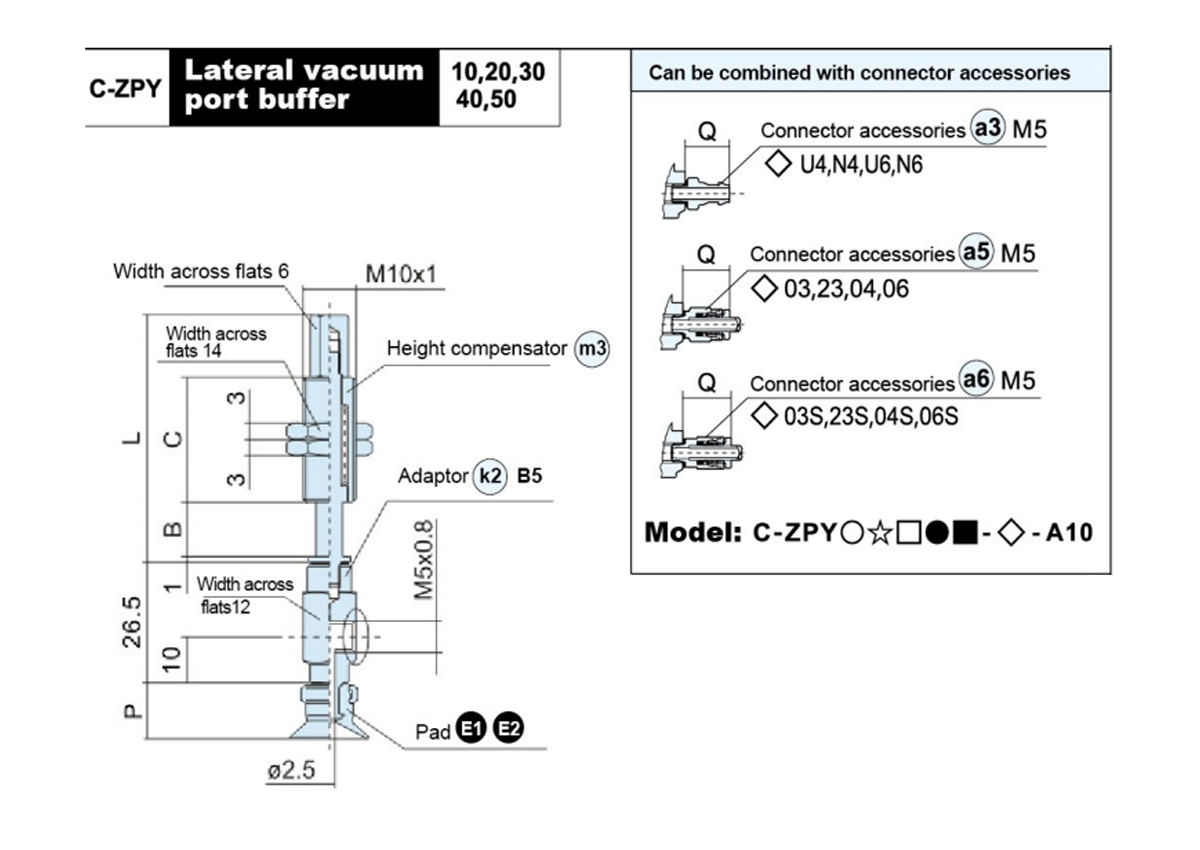

Model	B	C	L	○Pad Diameter			P	m3 j⑫ Bumper Support Model
				10	13	16

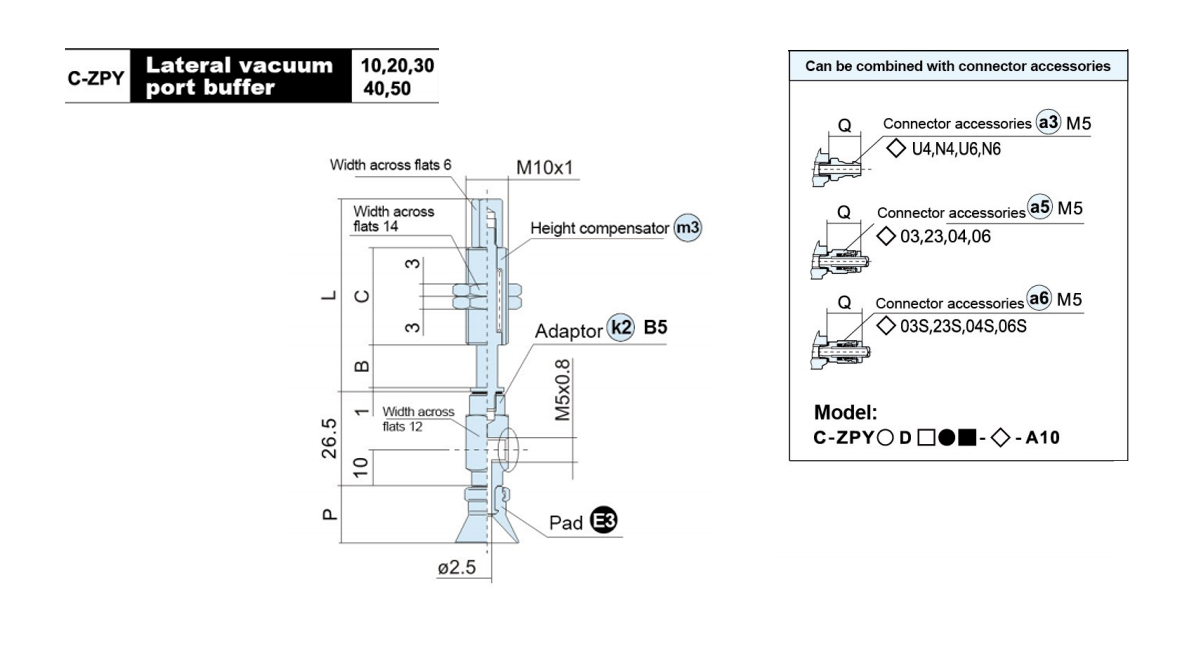

C-ZPY○☆□●10-B5-A10	10	23	45	12	12	12.5		ZPY2-●10-B5-A10
C-ZPY○☆口●20-B5-A10	20	51	83					ZPY2-●20-B5-A10
C-ZPY○☆□●30-B5-A10	30		93					ZPY2-●30-B5-A10
C-ZPY○☆□●40-B5-A10	40	77	129					ZPY2-●40-B5-A10
C-ZPY○☆□●50-B5-A10	50		139					ZPY2-●50-B5-A10
○ Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ☆ Pad type:Flat(U),with ribs(C) ● Height compensator type:Rotative(J), ■ Buffer stroke(mm):10,20,30,40,50 Unable to rotate(K)

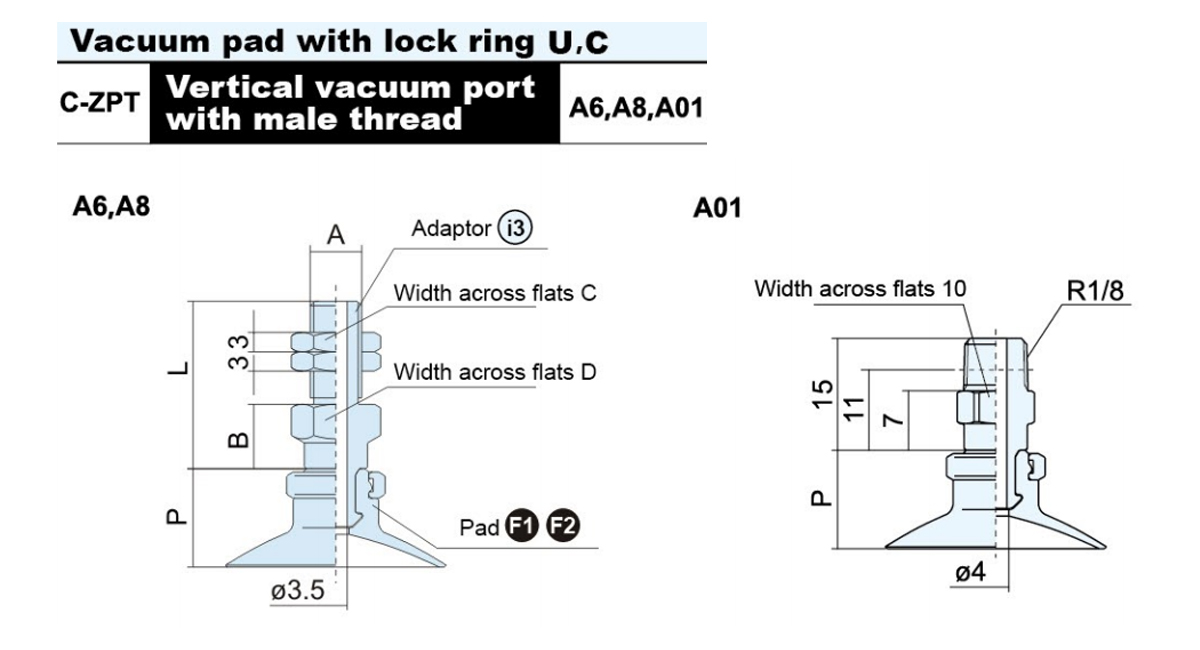

Model	A	B	C	D	L	○ Pad diameter		P	Adaptor Model
						20	25	32

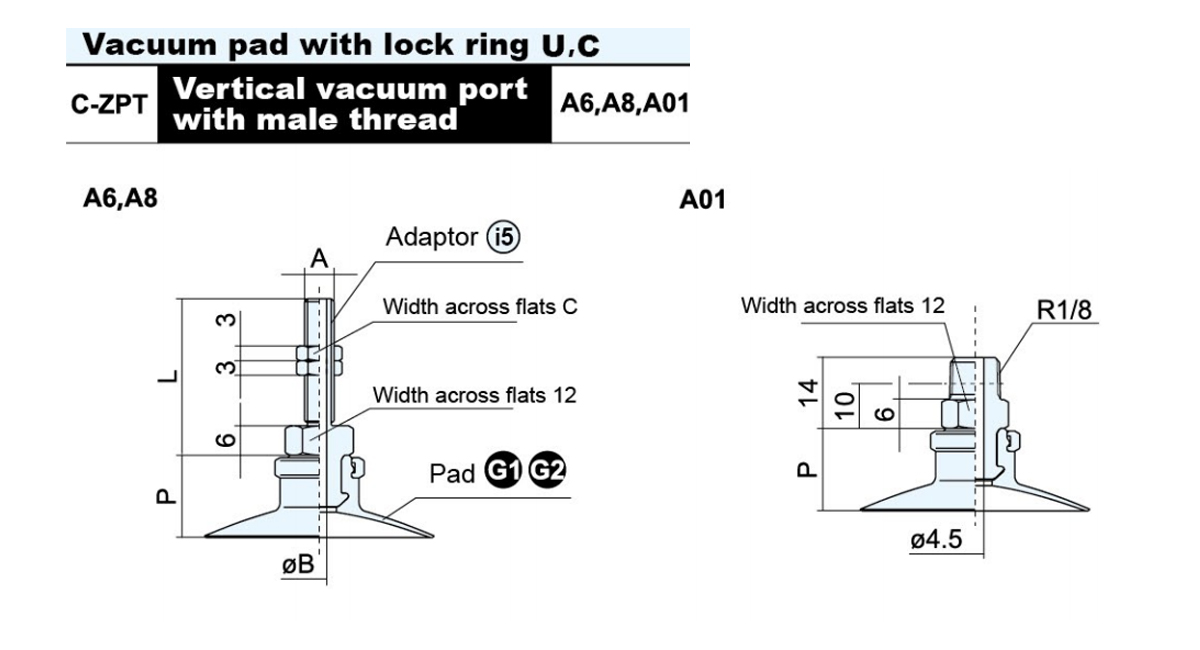

C-ZPT○☆□-A6	M6×1.0	5	8	8	31	14	14	14.5	ZPT3-A6
C-ZPT○☆□-A8	M8×1.0	10	12	12	26				ZPT3-A8
C-ZPT○☆□-A01	-	-	-	-	-				ZPT3-A01
○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

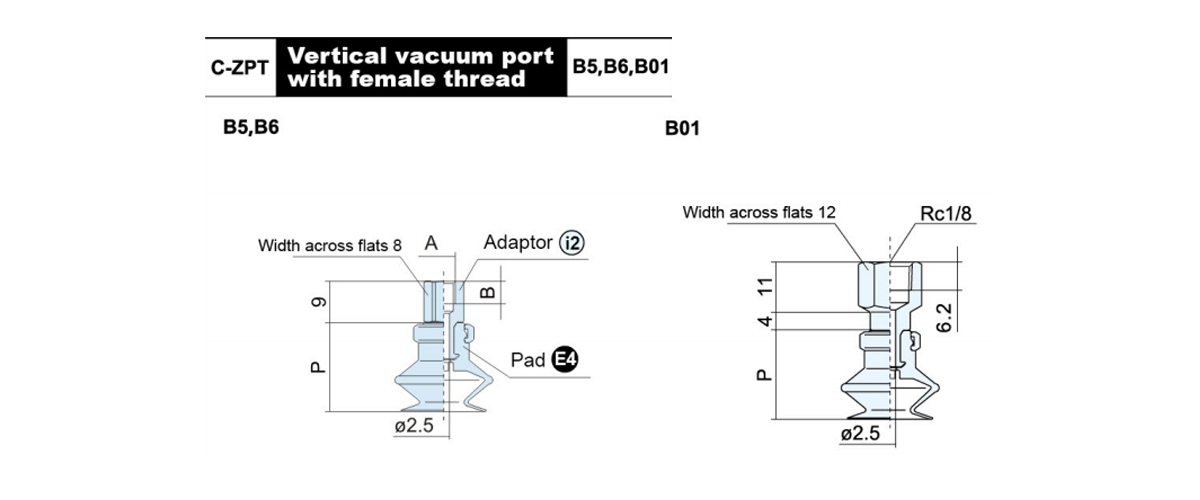

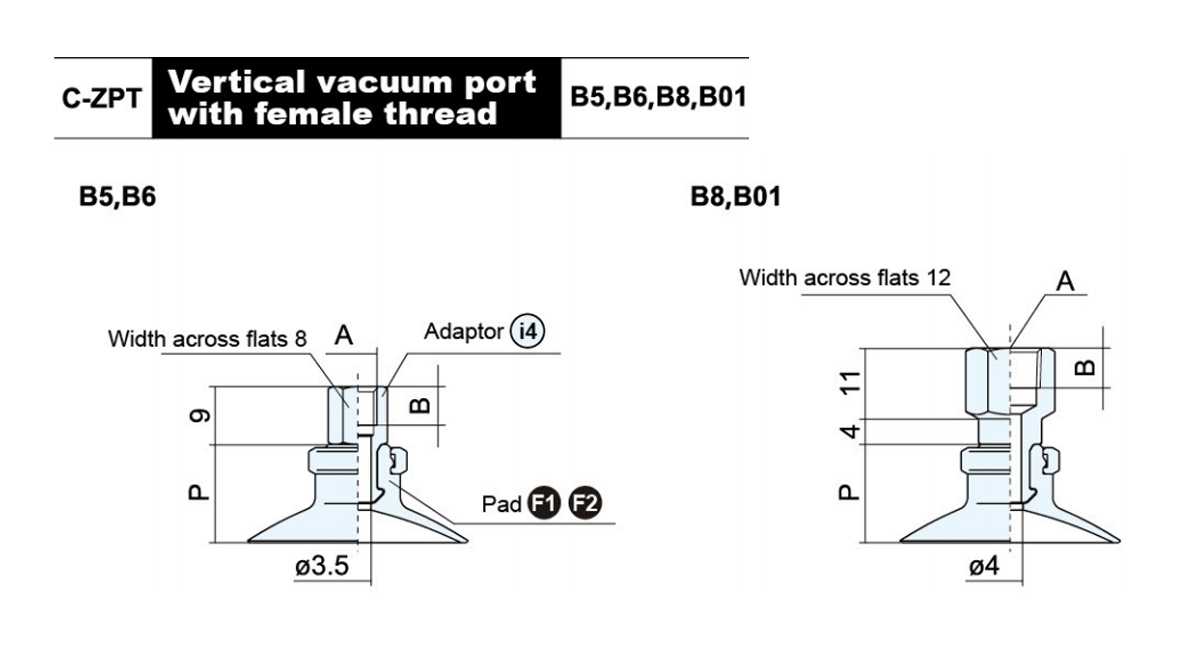

Model	A	B	○Pad diameter		P	Adaptor Model
			20	25	32
C-ZPT○☆□-B5	M5×0.8	5	14	14	14.5	ZPT3-B5
C-ZPT○☆□-B6	M6×1.0	6				ZPT3-B6
C-ZPT○☆□-B6	M8×1.25	8				ZPT3-B8
C-ZPT○☆□-B01	Rc1/8	6.2				ZPT3-B01
○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

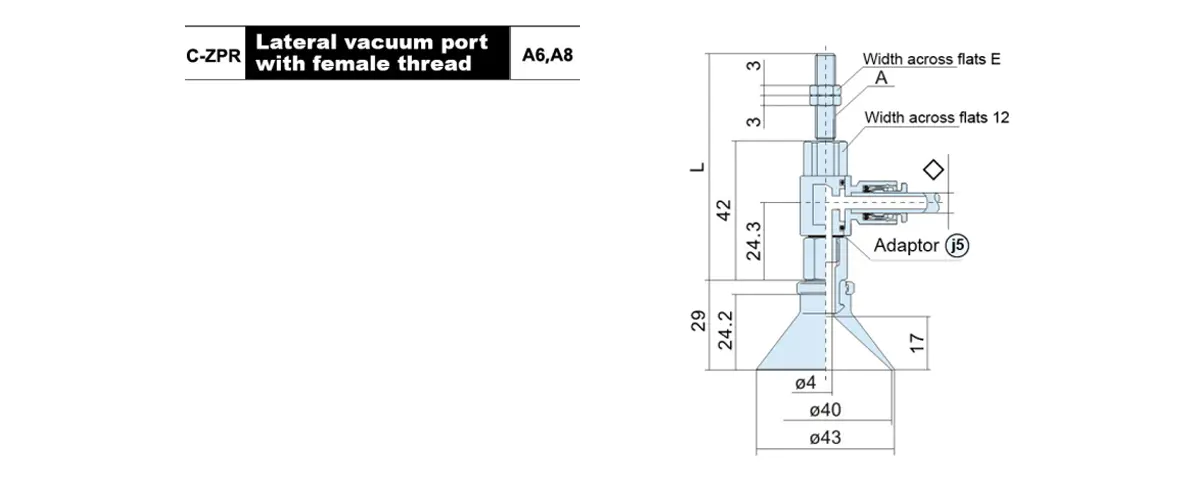

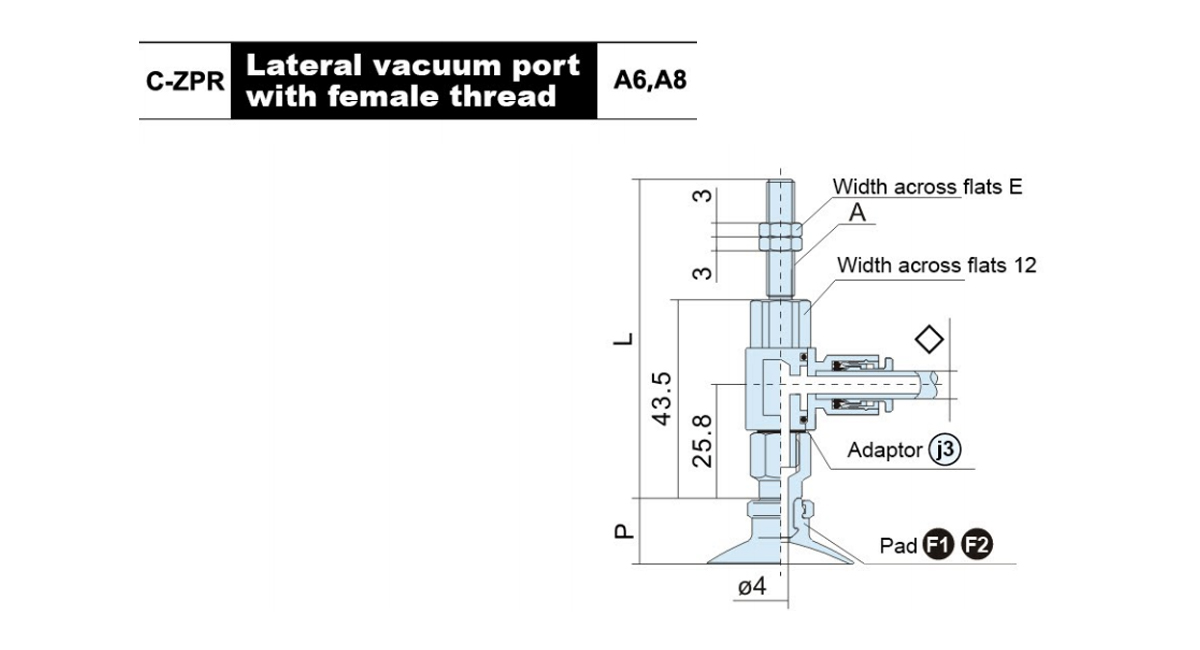

Model	A	E	L	○Pad diameter		P	Adaptor Model
				20	25	32
C-ZPR○☆□-◇-A6	M6×1.0	8	69.5	14	14	14.5	ZPR3-◇-A6
C-ZPR○☆□-◇-A8	M8×1.0	12	59.5				ZPR3-◇-A8
○Symbol of pad diameter:20,25,32☆ Pad type:Flat(U),with ribs(C) □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06,08

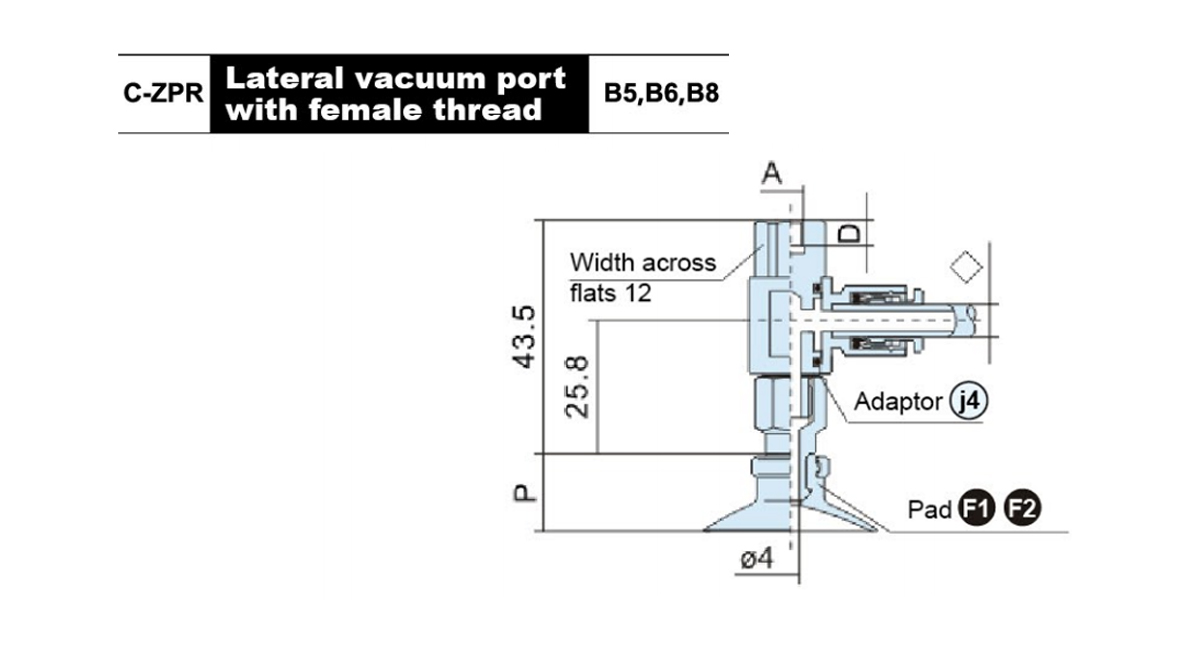

Model	A	D	○ Pad diameter		P	Adaptor Model
			20	25	32
C-ZPR○☆口 - ◇-B5	M5×0.8	5	14	14	14.5	ZPR3-◇-B5
C-ZPR○☆□-◇-B6	M6×1.0	6				ZPR3-◇-B6
C-ZPR○☆□-◇-B8	M8×1.25	8				ZPR3-◇-B8
○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S) Vacuum port connection:04,06,08

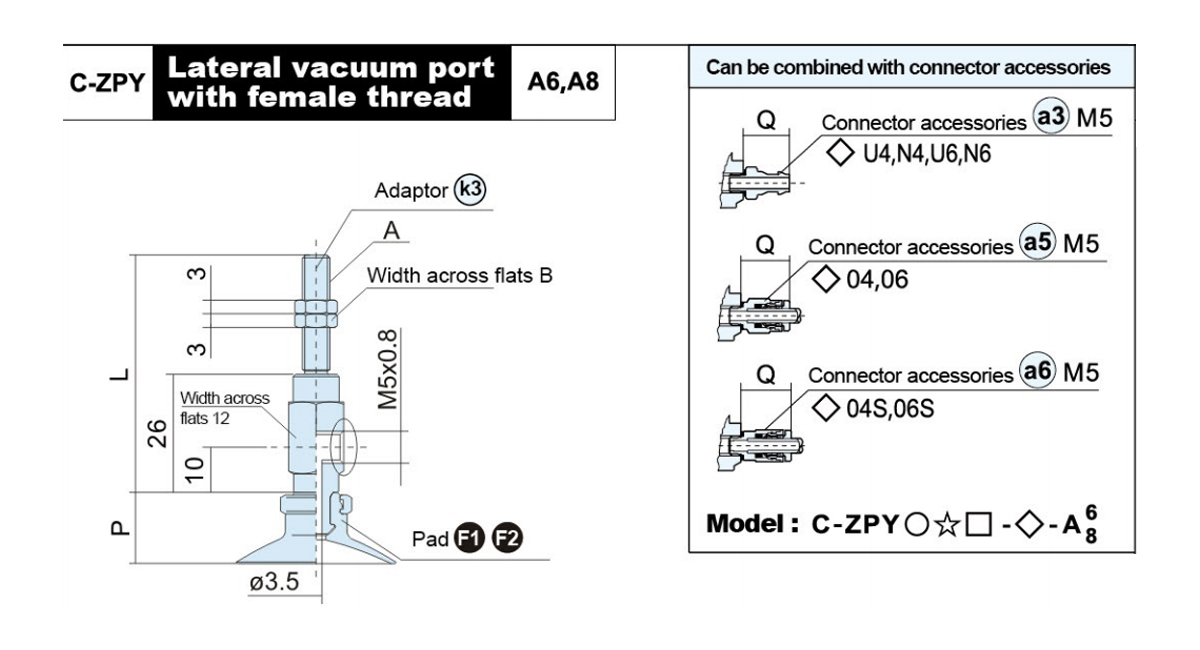

Model	A	B	L	○Pad diameter		P	Adaptor Model
				20	25	32
C-ZPY○☆□-B5-A6	M6×1.0	8	54	14	14	14.5	ZPY3-B5-A6
C-ZPY○☆□-B5-A8	M8×1.0	12	44				ZPY3-B5-A8
○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

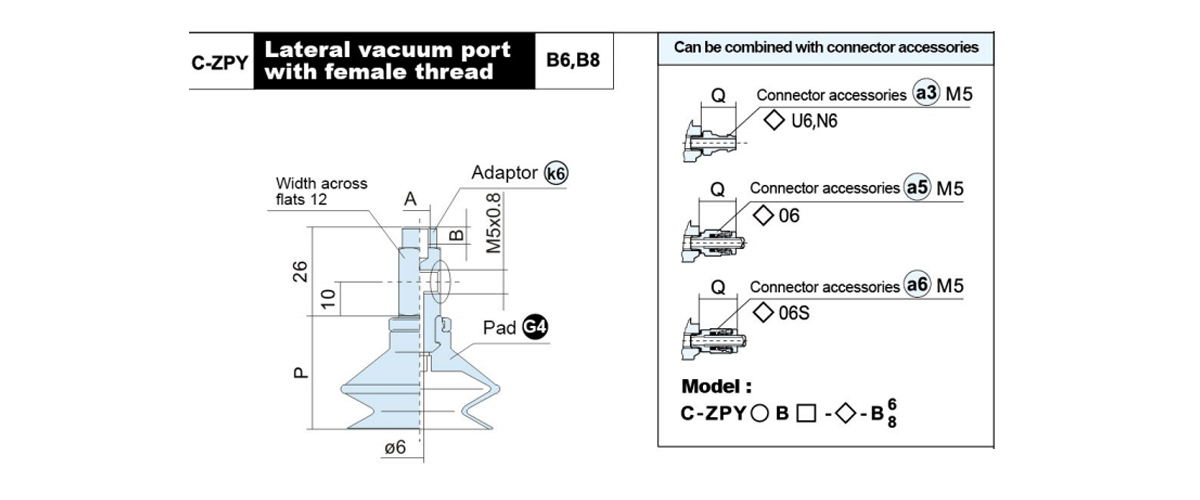

Model	A	B	○Pad diameter		P	Adaptor Model
			20	25	32
C-ZPY○☆□-B5-B5	M5×0.8	5	14	14	14.5	ZPY3-B5-B5
C-ZPY○☆□-B5-B6	M6×1.0	6				ZPY3-B5-B6
C-ZPY○☆□-B5-B8	M8×1.25	8				ZPY3-B5-B8
○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

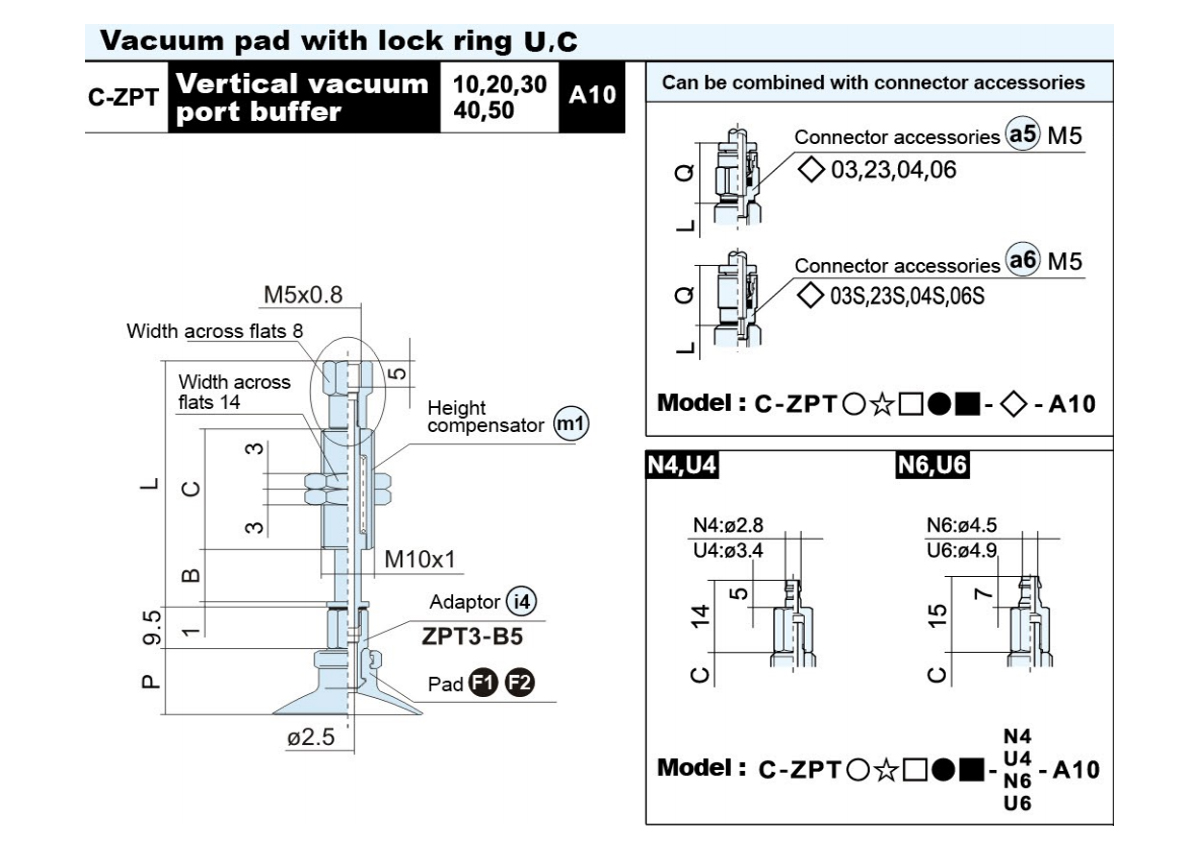

Model	B	C	L	○Pad Diameter			P	m1 i4 Bumper Support Model
				20	25	32
C-ZPT○☆□●10-B5-A10	10	23	47	14	14	14.5		ZPT3-●10-B5-A10
C-ZPT○☆□●20-B5-A10	20	51	85					ZPT3-●20-B5-A10
C-ZPT○☆□●30-B5-A10	30		95					ZPT3-●30-B5-A10
C-ZPT○☆□●40-B5-A10	40	77	131					ZPT3-●40-B5-A10
C-ZPT○☆□●50-B5-A10	50		141					ZPT3-●50-B5-A10
○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S) ☆Pad type:Flat(U),with ribs(C) ●Height compensator type:Rotative(J) ■Buffer stroke(mm):10,20,30,40,50 Unable to rotate(K)

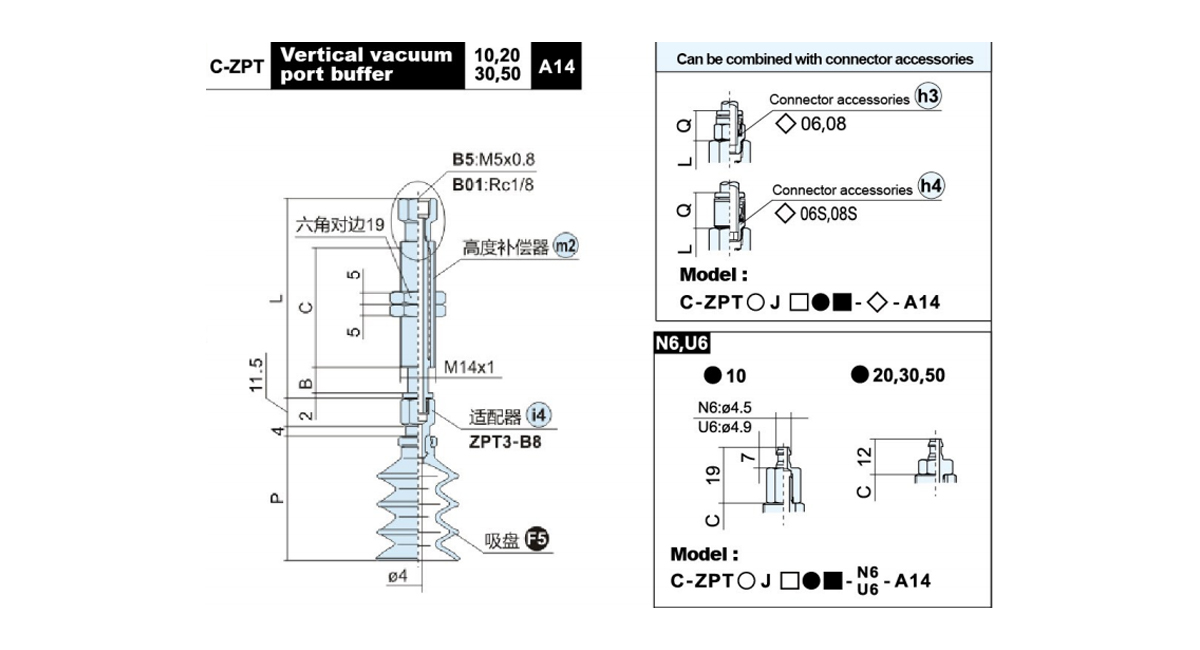

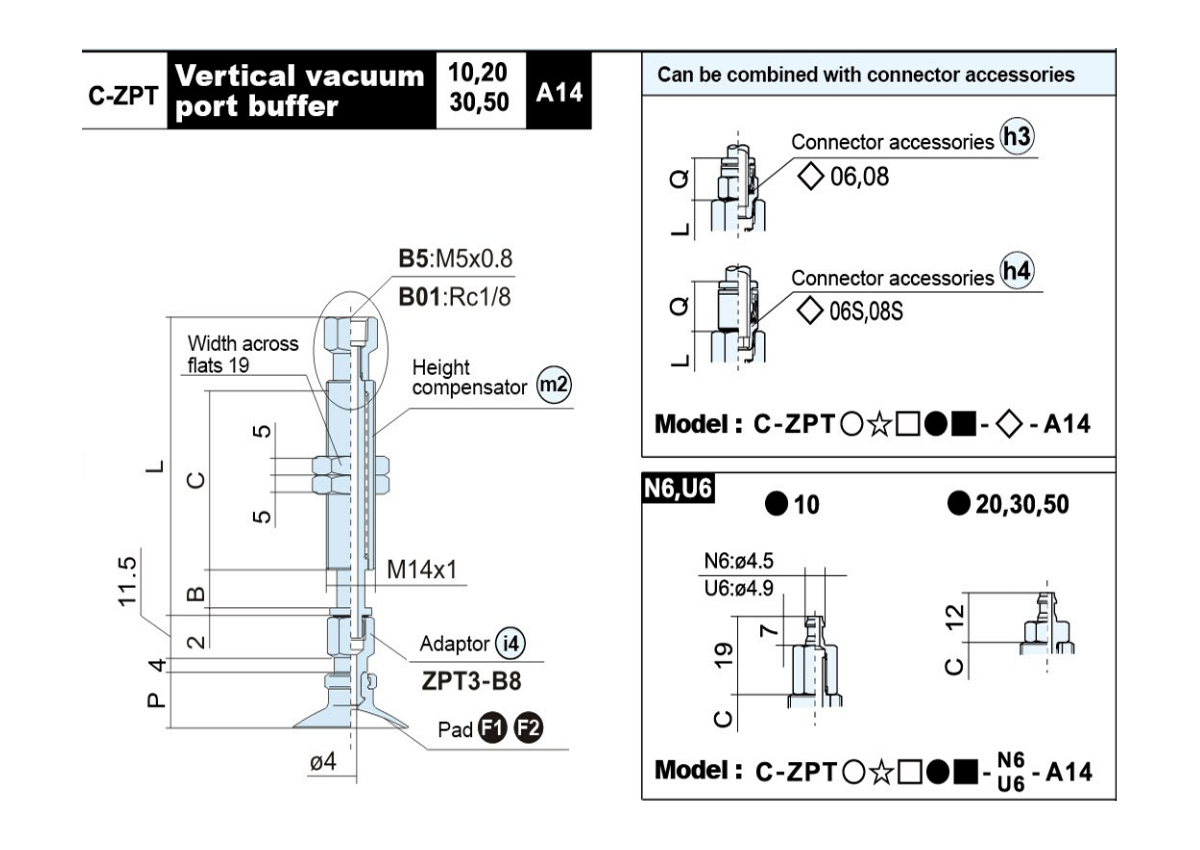

Model	B	C	L	Pad U Diame Diameter		P	m2 i4 Bumper Support Model
Model	B	C	L	20	25	32	m2 i4 Bumper Support Model
C-ZPT○☆□●10-B5-A14	10	50	77	14	14	14.5	ZPT3-●10-B5-A14
C-ZPT○☆□●20-B5-A14	20		81				ZPT3-●20-B5-A14
C-ZPT○☆□●30-B5-A14	30		91				ZPT3-●30-B5-A14
C-ZPT○☆□●50-B5-A14	50	75	136				ZPT3-●50-B5-A14
C-ZPT○☆□●10-B01-A14	10	50	78.5				ZPT3-●10-B01-A14
C-ZPT○☆□●20-B01-A14	20		84				ZPT3-●20-B01-A14
C-ZPT○☆□●30-B01-A14	30		94				ZPT3-●30-B01-A14
C-ZPT○☆□●50-B01-A14	50	75	139				ZPT3-●50-B01-A14
○Symbol of pad diameter:20,25,32 □Material:NBR(N),Silicone(S) ☆ Pad type:Flat(U),with ribs(C) ● Height compensator type:Rotative(J) ■ Buffer stroke(mm):10,20,30,50 Unable to rotate(K)

Model	B	C	L	○Pad Diameter			P	m3 ④ Bumper Support Model
				20	25	32
C-ZPR○☆□●10-◇-A10	10	23	45	14	14	14.5		ZPR3-●10-◇-A10
C-ZPR○☆□●20-◇-A10	20	51	83					ZPR3-●20-◇-A10
C-ZPR○☆口●30-◇-A10	30		93					ZPR3-●30-◇-A10
C-ZPR○☆□●40-◇-A10	40	77	129					ZPR3-●40-◇-A10
C-ZPR○☆□●50-◇-A10	50		139					ZPR3-●50-◇-A10
○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S) ☆Pad type:Flat(U),with ribs(C) ● Height compensator type:Rotative(J) ◇Vacuum port connection:04,06,08 Unable to rotate(K)

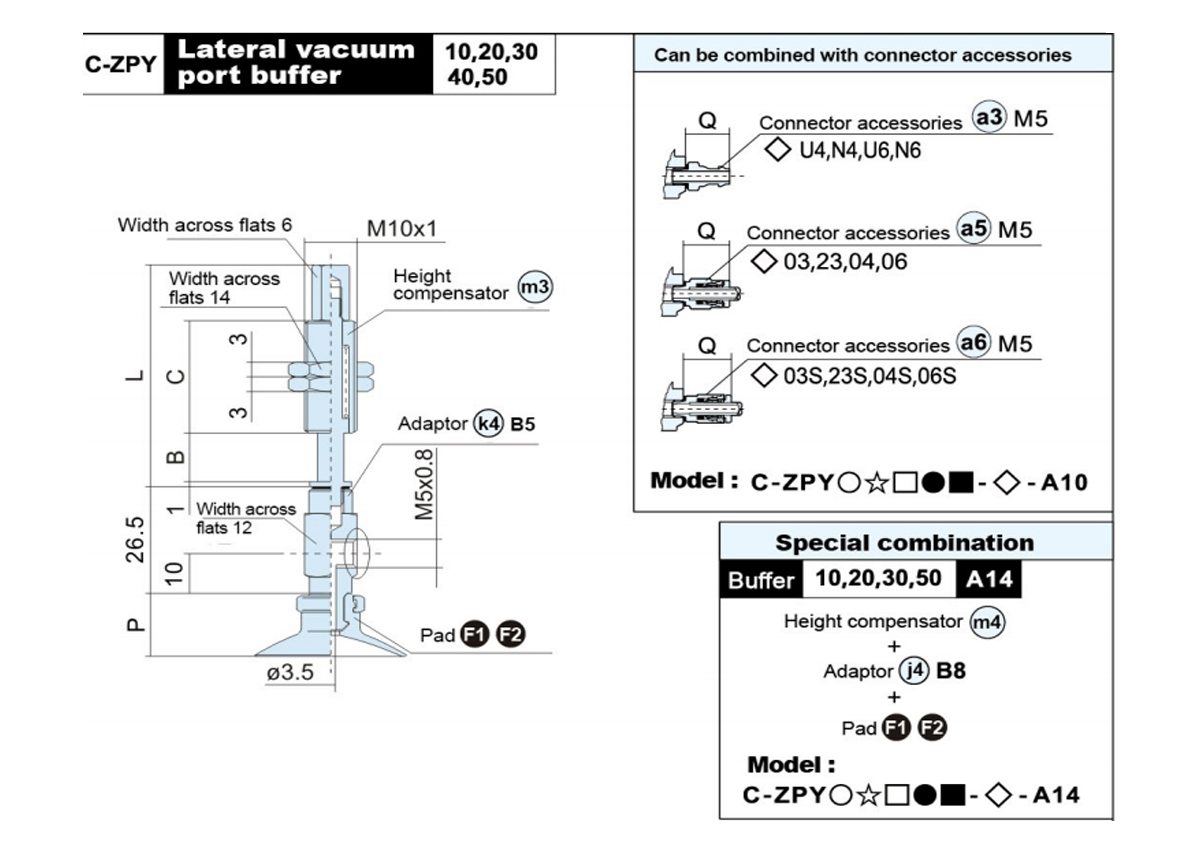

Model	B	C	L	○Pad Diameter			P	m3 k4 Bumper Support Model
				20	25	32
C-ZPY○☆□●10-B5-A10	10	23	45	14	14	14.5		ZPY3-●10-B5-A10
C-ZPY○☆□●20-B5-A10	20	51	83					ZPY3-●20-B5-A10
C-ZPY○☆口●30-B5-A10	30		93					ZPY3-●30-B5-A10
C-ZPY○☆□●40-B5-A10	40	77	129					ZPY3-●40-B5-A10
C-ZPY○☆□●50-B5-A10	50		139					ZPY3-●50-B5-A10
○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S) ☆Pad type:Flat(U),with ribs(C) ● Height compensator type:Rotative(J) ■Buffer stroke(mm):10,20,30,50 Unable to rotate(K)

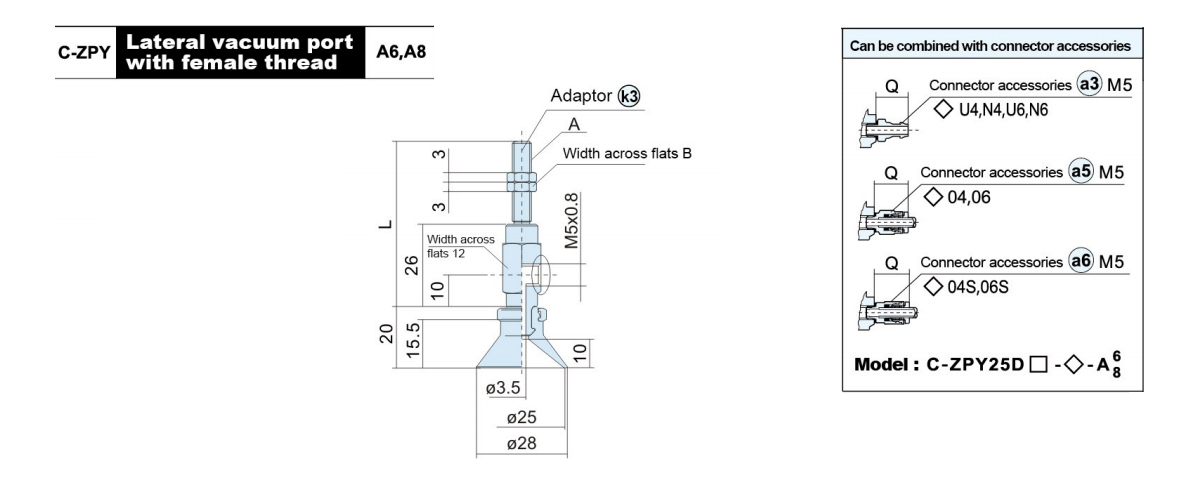

Model	A	ØB	C	L	○Pad DiameterP		Adaptor Model
					40	50
C-ZPT○☆□-A6	M6×1.0	3.5	8	32	18.5	19.5	ZPT4-A6
C-ZPT○☆□-A8	M8×1.0	4.5	12	22			ZPT4-A8
C-ZPT○☆□-A01			-				ZPT4-A01
○Symbol of pad diameter:40,50 ☆ Pad type:Flat(U),with ribs(C) □ Material:NBR(N),Silicone(S)

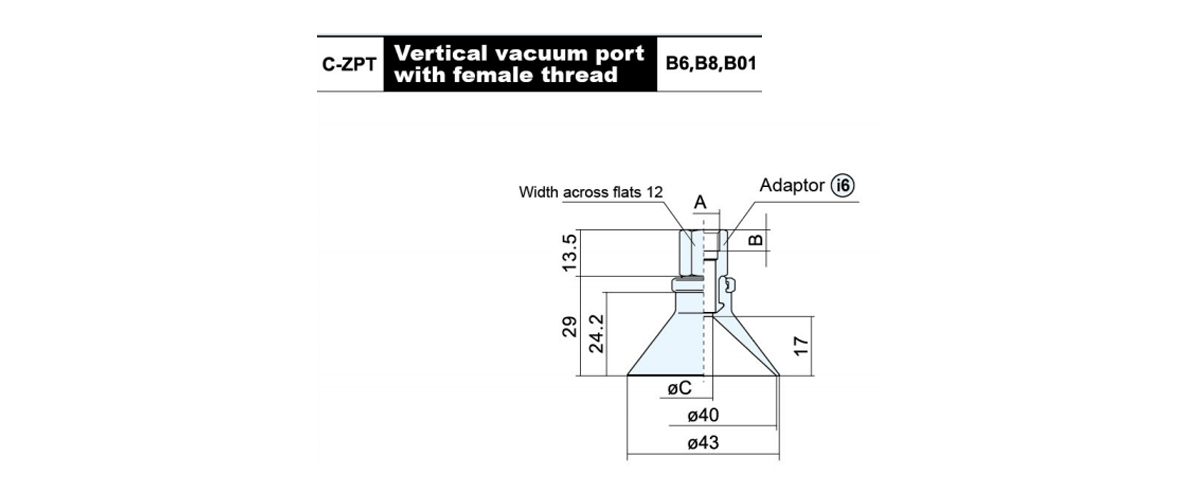

Model	A	B	oC	○Pad Diameter P		Adaptor Model
				40	50

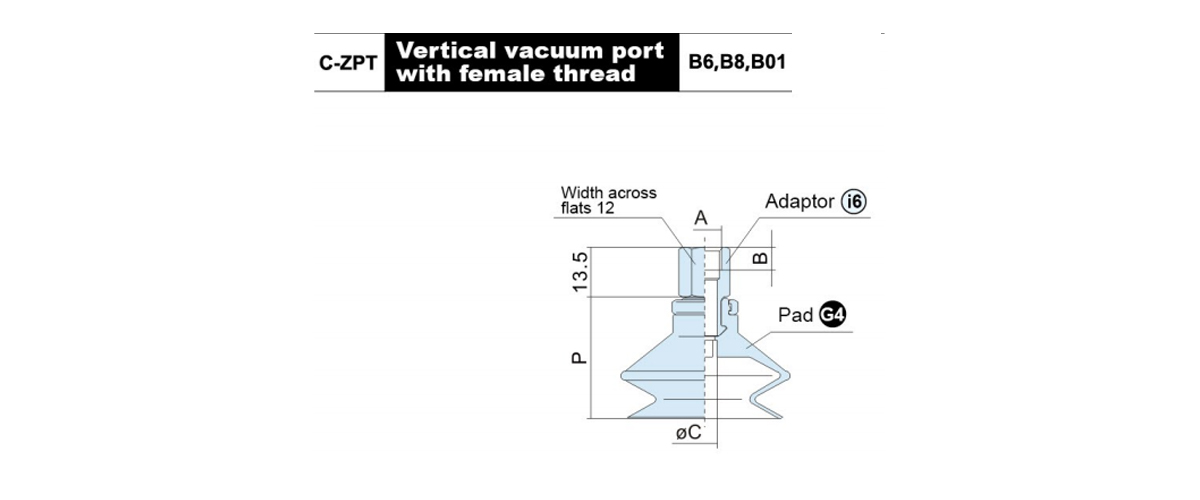

C-ZPT○☆□-B6	M6×1.0	6	4.5	18.5	19.5	ZPT4-B6
C-ZPT○☆□-B8	M8×1.25	8	6.8			ZPT4-B8
C-ZPT○☆□-B01	Rc1/8	6.2				ZPT4-B01
○Symbol of pad diameter:40,50 ☆ Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

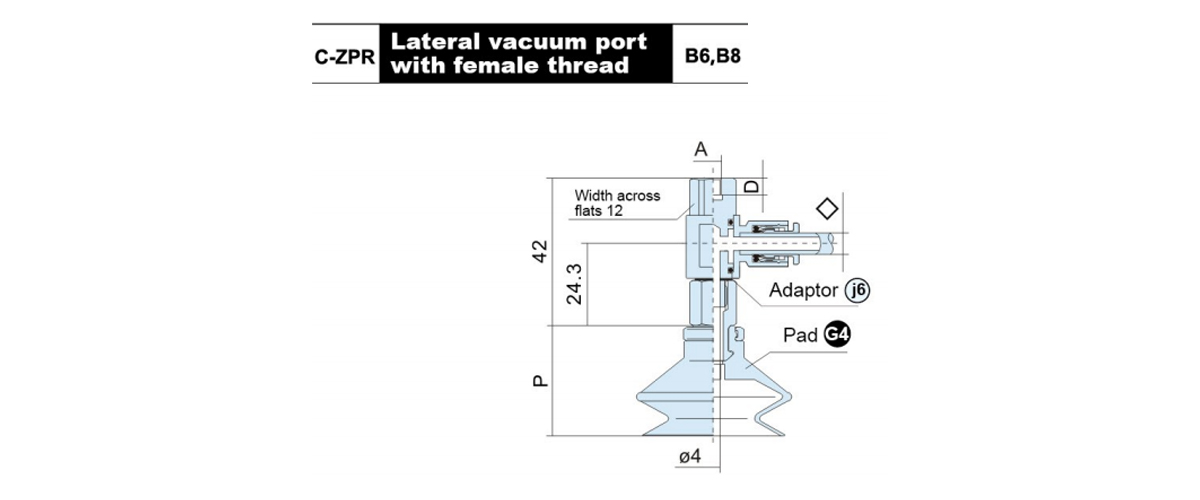

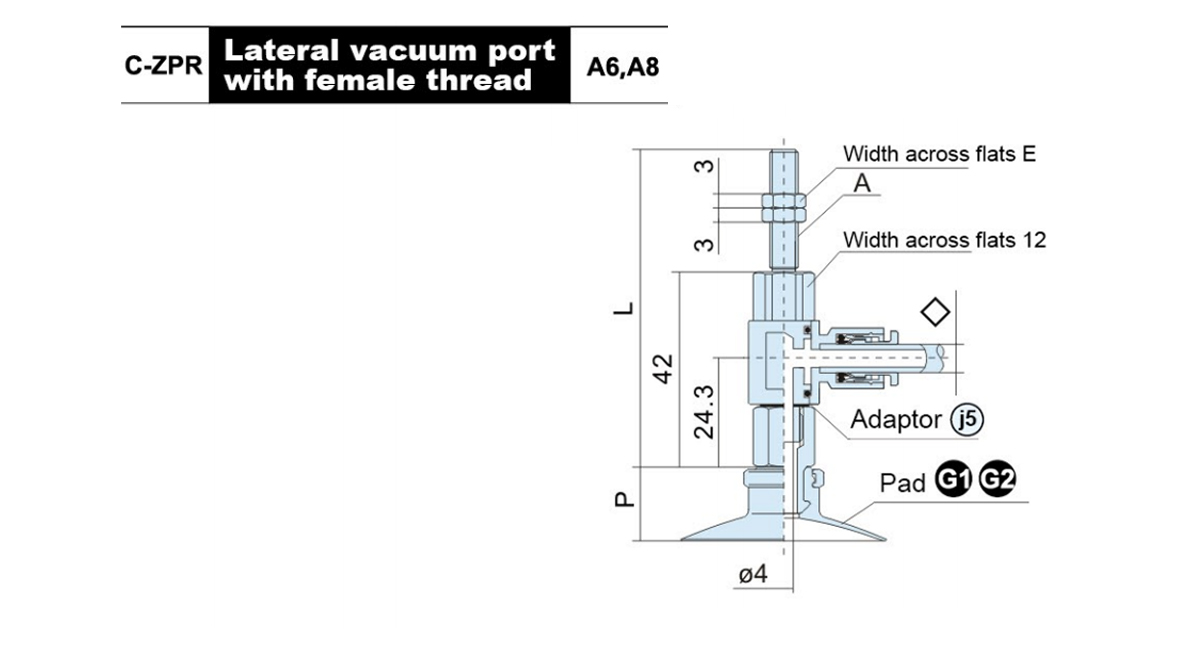

Model	A	E	L	○Pad Diameter P		Adaptor Model
				40	50
C-ZPR○☆□-◇-A6	M6×1.0	8	68	18.5	19.5	ZPR4-◇-A6
C-ZPR○☆□-◇-A8	M8×1.0	12	58			ZPR4-◇-A8
○Symbol of pad diameter:40,50 □Material:NBR(N),Silicone(S) ☆ Pad type:Flat(U),with ribs(C) ◇Vacuum port connection:06,08

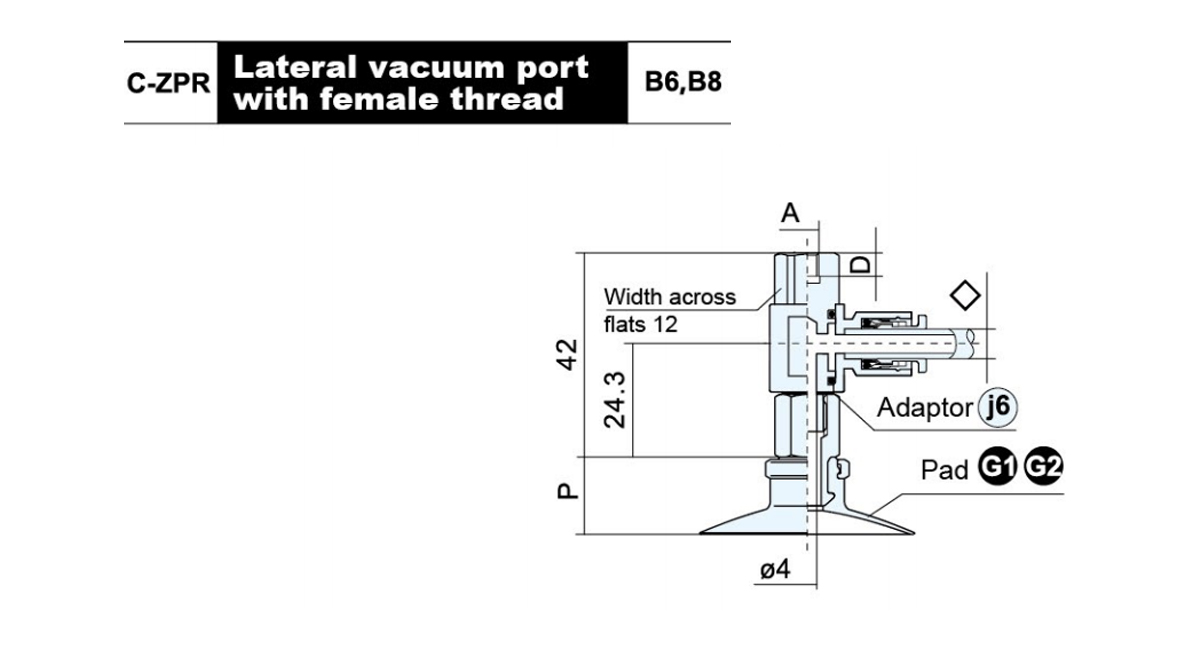

Model	A	D	○Pad Diameter P		Adaptor Model
			40	50
C-ZPR○☆口 - ◇ -B6	M6×1.0	6	18.5	19.5	ZPR4-◇-B6
C-ZPR○☆□-◇-B8	M8×1.25	8			ZPR4-◇-B8
○Symbol of pad diameter:40,50 □Material:NBR(N),Silicone(S) ☆Pad type:Flat(U),with ribs(C) ◇Vacuum port connection:06,08

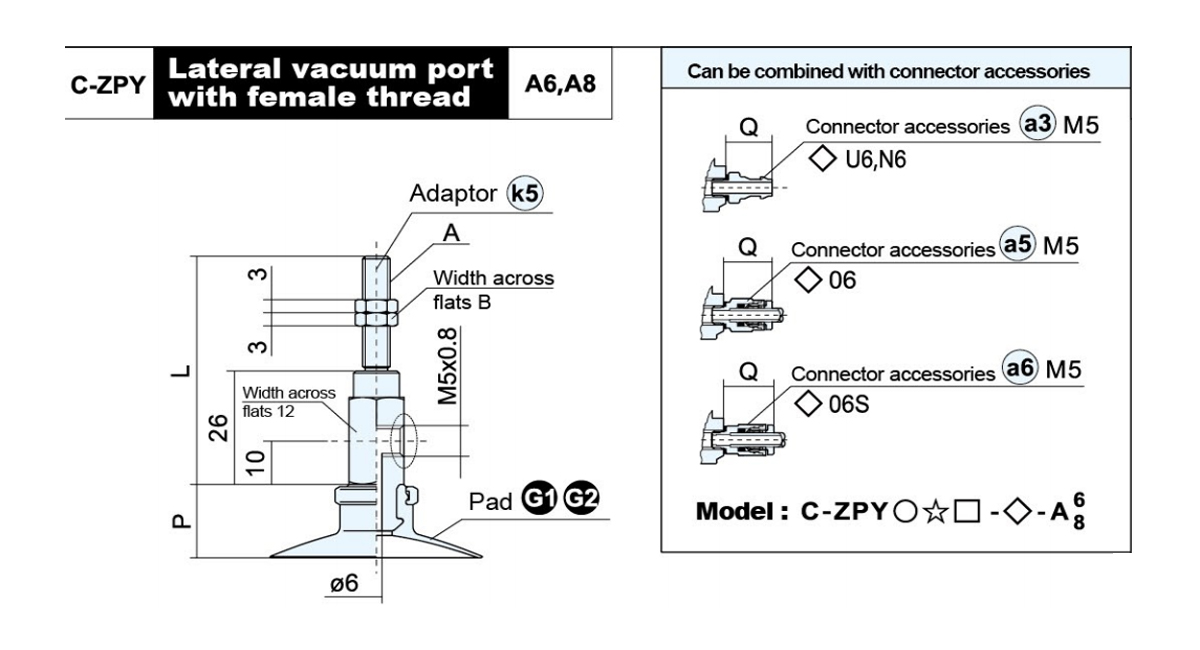

Model	A	B	L	○Pad DiameterP		Adaptor Model
				40	50
C-ZPY○☆□-B5-A6	M6×1.0	8	54	18.5	19.5	ZPY4-B5-A6
C-ZPY○☆□-B5-A8	M8×1.0	12	44			ZPY4-B5-A8
○Symbol of pad diameter:40,50 ☆Pad type:Flat(U),with ribs(C) □Material:NBR(N),Silicone(S)

Model	A	B	○Pad Diameter P		Adaptor Model
			40	50
C-ZPY○☆□-B5-B6	M6×1.0	6	18.5	19.5	ZPY3-B5-B6
C-ZPY○☆□-B5-B8	M8×1.25	8			ZPY3-B5-B8
○Symbol of pad diameter:40,50 ☆ Pad type:Flat(U),with ribs(C) □ Material:NBR(N),Silicone(S)

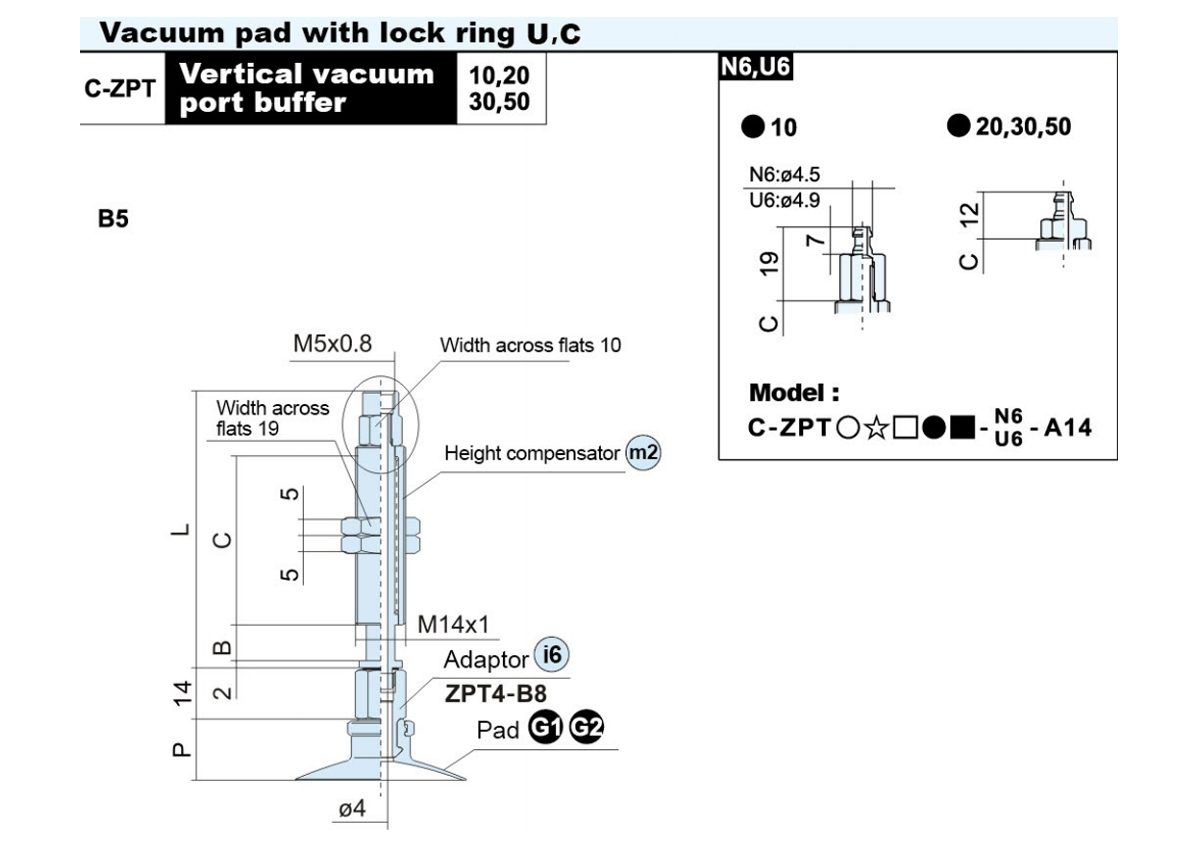

Model	B	C	L	○Pad Diameter P		m2 i6 Bumper Support Model
				40	50
C-ZPT○☆□●10-B5-A14	10	50	77	18.5	19.5	ZPT4-●10-B5-A14
C-ZPT○☆□●20-B5-A14	20		81			ZPT4-●20-B5-A14
C-ZPT○☆□●30-B5-A14	30		91			ZPT4-●30-B5-A14
C-ZPT○☆□●50-B5-A14	50	75	136			ZPT4-●50-B5-A14
○Symbol of pad diameter:40,50 ☆ Pad type:Flat(U),with ribs(C) □ Material:NBR(N),Silicone(S) ●Height compensator type:Rotative(J),Unable to rotate(K) ■Buffer stroke(mm):10,20,30,50

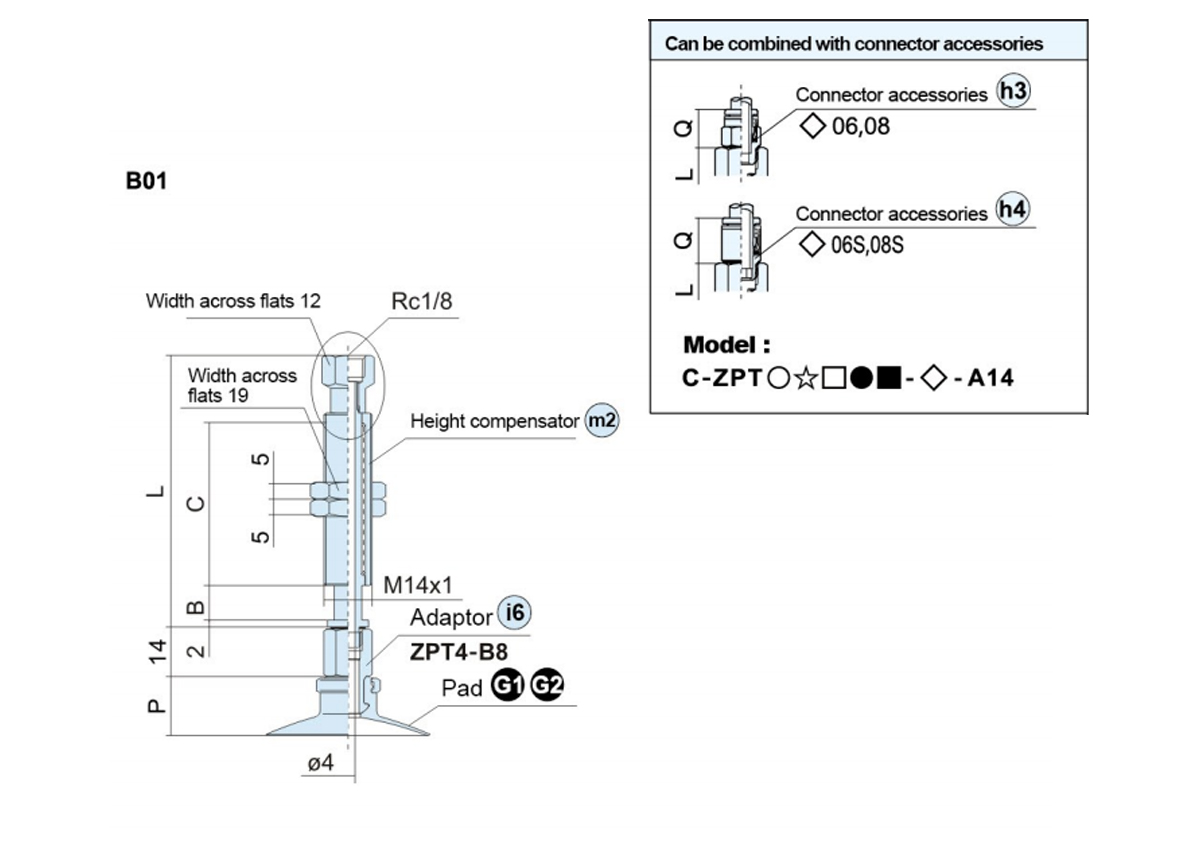

Model	B	C	L	○Pad Diameter P		m2 i6 Bumper Support Model
				40	50
C-ZPT○☆□●10-B01-A14	10	50	78.5	18.5	19.5	ZPT4-●10-B01-A14
C-ZPT○☆□●20-B01-A14	20		84			ZPT4-●20-B01-A14
C-ZPT○☆□●30-B01-A14	30		94			ZPT4-●30-B01-A14
C-ZPT○☆□●50-B01-A14	50	75	139			ZPT4-●50-B01-A14
○Symbol of pad diameter:40,50 ☆ Pad type:Flat(U),with ribs(C) □ Material:NBR(N),Silicone(S) ●Height compensator type:Rotative(J),Unable to rotate(K) ■Buffer stroke(mm):10,20,30,50

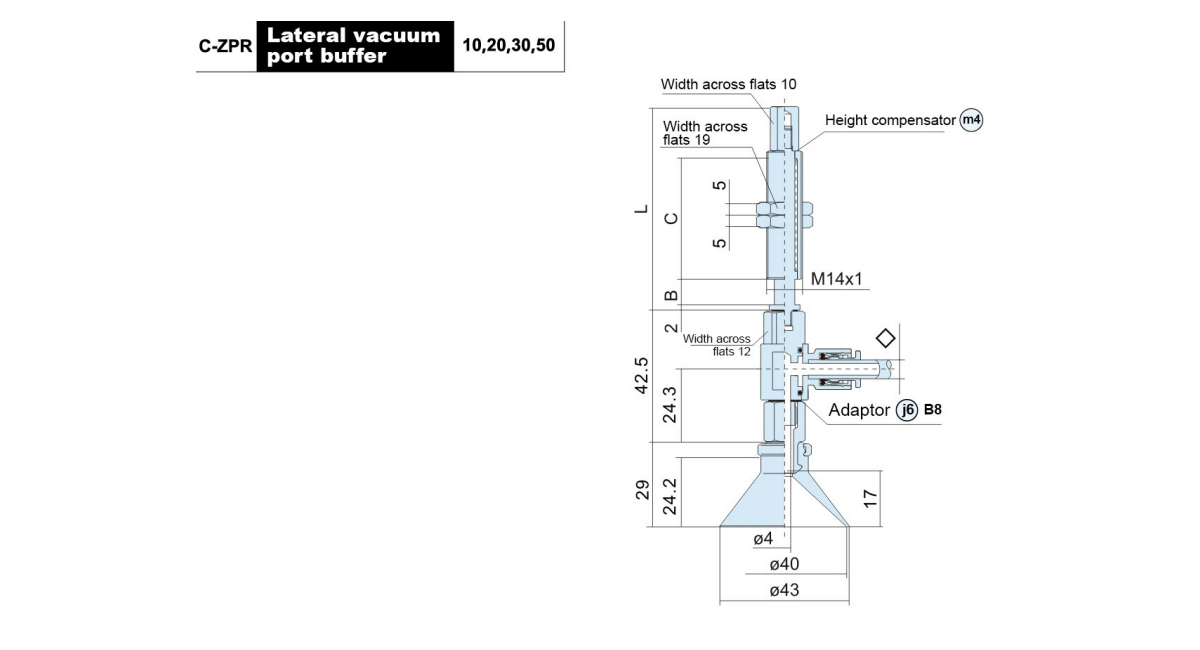

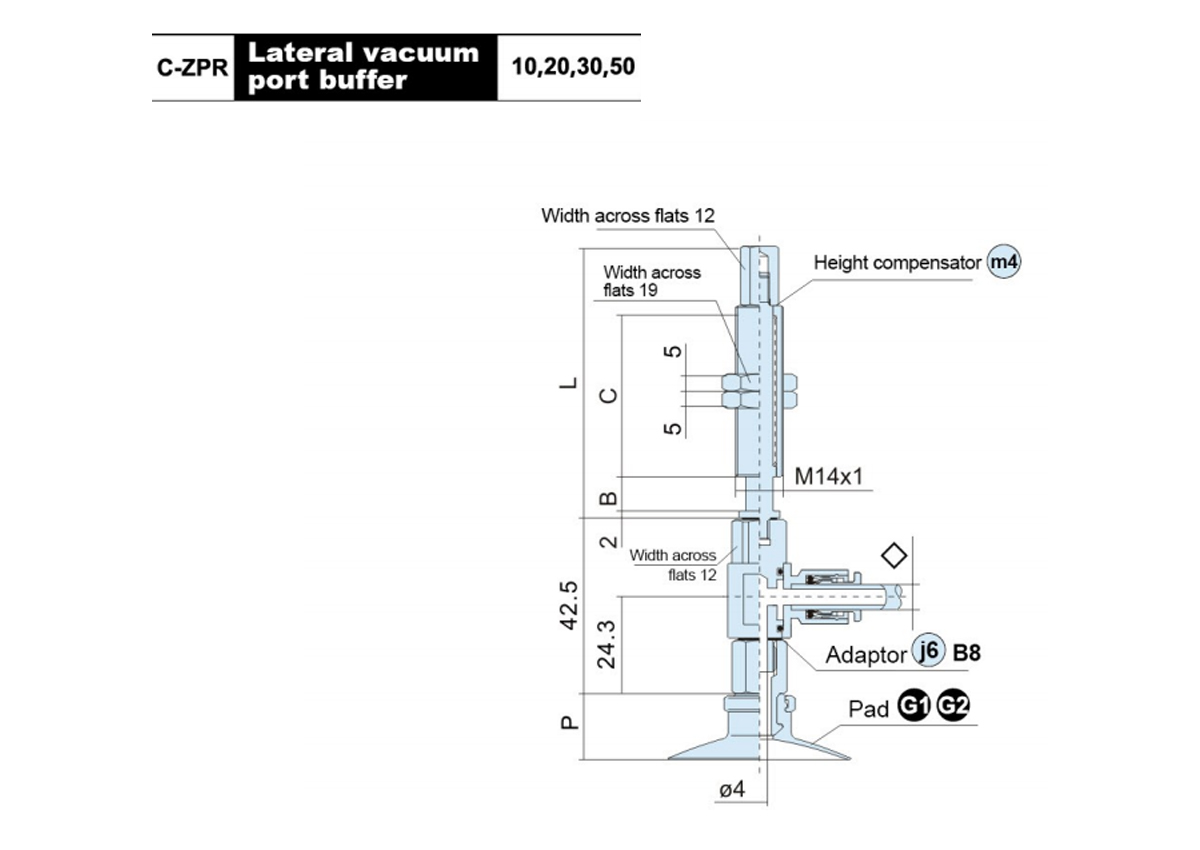

Model	B	C	L	○Pad Diameter P		m4 j6 Bumper Support Model
				40	50

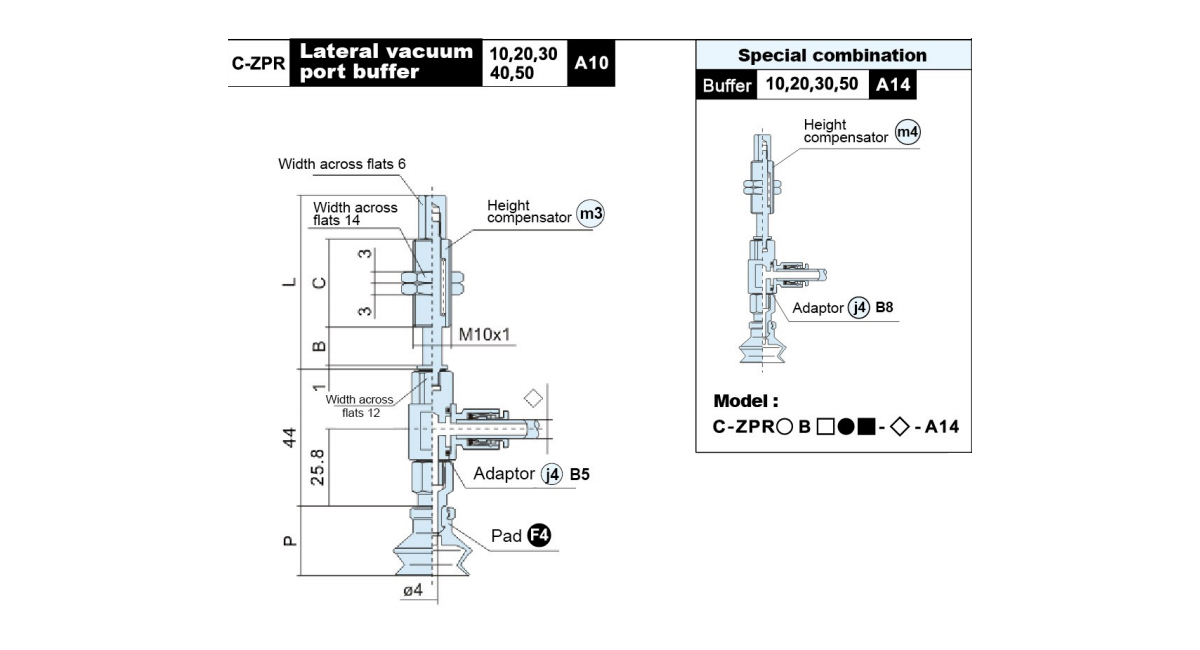

C-ZPR○☆□●10-◇-A14	10	50	80	18.5	19.5	ZPR4-●10-◇-A14
C-ZPR○☆□●20-◇-A14	20		77			ZPR4-●20-◇-A14
C-ZPR○☆□●30-◇-A14	30		87			ZPR4-●30-◇-A14
C-ZPR○☆□●50-◇-A14	50	75	132			ZPR4-●50-◇-A14
○ Symbol of pad diameter:40,50 ☆Pad type:Flat(U),with ribs(C) □ Material:NBR(N),Silicone(S) ●Height compensator type:Rotative(J) ◇Vacuum port connection:06,08 Unable to rotate(K)

Model	B	C	L	○Pad Diameter P		m4 k6 Bumper Support Model
				40	50
C-ZPY○☆□●10-◇-A14	10	50	80	18.5	19.5	ZPY4-●10-◇-A14
C-ZPY○☆口●20-◇-A14	20		77			ZPY4-●20-◇-A14
C-ZPY○☆□●30-◇-A14	30		87			ZPY4-●30-◇-A14
C-ZPY○☆□●50-◇-A14	50	75	132			ZPY4-●50-◇-A14
○Symbol of pad diameter:40,50 ☆Pad type:Flat(U),with ribs(C) □ Material:NBR(N),Silicone(S) ■Buffer stroke(mm):10,20,30,50 ●Height compensator type:Rotative(J) Unable to rotate(K)

Model	A	B	C	L	○Pad diameter P		Adaptor Model
					10	16
C-ZPT○D□-A5	M5×0.8	7	4	26	15	16	ZPT2-A5
C-ZPT○D□-A6	M6×1.0	8	3	31			ZPT2-A6
C-ZPT○D□-A01		-	-				ZPT2-A01
○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

Model	A	B	○Pad diameter P		Adaptor Model
			10	16
C-ZPT○D□-B5	M5×0.8	5	15	16	ZPT2-B5
C-ZPT○D□-B6	M6×1.0	6			ZPT2-B6
C-ZPT○D□-B01	-	-			ZPT2-B01
○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

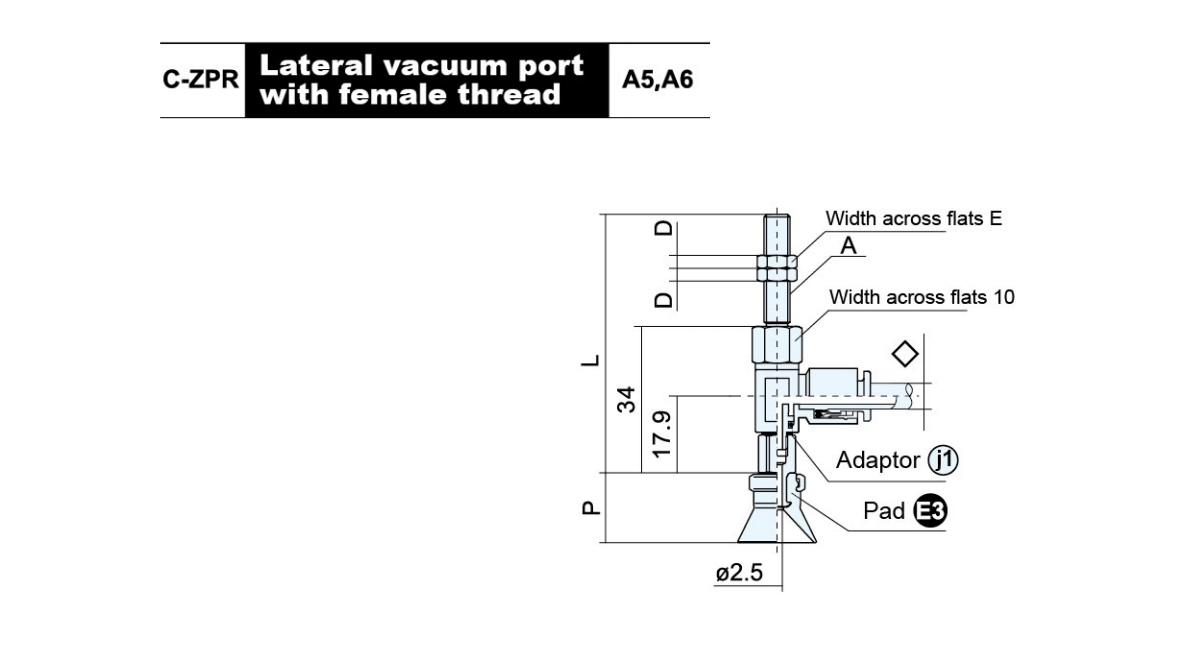

Model	A	D	E	L	○Pad Diameter P		Adaptor Model
					10	16
C-ZPR○D□-◇-A5	M5×0.8	4	7	55	15	16	ZPR2-◇-A5
C-ZPR○D□-◇-A6	M6×1.0	3	8	60			ZPR2-◇-A6
○Symbo of pad diameter:10,16 □Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06

Model	A	D	○Pad Diameter P		Adaptor Model
			10	16
C-ZPR○D□-◇-B5	M5×0.8	5	15	16	ZPR2-◇-B5
C-ZPR○D□-◇-B6	M6×1.0	6			ZPR2-◇-B6
○Symbol of pad diameter:10,16 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06

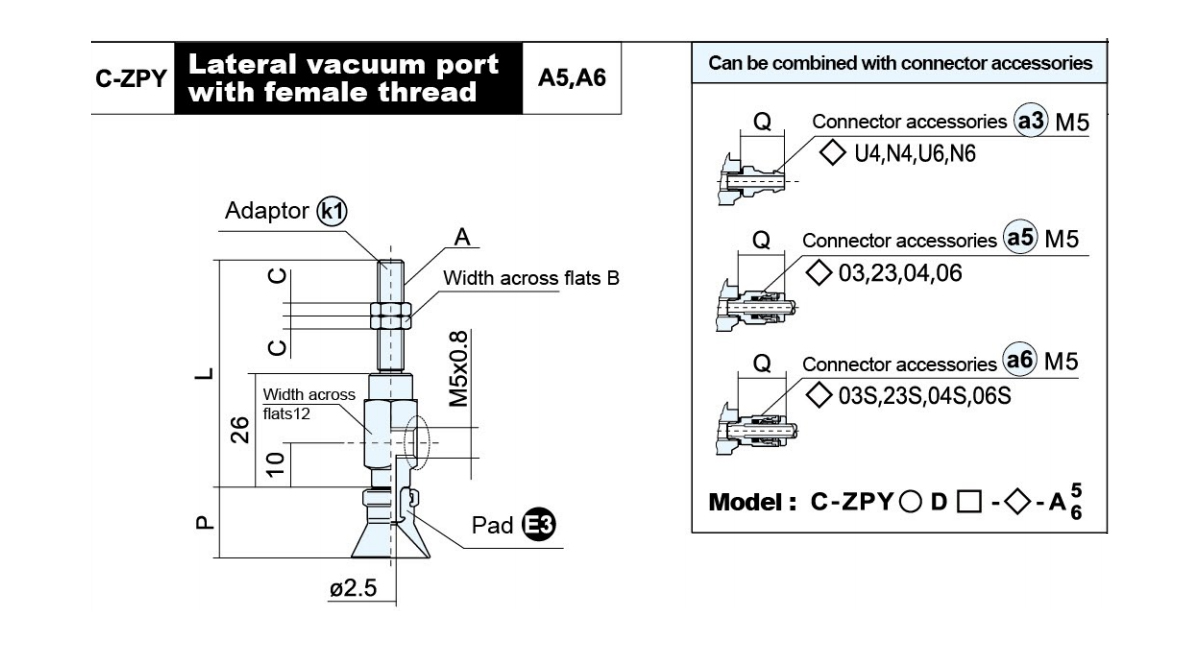

Model	A	B	C	L	○Pad Diameter P		Adaptor Model
					10	16
C-ZPY○D□-B5-A5	M5×0.8	7	4	47	15	16	ZPY2-B5-A5
C-ZPY○D□-B5-A6	M6×1.0	8	3	52			ZPY2-B5-A6
○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

Model	A	B	○Pad Diameter P		Adaptor Model
			10	16
C-ZPY○D□-B5-B5	M5×0.8	5	15	16	ZPY2-B5-B5
C-ZPY○D□-B5-B6	M6×1.0	6			ZPY2-B5-B6
○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

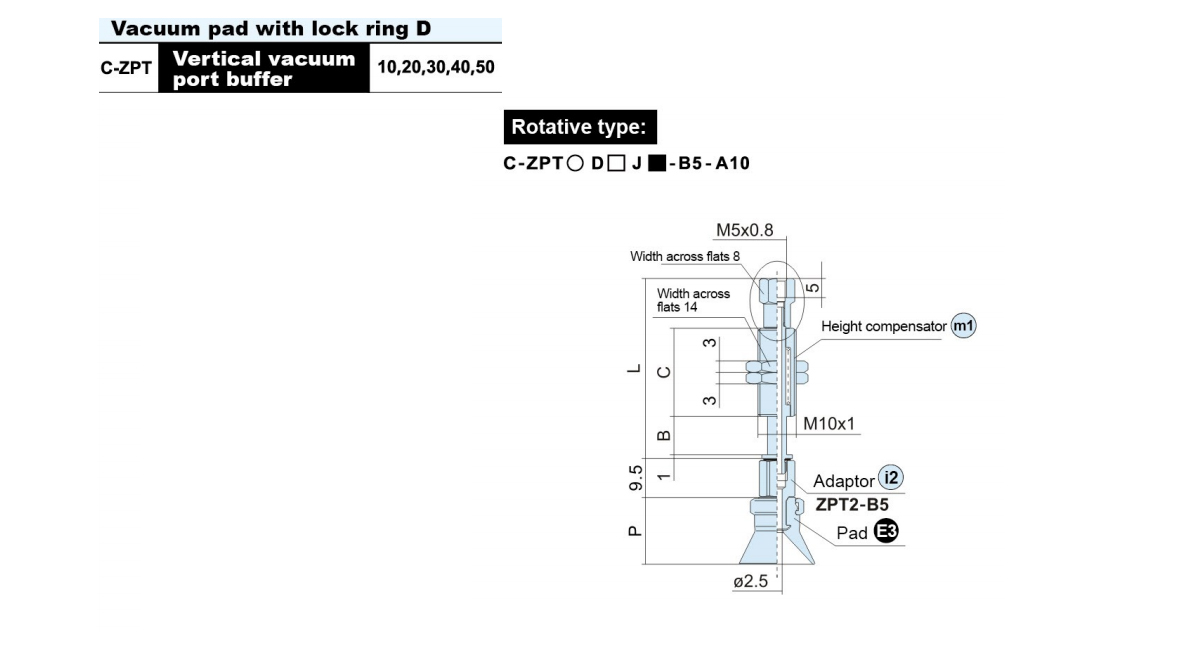

Model	B	C	L	○Pad Diameter P		P	m1 i2 Bumper Support Model
				10	16
C-ZPT○D□J10-B5-A10	10	23	47	15	16		ZPT2-J10-B5-A10
C-ZPT○D□J20-B5-A10	20	51	85				ZPT2-J20-B5-A10
C-ZPT○D□J30-B5-A10	30		95				ZPT2-J30-B5-A10
C-ZPT○D□J40-B5-A10	40	77	131				ZPT2-J40-B5-A10
C-ZPT○D□J50-B5-A10	50		141				ZPT3-J50-B5-A10
○Symbol of pad diameter:10,16 □ Material:NBR(N),Silicone(S) ■Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J),Unable to rotate(K)

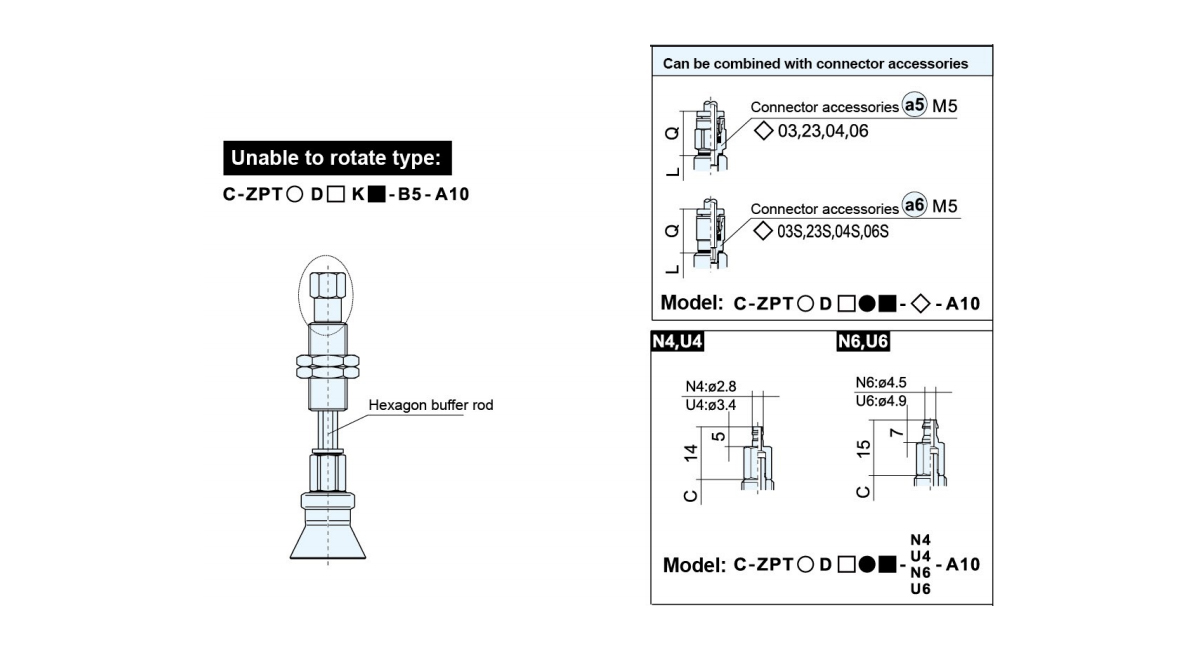

Model	B	C	L	○Pad Diameter P		m1 i2 Bumper Support Model
				10	16
C-ZPT○D□K10-B5-A10	10	23	47	15	16	ZPT2-K10-B5-A10
C-ZPT○D□K20-B5-A10	20	51	85			ZPT2-K20-B5-A10
C-ZPT○D□K30-B5-A10	30		95			ZPT2-K30-B5-A10
C-ZPT○D□K40-B5-A10	40	77	131			ZPT2-K40-B5-A10
C-ZPT○D□K50-B5-A10	50		141			ZPT3-K50-B5-A10
○Symbol of pad diameter:10,16 □ Material:NBR(N),Silicone(S) ■Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J),Unable to rotate(K)

Model	B	C	L	○Pad Diameter		P	m3 j2 Bumper Support Model
				10	16
C-ZPR○D□●10-◇-A10	10	23	45	15	16		ZPR2-●10-◇-A10
C-ZPR○D□●20-◇-A10	20	51	83				ZPR2-●20-◇-A10
C-ZPR○D□●30-◇-A10	30		93				ZPR2-●30-◇-A10
C-ZPR○D□●40-◇-A10	40	77	129				ZPR2-●40-◇-A10
C-ZPR○D□●50-◇-A10	50		139				ZPR2-●50-◇-A10
○ Symbol of pad diameter:10,16 ◇Vacuum port connection:04,06 □ Material:NBR(N),Silicone(S) ● Height compensator type:Rotative(J) Unable to rotate(K)

Model	B	C	L	○Pad Diameter		P	m3 j2 Bumper Support Model
				10	16
C-ZPY○D□●10-B5-A10	10	23	45	15	16		ZPY2-●10-B5-A10
C-ZPY○D□●20-B5-A10	20	51	83				ZPY2-●20-B5-A10
C-ZPY○D□●30-B5-A10	30		93				ZPY2-●30-B5-A10
C-ZPY○D□●40-B5-A10	40	77	129				ZPY2-●40-B5-A10
C-ZPY○D□●50-B5-A10	50		139				ZPY2-●50-B5-A10
○ Symbol of pad diameter:10,16 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J) Unable to rotate(K)

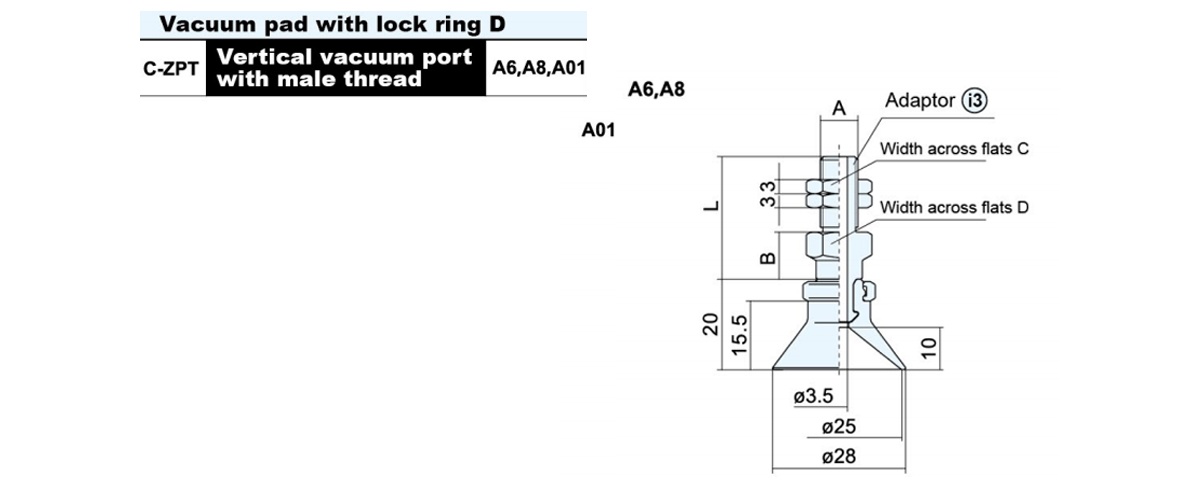

Model	A	B	C	D	L	Adaptor Model
C-ZPT25D□-A6	M6×1.0	5	8	8	31	ZPT3-A6
C-ZPT25D□-A8	M8×1.0	10	12	12	26	ZPT3-A8
C-ZPT25D□-A01	-	-	-	-	-	ZPT3-A01
□Material:NBR(N),Silicone(S)

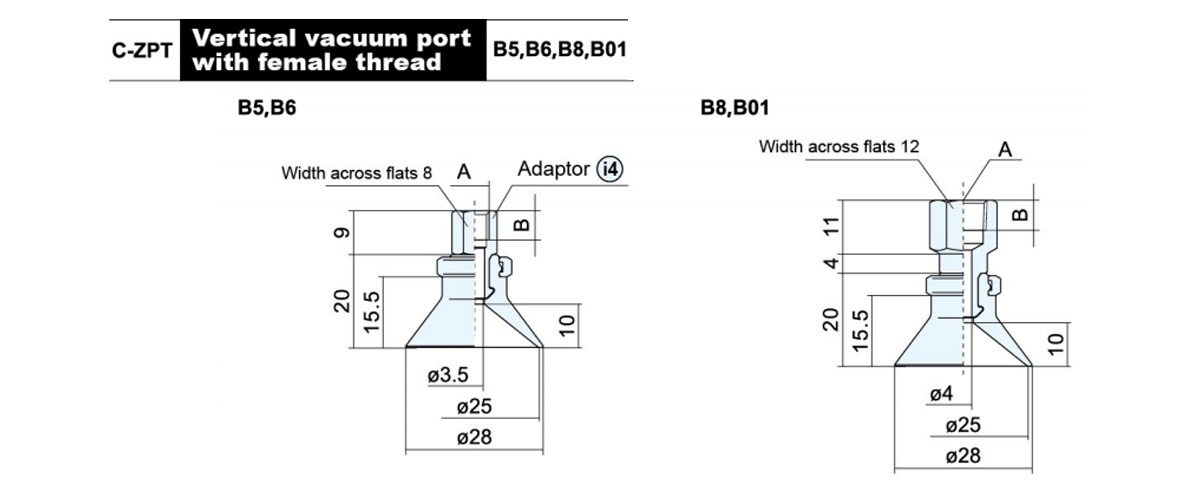

Model	A	B	Adaptor Model
C-ZPT25D□-B5	M5×0.8	5	ZPT3-B5
C-ZPT25D□-B6	M6×1.0	6	ZPT3-B6
C-ZPT25D□-B6	M8×1.25	8	ZPT3-B8
C-ZPT25D□-B01	Rc1/8	6.2	ZPT3-B01
□ Material:NBR(N),Silicone(S)

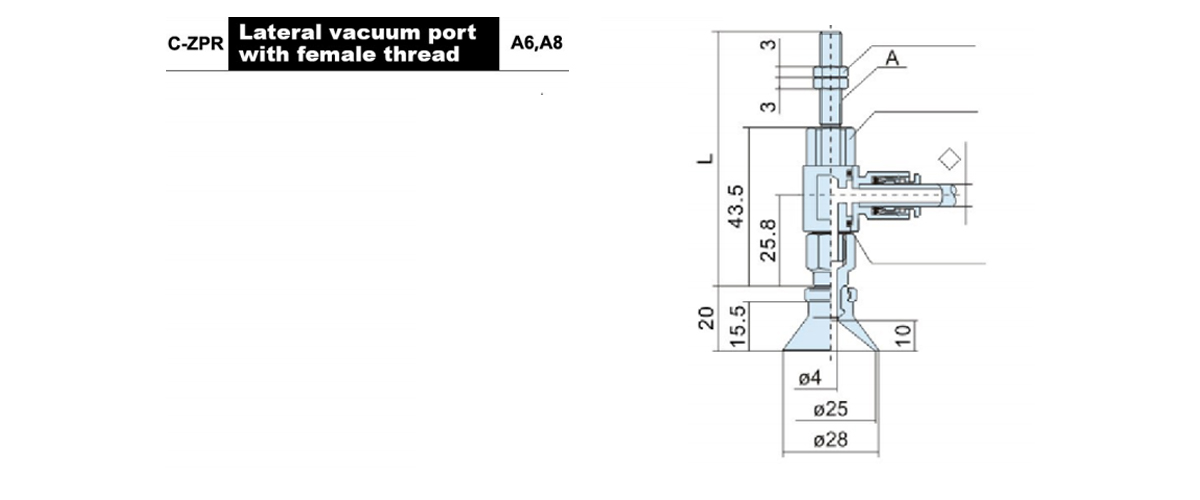

Model	A	E	L	Adaptor Model
C-ZPR25D□-◇ -A6	M6×1.0	8	69.5	ZPR3-◇-A6
C-ZPR25D□-◇ -A8	M8×1.0	12	59.5	ZPR3-◇-A8
□Material:NBR(N),Silicone(S)◇Vacuum port connection:04,06,08

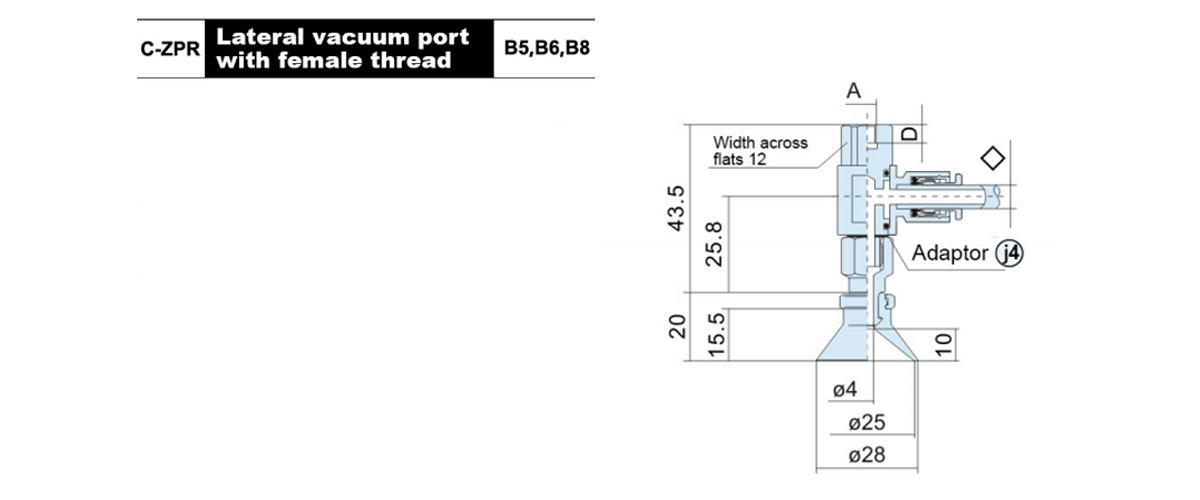

Model	A	D	Adaptor Model
C-ZPR25D□-◇-B5	M5×0.8	5	ZPR3-◇-B5
C-ZPR25D□-◇-B6	M6×1.0	6	ZPR3-◇-B6
C-ZPR25D□-◇-B8	M8×1.25	8	ZPR3-◇-B8
□Material:NBR(N),Silicone(S)◇Vacuum port connection:0406,08

Model	A	B	L	Adaptor Model
C-ZPY25D□-B5-A6	M6×1.0	8	54	ZPY3-B5-A6
C-ZPY25D□-B5-A8	M8×1.0	12	44	ZPY3-B5-A8
□Material:NBR(N),Silicone(S)

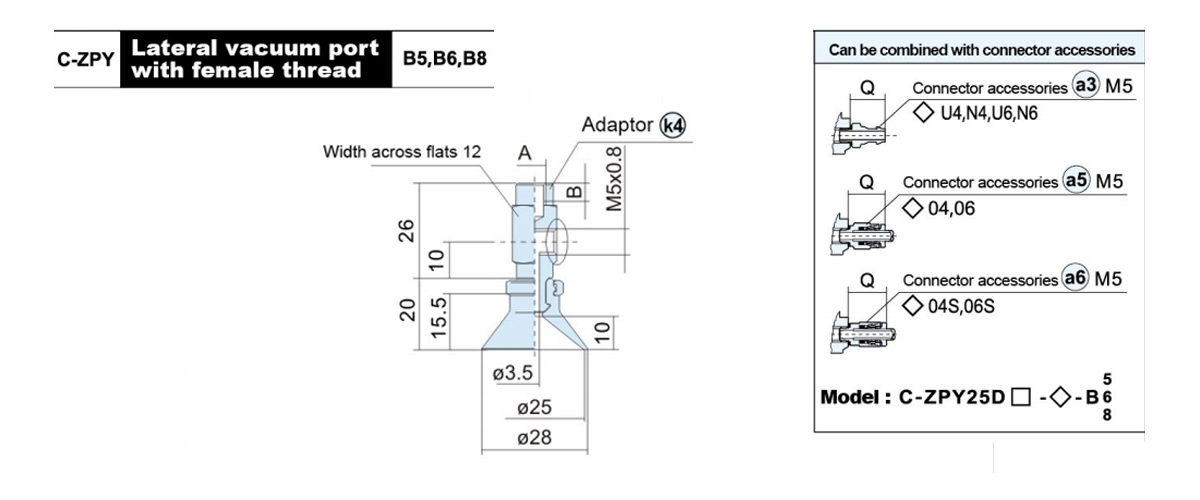

Model	A	B	Adaptor Model
C-ZPY25D□-B5-B5	M5×0.8	5	ZPY3-B5-B5
C-ZPY25D□-B5-B6	M6×1.0	6	ZPY3-B5-B6
C-ZPY25D□-B5-B8	M8×1.25	8	ZPY3-B5-B8
□ Material:NBR(N),Silicone(S)

Model	B	C	L	m1 i4 Bumper Support Model
C-ZPT25D□●10-B5-A10	10	23	47	ZPT3-●10-B5-A10
C-ZPT25D□●20-B5-A10	20	51	85	ZPT3-●20-B5-A10
C-ZPT25D□●30-B5-A10	30		95	ZPT3-●30-B5-A10
C-ZPT25D□●40-B5-A10	40	77	131	ZPT3-●40-B5-A10
C-ZPT25D□●50-B5-A10	50		141	ZPT3-●50-B5-A10
□Material:NBR(N),Silicone(S) ■Buffer stroke(mm):10,20,30,40,50 ●Height compensator type:Rotative(J) Unable to rotate(K)

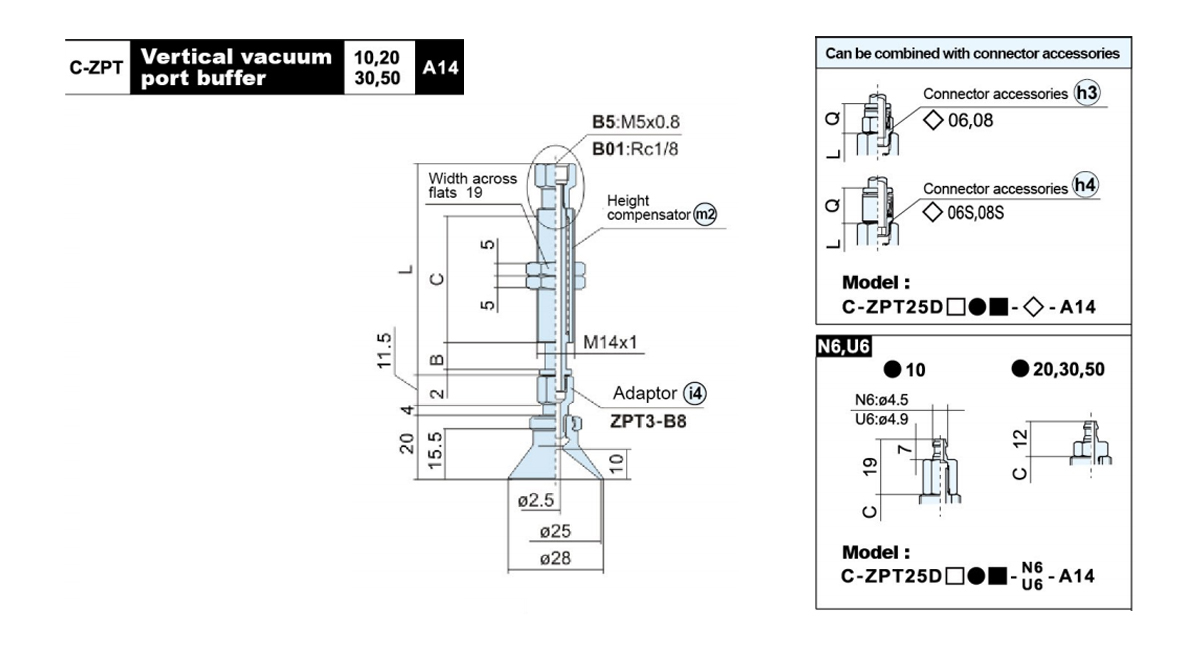

Model	B	C	L	m2 i4 Bumper Support Model
C-ZPT25D□●10-B5-A14	10	50	77	ZPT3-●10-B5-A14
C-ZPT25D□●20-B5-A14	20		81	ZPT3-●20-B5-A14
C-ZPT25D□●30-B5-A14	30		91	ZPT3-●30-B5-A14
C-ZPT25D□●50-B5-A14	50	75	136	ZPT3-●50-B5-A14
C-ZPT25D□●10-B01-A14	10	50	78.5	ZPT3-●10-B01-A14
C-ZPT25D□●20-B01-A14	20		84	ZPT3-●20-B01-A14
C-ZPT25D□●30-B01-A14	30		94	ZPT3-●30-B01-A14
C-ZPT25D□●50-B01-A14	50	75	139	ZPT3-●50-B01-A14
□Material:NBR(N),Silicone(S) ■Buffer stroke(mm):10,20,30,50 ● Height compensator type:Rotative(J) Unable to rotate(K)

Model	B	C	L	m3 j4 Bumper Support Model
C-ZPR25D□●10-◇-A10	10	23	45	ZPR3-●10-◇-A10
C-ZPR25D□●20-◇-A10	20	51	83	ZPR3-●20-◇-A10
C-ZPR25D□●30-◇-A10	30	51	93	ZPR3-●30-◇-A10
C-ZPR25D□●40-◇-A10	40	77	129	ZPR3-●40-◇-A10
C-ZPR25D□●50-◇-A10	50	77	139	ZPR3-●50-◇-A10
□Material:NBR(N),Silicone(S) ●Height compensator type:Rotative(J) ◇Vacuum portconnection:04,06,08 Unable to rotate(K)

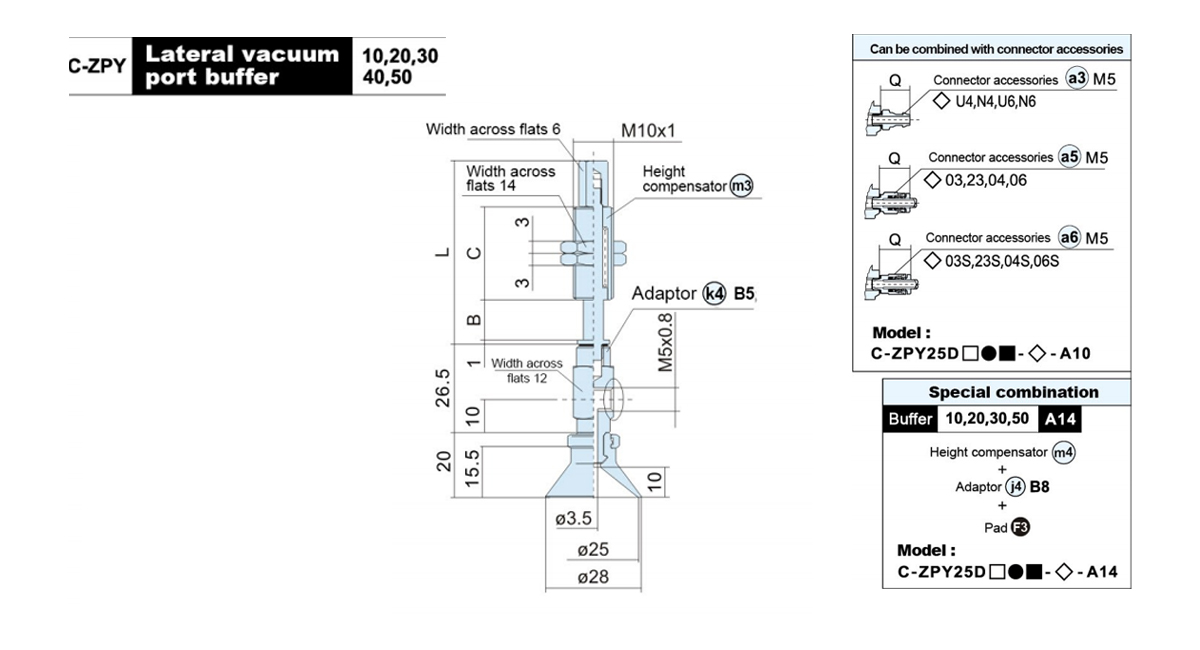

Model	B	C	L	m3 k4 Bumper Support Model
C-ZPY25D□●10-B5-A10	10	23	45	ZPY3-●10-B5-A10
C-ZPY25D□●20-B5-A10	20	51	83	ZPY3-●20-B5-A10
C-ZPY25D□●30-B5-A10	30	51	93	ZPY3-●30-B5-A10
C-ZPY25D□●40-B5-A10	40	77	129	ZPY3-●40-B5-A10
C-ZPY25D□●50-B5-A10	50	77	139	ZPY3-●50-B5-A10
□Material:NBR(N),Silicone(S) ●Height compensator type:Rotative(J) ■ Buffer stroke(mm):10,20,30,40,50 Unable to rotate(K)

Model	A	ØB	C	L	Adaptor Model
C-ZPT40D□-A6	M6×1.0	3.5	8	32	ZPT4-A6
C-ZPT40D□-A8	M8×1.0	4.5	12	22	ZPT4-A8
C-ZPT40D□-A01	-	-	-	-	ZPT4-A01
□Material:NBR(N),Silicone(S)

Model	A	B	C	Adaptor Model
C-ZPT40D□-B6	M6×1.0	6	4.5	ZPT4-B6
C-ZPT40D□-B8	M8×1.25	8	6.8	ZPT4-B8
C-ZPT40D□-B01	Rc1/8	6.2	6.8	ZPT4-B01
□Material:NBR(N),Silicone(S)

Model	A	E	L	Adaptor Model
C-ZPR40D□-◇-A6	M6×1.0	8	68	ZPR4-◇-A6
C-ZPR40D□-◇-A8	M8×1.0	12	58	ZPR4-◇-A8
□Material:NBR(N),Silicone(S) ◇Vacuum port connection:06,08

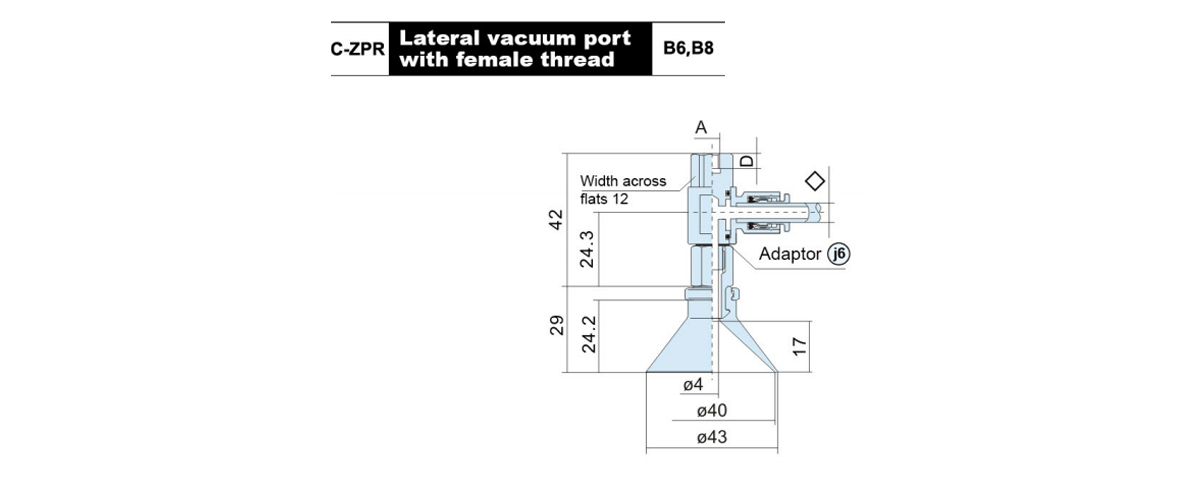

Model	A	D	Adaptor Model
C-ZPR40D□-◇-B6	M6×1.0	6	ZPR4-◇-B6
C-ZPR40D□-◇-B8	M8×1.25	8	ZPR4-◇-B8
□Material:NBR(N),Silicone(S) ◇Vacuum port connection:06,08

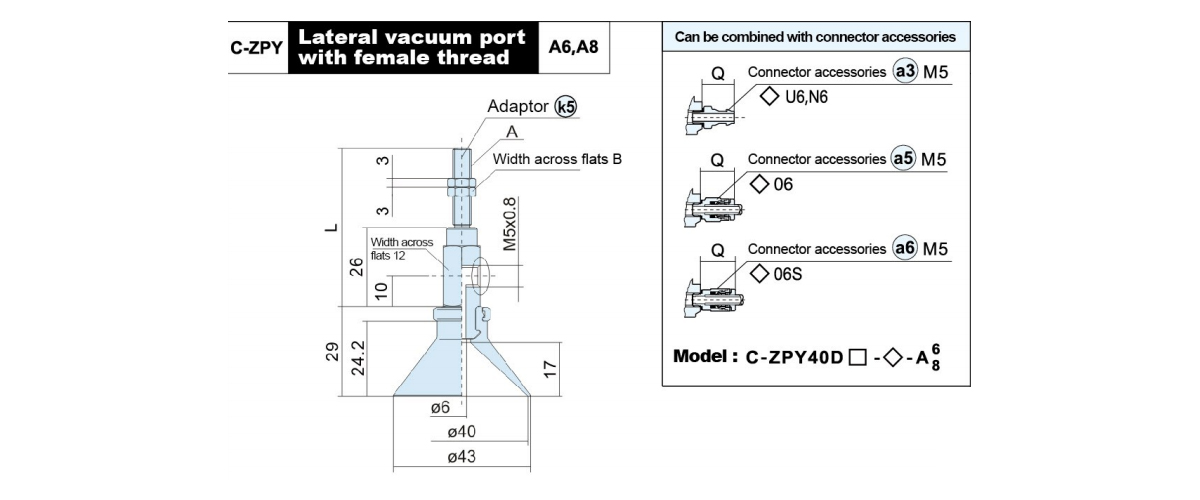

Model	A	B	L	Adaptor Model
C-ZPY40D□-B5-A6	M6×1.0	8	54	ZPY4-B5-A6
C-ZPY40D□-B5-A8	M8×1.0	12	44	ZPY4-B5-A8
□Material:NBR(N),Silicone(S)

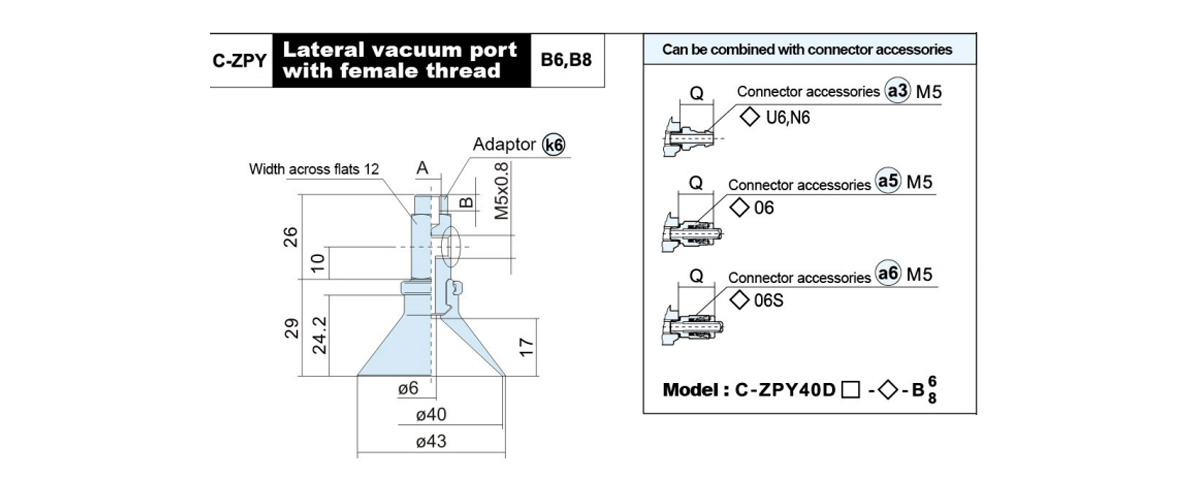

Model	A	B	Adaptor Model
C-ZPY40D□-B5-B6	M6×1.0	6	ZPY3-B5-B6
C-ZPY40D□-B5-B8	M8×1.25	8	ZPY3-B5-B8
□Material:NBR(N),Silicone(S)

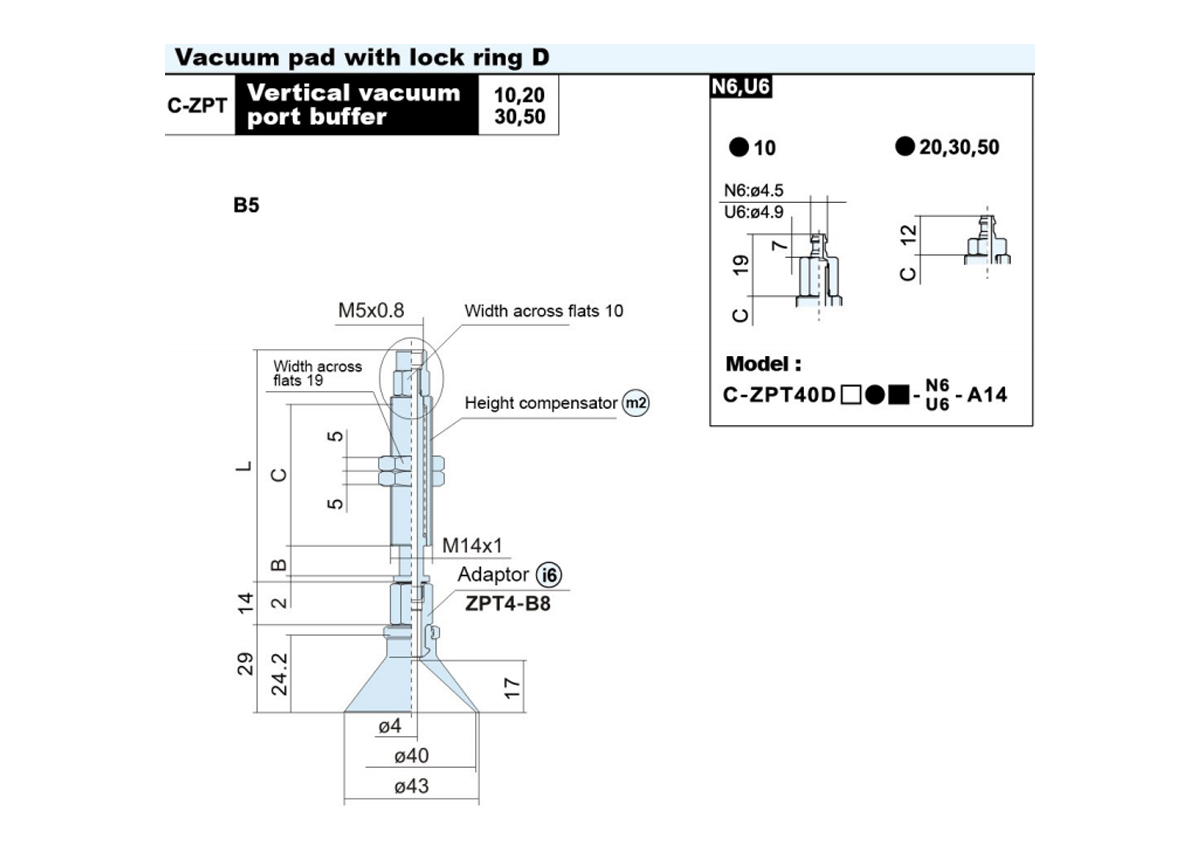

Model	B	C	L	m2 i6 Bumper Support Model
C-ZPT40D□●10-B5-A14	10	50	77	ZPT4-●10-B5-A14
C-ZPT40D□●20-B5-A14	20		81	ZPT4-●20-B5-A14
C-ZPT40D□●30-B5-A14	30		91	ZPT4-●30-B5-A14
C-ZPT40D□●50-B5-A14	50	75	136	ZPT4-●50-B5-A14
□ Material:NBR(N),Silicone(S) ● Height compensator type:Rotative(J),Unable to rotate(K) ■ Buffer stroke(mm):10,20,30,50

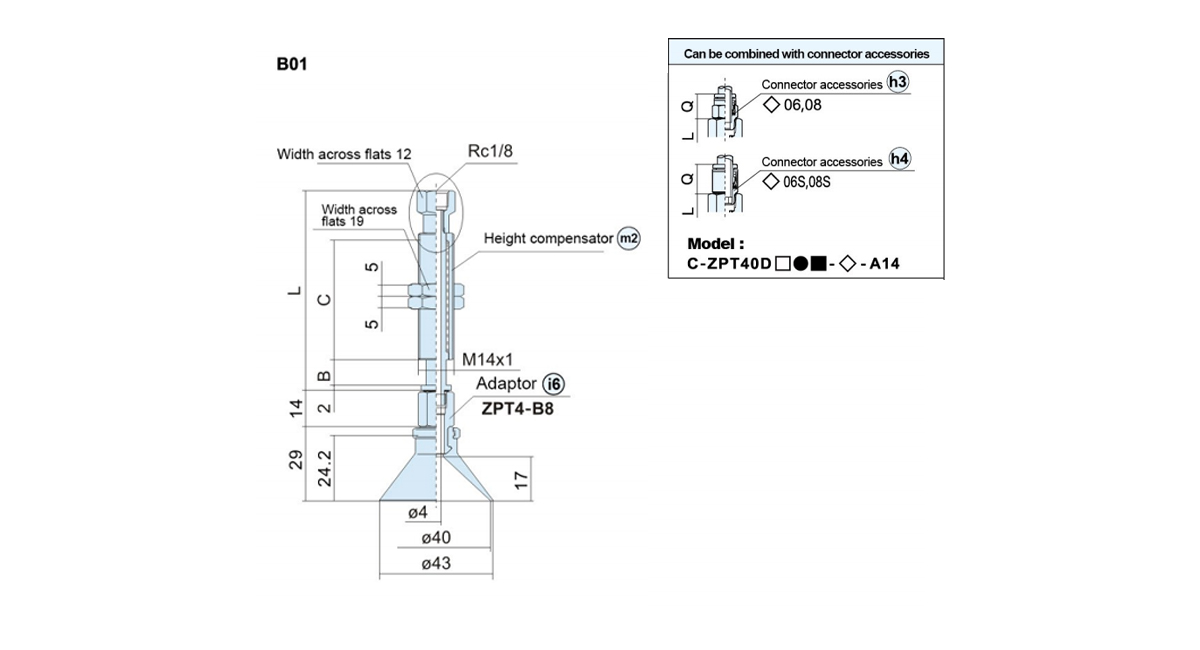

Model	B	C	L	m2 i6 Bumper Support Model
C-ZPT40D□●10-B01-A14	10	50	78.5	ZPT4-●10-B01-A14
C-ZPT40D□●20-B01-A14	20		84	ZPT4-●20-B01-A14
C-ZPT40D□●30-B01-A14	30		94	ZPT4-●30-B01-A14
C-ZPT40D□●50-B01-A14	50	75	139	ZPT4-●50-B01-A14
□ Material:NBR(N),Silicone(S) ● Height compensator type:Rotative(J),Unable to rotate(K) ■ Buffer stroke(mm):10,20,30,50

Model	B	C	L	m4 j6 Bumper Support Model
C-ZPR40D□●10-◇-A14	10	50	80	ZPR4-●10-◇-A14
C-ZPR40D□●20-◇-A14	20		77	ZPR4-●20-◇-A14
C-ZPR40D□●30-◇-A14	30		87	ZPR4-●30-◇-A14
C-ZPR40D□●50-◇-A14	50	75	132	ZPR4-●50-◇-A14
□ Material:NBR(N),Silicone(S) ◇Vacuum port connection:06,08 ● Height compensator type:Rotative(J) Unable to rotate(K)

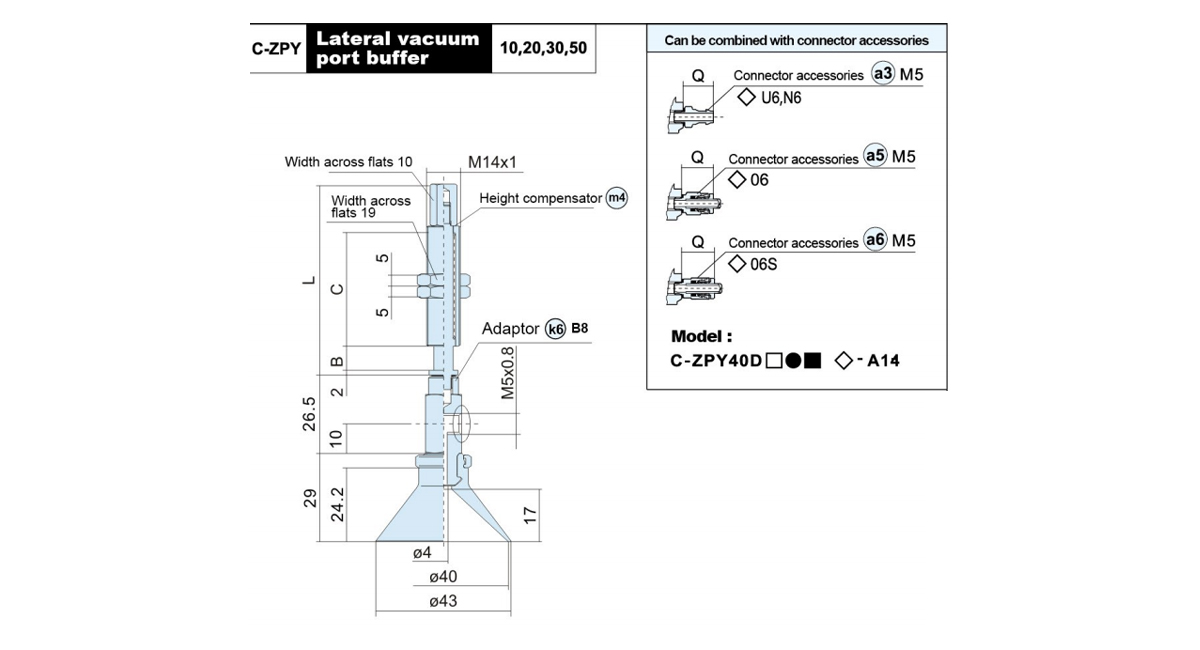

Model	B	C	L	m4 k6 Bumper Support Model
C-ZPY40D□●10-◇-A14	10	50	80	ZPY4-●10-◇-A14
C-ZPY40D□●20-◇-A14	20		77	ZPY4-●20-◇-A14
C-ZPY40D□●30-◇-A14	30		87	ZPY4-●30-◇-A14
C-ZPY40D□●50-◇-A14	50	75	132	ZPY4-●50-◇-A14
□ Material:NBR(N),Silicone(S) ■Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J) Unable to rotate(K)

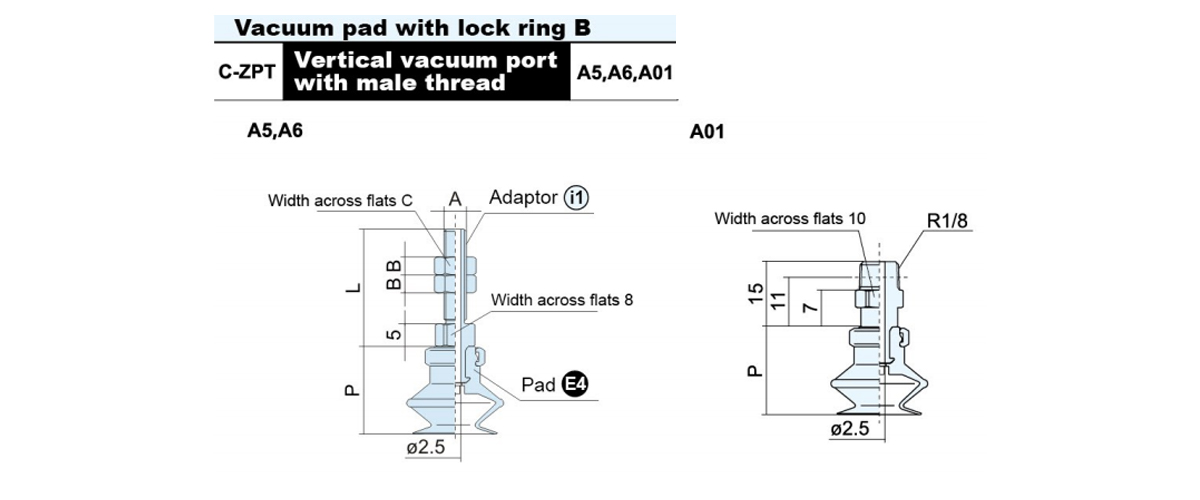

Model	A	B	C	L	○Pad Diameter		P	Adaptor Model
					10	13	16
C-ZPT○B□-A5	M5×0.8	7	4	26	16	18.5	20	ZPT2-A5
C-ZPT○B□-A6	M6×1.0	8	3	31				ZPT2-A6
C-ZPT○B□-A01	-	-	-					ZPT2-A01
○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)

Model	A	B	○Pad Diameter		P	Adaptor Model
			10	13	16
C-ZPT○B□-B5	M5×0.8	5	16	18.5	20	ZPT2-B5
C-ZPT○B□-B6	M6×1.0	6				ZPT2-B6
C-ZPT○B□-B01	-	-				ZPT2-B01
○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)

Model	A	D	E	L	○Pad Diameter		P	Adaptor Model
					10	13	16
C-ZPR○B□-◇-A5	M5×0.8	4	7	55	16	18.5	20	ZPR2-◇-A5
C-ZPR○B□-◇-A6	M6×1.0	3	8	60				ZPR2-◇-A6
○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06

Model	A	D	○Pad Diameter		P	Adaptor Model
			10	13	16
C-ZPR○B□-◇-B5	M5×0.8	5	16	18.5	20	ZPR2-◇-B5
C-ZPR○B□-◇-B6	M6×1.0	6				ZPR2-◇-B6
○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06

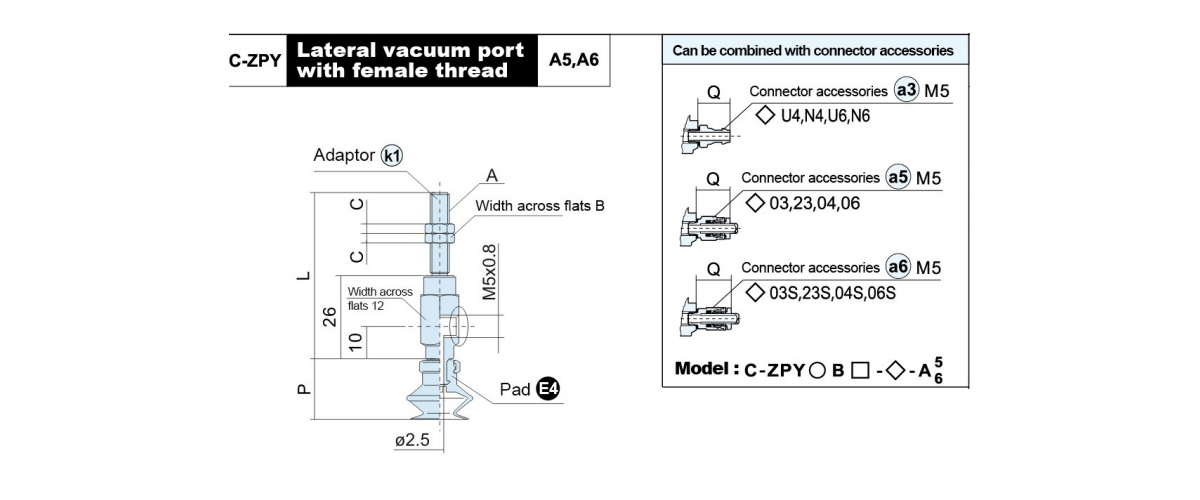

Model	A	B	C	L	○Pad Diameter		P	Adaptor Model
					10	13	16
C-ZPY○B□-B5-A5	M5×0.8	7	4	47	16	18.5	20	ZPY2-B5-A5
C-ZPY○B□-B5-A6	M6×1.0	8	3	52				ZPY2-B5-A6
○Symbol of pad diameter:10,13,16			Material:NBR(N),Silicone(S)

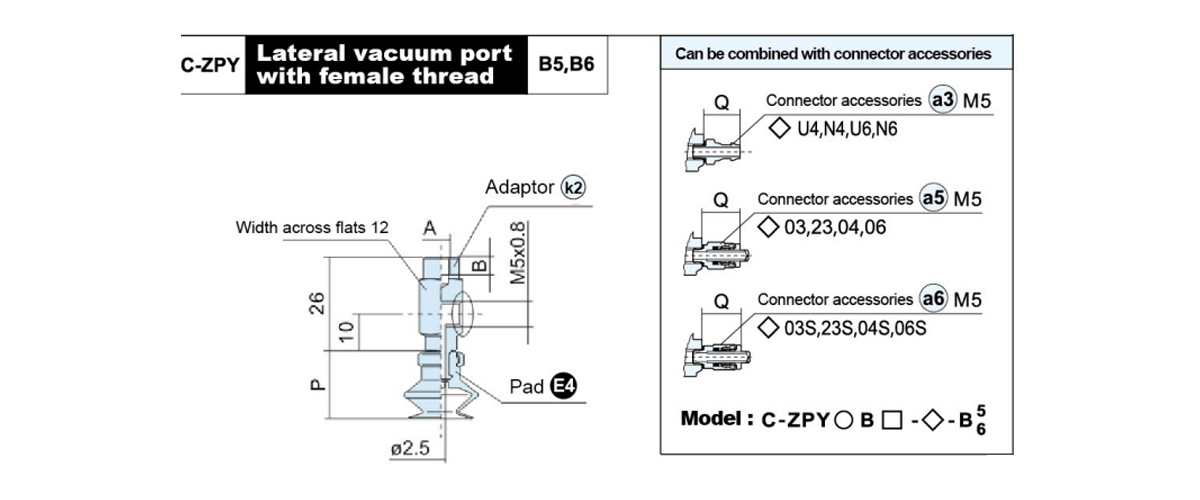

Model	A	B	○Pad Diameter		P	Adaptor Model
			10	13	16
C-ZPY○B□-B5-B5	M5×0.8	5	16	18.5	20	ZPY2-B5-B5
C-ZPY○B□-B5-B6	M6×1.0	6				ZPY2-B5-B6
○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)

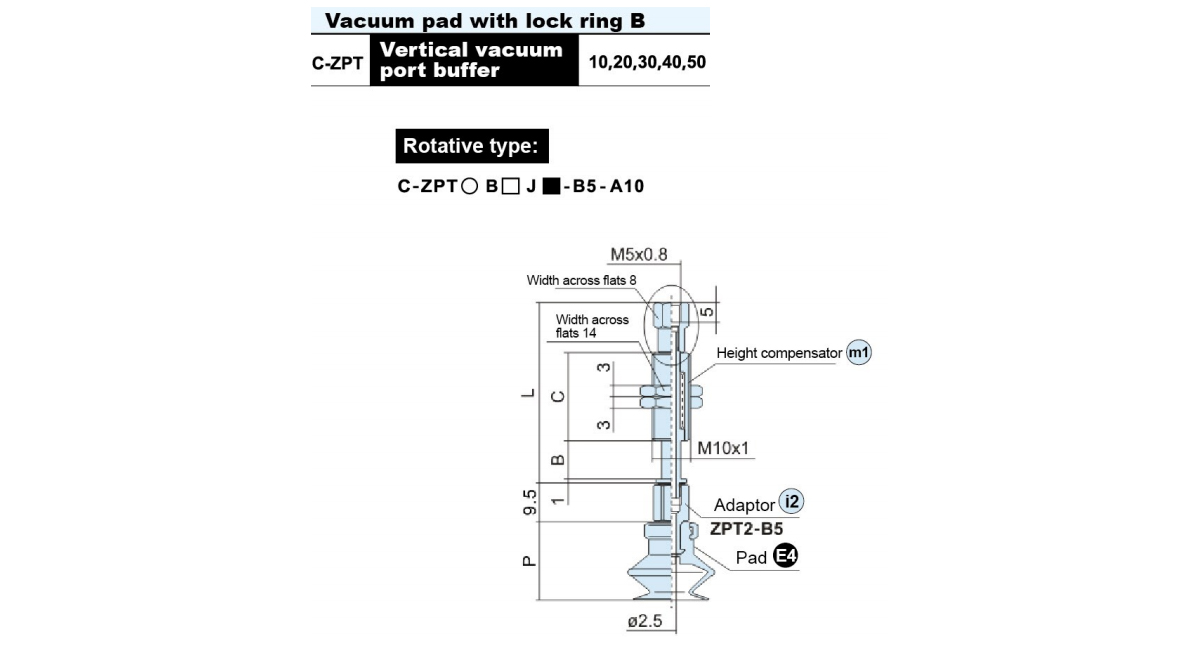

Model	B	C	L	○Pad Diameter P			m1 i2 Bumper Support Model
				10	13	16
C-ZPT○ B□ J10-B5-A10	10	23	47	16	18.5	20	ZPT2-J10-B5-A10
C-ZPT○ B□ J20-B5-A10	20	51	85				ZPT2-J20-B5-A10
C-ZPT○ B□ J30-B5-A10	30		95				ZPT2-J30-B5-A10
C-ZPT○ B□J40-B5-A10	40	77	131				ZPT2-J40-B5-A10
C-ZPT○ B□J50-B5-A10	50		141				ZPT3-J50-B5-A10
○ Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J) Unable to rotate(K)

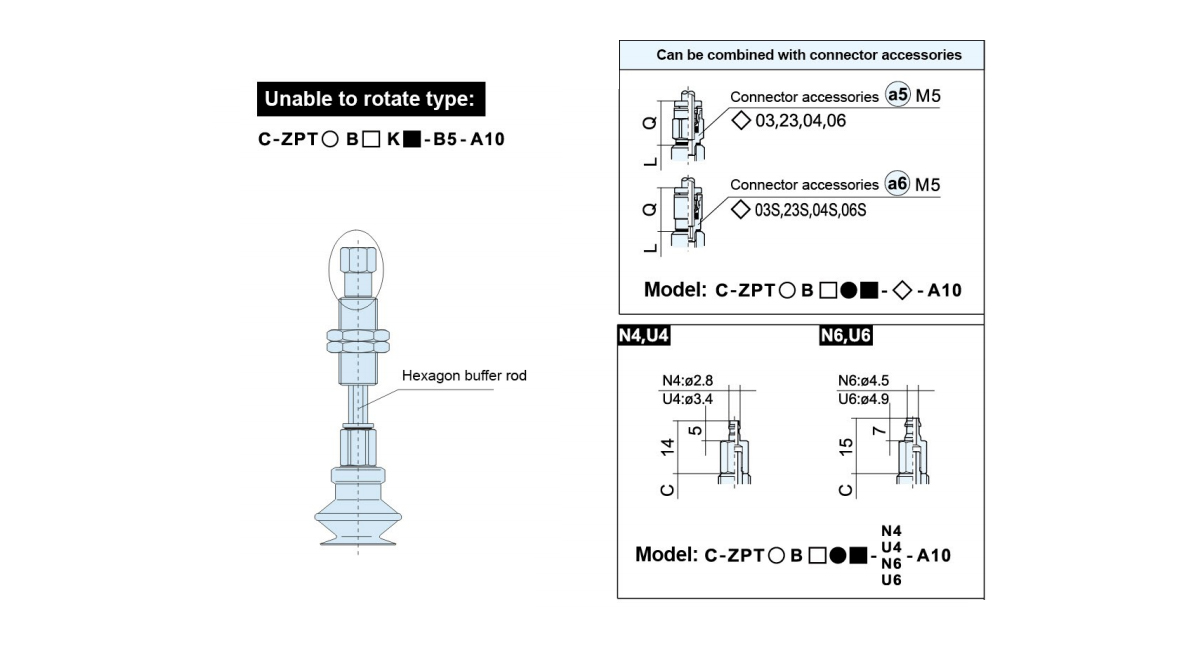

Model	B	C	L	○Pad Diameter		P	m1 i2 Bumper Support Model
				10	13	16
C-ZPT○ B□K10-B5-A10	10	23	47	16	18.5	20	ZPT2-K10-B5-A10
C-ZPT○ B□K20-B5-A10	20	51	85				ZPT2-K20-B5-A10
C-ZPT○ B□K30-B5-A10	30		95				ZPT2-K30-B5-A10
C-ZPT○ B□K40-B5-A10	40	77	131				ZPT2-K40-B5-A10
C-ZPT○ B□K50-B5-A10	50		141				ZPT3-K50-B5-A10
○ Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J) Unable to rotate(K)

Model	B	C	L	○ Pad Diameter		P	m3 j2 Bumper Support Model
				10	13	16
C-ZPR○ B□●10-◇-A10	10	23	45	16	18.5	20	ZPR2-●10-◇-A10
C-ZPR○ B□●20-◇-A10	20	51	83				ZPR2-●20-◇-A10
C-ZPR○ B□●30-◇-A10	30		93				ZPR2-●30-◇-A10
C-ZPR○ B□●40-◇-A10	40	77	129				ZPR2-●40-◇-A10
C-ZPR○ B□●50-◇-A10	50		139				ZPR2-●50-◇-A10
○ Symbol of pad diameter:10,13,16 ◇Vacuum port connection:04,06 □ Material:NBR(N),Silicone(S) ● Height compensator type:Rotative(J) Unable to rotate(K)

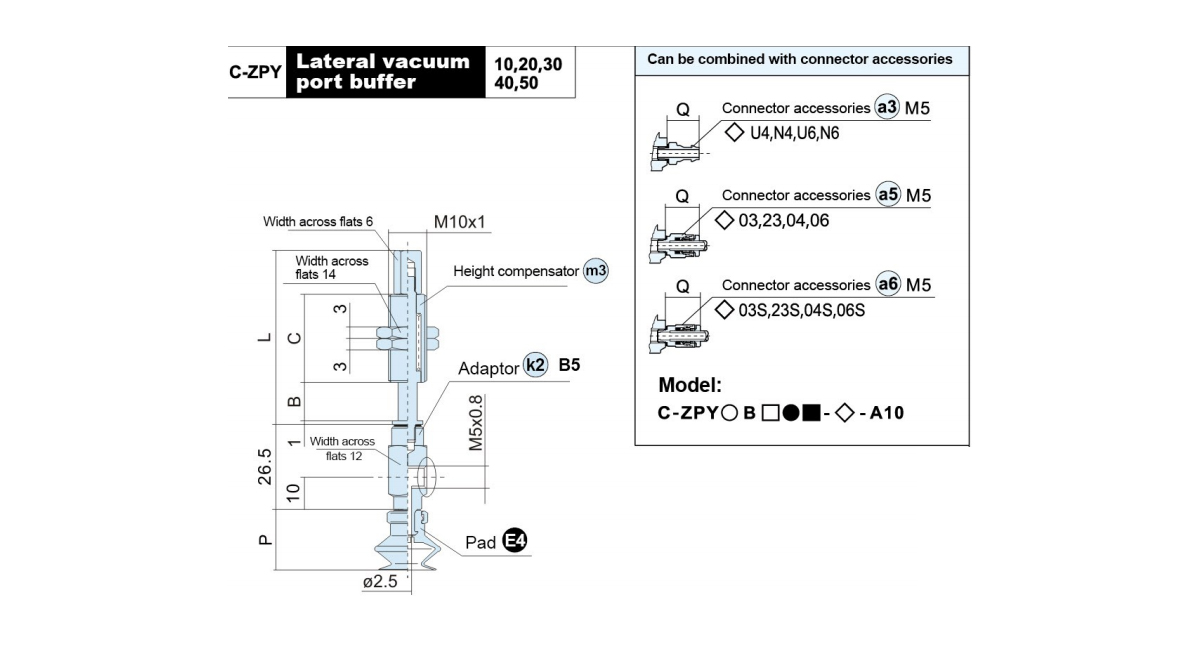

Model	B	C	L	○ Pad Diameter		P	m3 j2 Bumper Support Model
				10	13	16
C-ZPY○B□●10-B5-A10	10	23	45	16	18.5	20	ZPY2-●10-B5-A10
C-ZPY○B□●20-B5-A10	20	51	83				ZPY2-●20-B5-A10
C-ZPY○B□●30-B5-A10	30		93				ZPY2-●30-B5-A10
C-ZPY○B□●40-B5-A10	40	77	129				ZPY2-●40-B5-A10
C-ZPY○B□●50-B5-A10	50		139				ZPY2-●50-B5-A10
○ Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06 Buffer stroke(mm):10,20,30,40,50

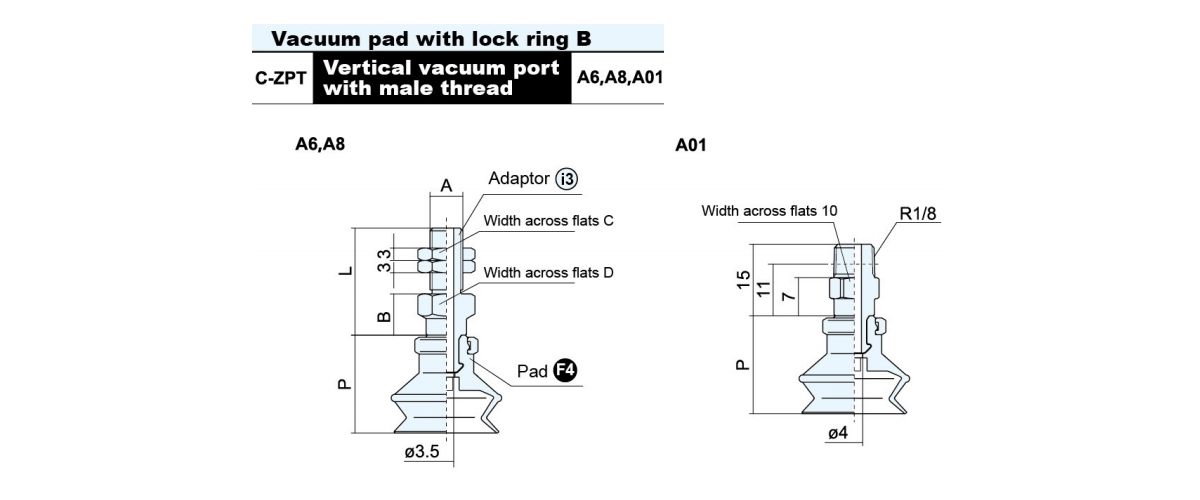

Model	A	B	C	D	L	○Pad Diameter		P	Adaptor Model
						20	25	32
C-ZPT○B□-A6	M6×1.0	5	8	8	31	23.5	24	29	ZPT3-A6
C-ZPT○B□-A8	M8×1.0	10	12	12	26				ZPT3-A8
C-ZPT○B□-A01	-	-	-	-	-				ZPT3-A01
○ Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)

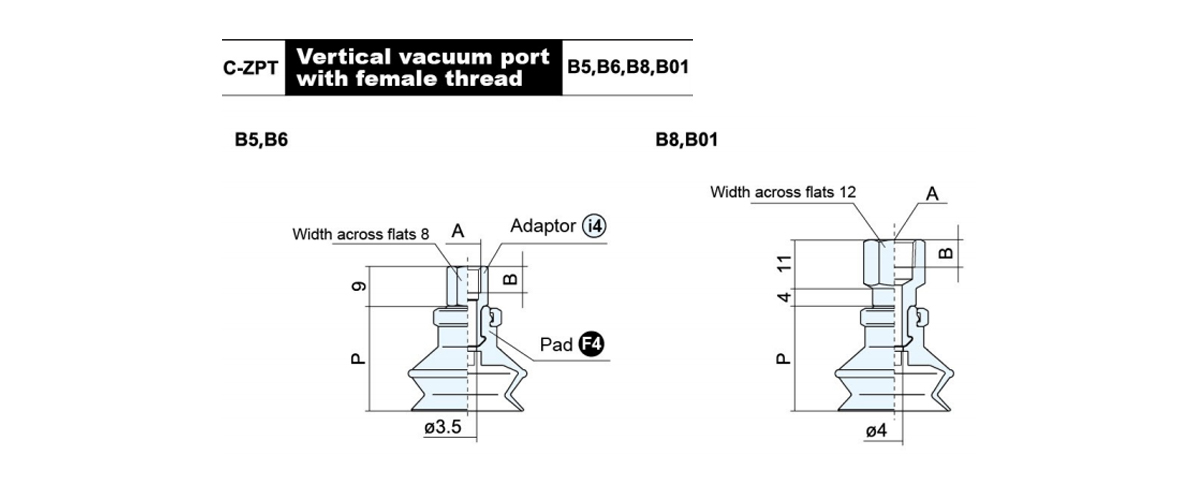

Model	A	B	○Pad Diameter		P	Adaptor Model
			20	25	32
C-ZPT○B□-B5	M5×0.8	5	23.5	24	29	ZPT3-B5
C-ZPT○B□-B6	M6×1.0	6				ZPT3-B6
C-ZPT○B□-B6	M8×1.25	8				ZPT3-B8
C-ZPT○B□-B01	Rc1/8	6.2				ZPT3-B01
○ Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)

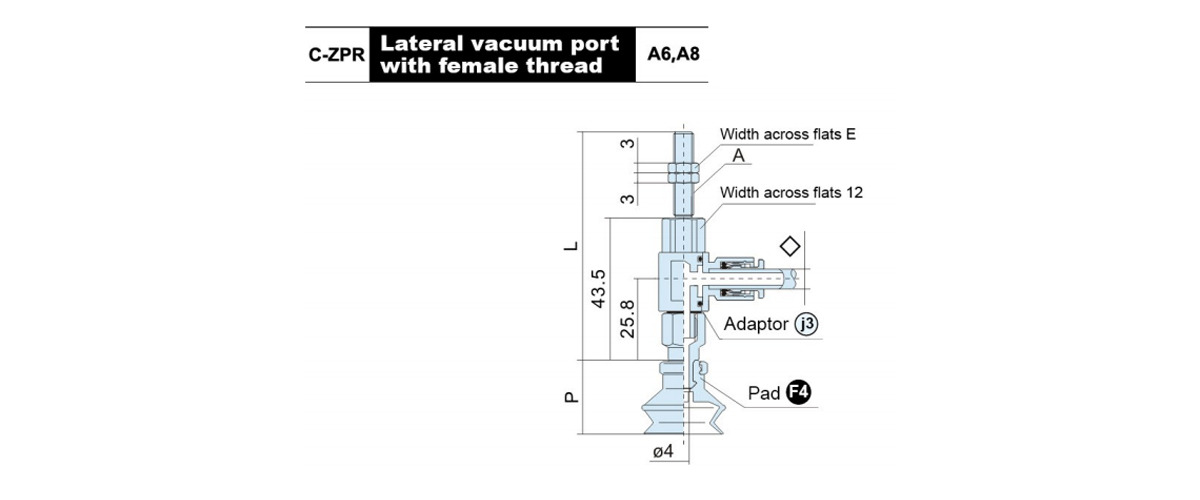

Model	A	E	L	○Pad Diameter		P	Adaptor Model
				20	25	32
C-ZPR○B□-◇-A6	M6×1.0	8	69.5	23.5	24	29	ZPR3-◇-A6
C-ZPR○B□-◇-A8	M8×1.0	12	59.5				ZPR3-◇-A8
○ Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06,08

Model	A	D	○Pad Diameter		P	Adaptor Model
			20	25	32
C-ZPR○B□-◇-B5	M5×0.8	5	23.5	24	29	ZPR3-◇-B5
C-ZPR○B□-◇-B6	M6×1.0	6				ZPR3-◇-B6
C-ZPR○B□-◇-B8	M8×1.25	8				ZPR3-◇-B8
○ Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S) ◇ Vacuum port connection:04.06.08

Model	A	B	L	○Pad Diameter		P	Adaptor Model
				20	25	32
C-ZPY○B□-B5-A6	M6×1.0	8	54	23.5	24	29	ZPY3-B5-A6
C-ZPY○B□-B5-A8	M8×1.0	12	44				ZPY3-B5-A8
○ Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)

Model	A	B	○ Pad Diameter		P	Adaptor Model
			20	25	32
C-ZPY○B□-B5-B5	M5×0.8	5	23.5	24	29	ZPY3-B5-B5
C-ZPY○B□-B5-B6	M6×1.0	6				ZPY3-B5-B6
C-ZPY○B□-B5-B8	M8×1.25	8				ZPY3-B5-B8
○ Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)

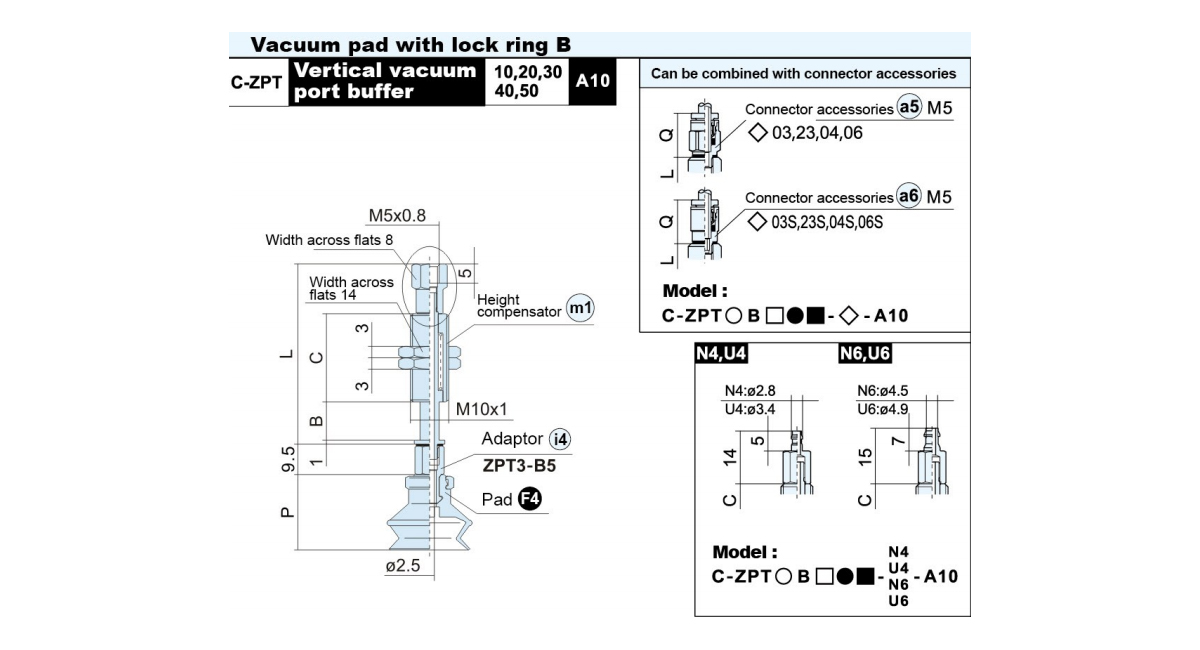

Model	B	C	L	○ Pad Diameter		P	m1 i4 Bumper Support Model
				20	25	32
C-ZPT○B□●10-B5-A10	10	23	47	23.5	24	29	ZPT3-●10-B5-A10
C-ZPT○B□●20-B5-A10	20	51	85				ZPT3-●20-B5-A10
C-ZPT○B□●30-B5-A10	30		95				ZPT3-●30-B5-A10
C-ZPT○B□●40-B5-A10	40	77	131				ZPT3-●40-B5-A10
C-ZPT○B□●50-B5-A10	50		141				ZPT3-●50-B5-A10
○ Symbol of pad diameter:20,25,32 ■ Buffer stroke(mm):10,20,30,40,50 □ Material:NBR(N),Silicone(S) ●Height compensator type:Rotative(J) Unable to rotate(K)

Model	B	C	L	○Pad diameter		P	m2 i4 Bumper Support Model
Model	B	C	L	20	25	32	m2 i4 Bumper Support Model
C-ZPT○B□●10-B5-A14	10	50	77	23.5	24	29	ZPT3-●10-B5-A14
C-ZPT○B□●20-B5-A14	20		81				ZPT3-●20-B5-A14
C-ZPT○B□●30-B5-A14	30		91				ZPT3-●30-B5-A14
C-ZPT○B□●50-B5-A14	50	75	136				ZPT3-●50-B5-A14
C-ZPT○B□●10-B01-A14	10	50	78.5				ZPT3-●10-B01-A14
C-ZPT○B□●20-B01-A14	20		84				ZPT3-●20-B01-A14
C-ZPT○B□●30-B01-A14	30		94				ZPT3-●30-B01-A14
C-ZPT○B□●50-B01-A14	50	75	139				ZPT3-●50-B01-A14
○ Symbol of pad diameter:20,25,32 ■ Buffer stroke(mm):10,20,30,40,50 □ Material:NBR(N),Silicone(S) ● Height compensator type:Rotative(J) Unable to rotate(K)

Model	B	C	L	○Pad diameter			m3 j4 Bumper Support Model
				20	25	32
C-ZPR○B□O10-◇-A10	10	23	45	23.5	24	29	ZPR3-●10-◇-A10
C-ZPR○B□● 20-◇-A10	20	51	83				ZPR3-●20-◇-A10
C-ZPR○B□●30-◇-A10	30		93				ZPR3-●30-◇-A10
C-ZPR○B□● 40-◇-A10	40	77	129				ZPR3-●40-◇-A10
C-ZPR○B□● 50-◇-A10	50		139				ZPR3-●50-◇-A10
○ Symbol of pad diameter:20,25,32 ◇ Vacuum port connection:04,06,08 □ Material:NBR(N),Silicone(S) ●Height compensator type:Rotative(J) Unable to rotate(K)

Model	B	C	L	○ Pad Diameter		P	m3 k4 Bumper Support Model
				20	25	32
C-ZPY○B□●10-B5-A10	10	23	45	23.5	24	29	ZPY3-●10-B5-A10
C-ZPY○B□●20-B5-A10	20	51	83				ZPY3-●20-B5-A10
C-ZPY○B□●30-B5-A10	30		93				ZPY3-●30-B5-A10
C-ZPY○B□●40-B5-A10	40	77	129				ZPY3-●40-B5-A10
C-ZPY○B□●50-B5-A10	50		139				ZPY3-●50-B5-A10
○ Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ●Height compensator type:Rotative(J) Unable to rotate(K)

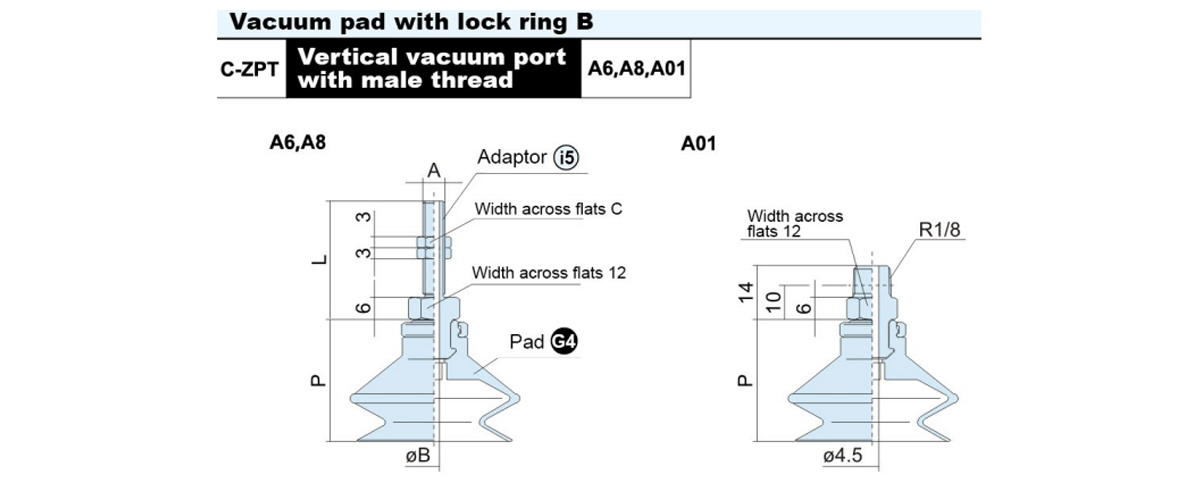

Model	A	ØB	C	L	○Pad Diameter P		Adaptor Model
					40	50
C-ZPT○B□-A6	M6×1.0	3.5	8	32	34	38	ZPT4-A6
C-ZPT○B□-A8	M8×1.0	4.5	12	22			ZPT4-A8
C-ZPT○B□-A01	-		-	-			ZPT4-A01
○ Symbol of pad diameter:40,50 □ Material:NBR(N),Silicone(S)

Model	A	B	oC	○Pad Diameter P		Adaptor Model
				40	50
C-ZPT○OB□-B6	M6×1.0	6	4.5	34	38	ZPT4-B6
C-ZPT○B□-B8	M8×1.25	8	6.8			ZPT4-B8
C-ZPT○B□-B01	Rc1/8	6.2				ZPT4-B01
○ Symbol of pad diameter:40,50 □ Material:NBR(N),Silicone(S)

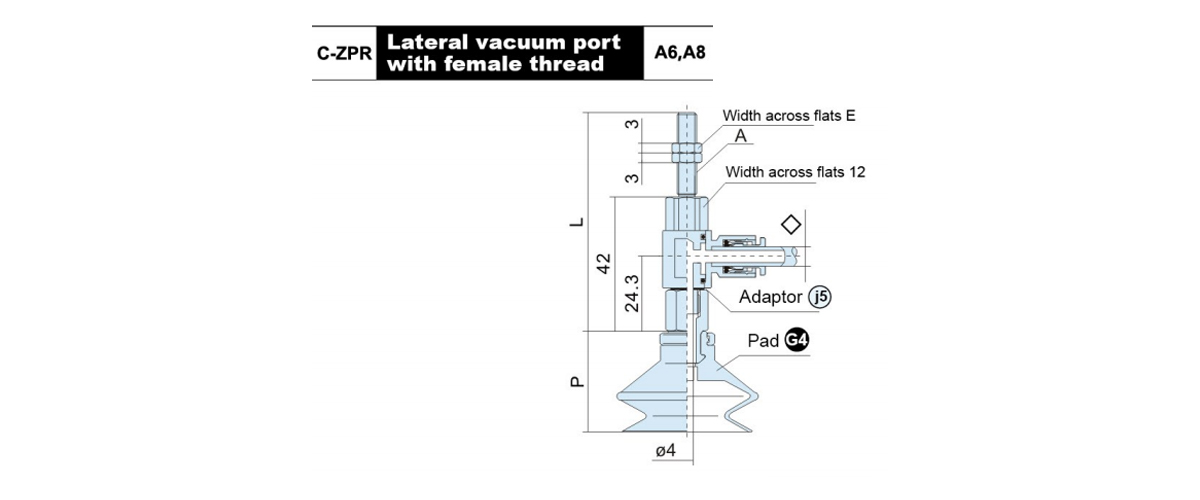

Model	A	E	L	○Pad Diameter P		Adaptor Model
				40	50
C-ZPR○B□-◇ -A6	M6×1.0	8	68	34	38	ZPR4-◇-A6
C-ZPR○B□-◇-A8	M8×1.0	12	58			ZPR4-◇-A8
○ Symbol of pad diameter:40,50 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:06,08

Model	A	D	○Pad Diameter P		Adaptor Model
			40	50
C-ZPR○B□-◇-B6	M6×1.0	6	34	38	ZPR4-◇-B6
C-ZPR○B□-◇-B8	M8×1.25	8			ZPR4-◇-B8
○ Symbol of pad dameter:40,50 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:06,08

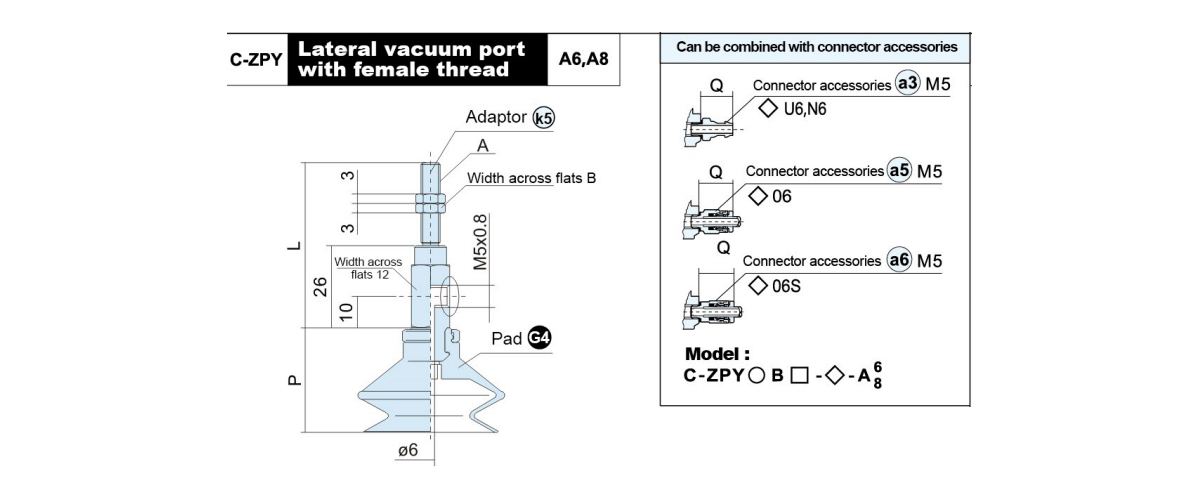

Model	A	B	L	○Pad Diameter P		Adaptor Model
				40	50
C-ZPY○B□-B5-A6	M6×1.0	8	54	34	38	ZPY4-B5-A6
C-ZPY○B□-B5-A8	M8×1.0	12	44			ZPY4-B5-A8
○ Symbol of pad diameter:40,50 □ Material:NBR(N),Silicone(S)

Model	A	B	○Pad Diameter P		Adaptor Model
			40	50
C-ZPY○B□-B5-B6	M6×1.0	6	34	38	ZPY3-B5-B6
C-ZPY○B□-B5-B8	M8×1.25	8			ZPY3-B5-B8
○ Symbol of pad diameter:40,50 □ Material:NBR(N),Silicone(S)

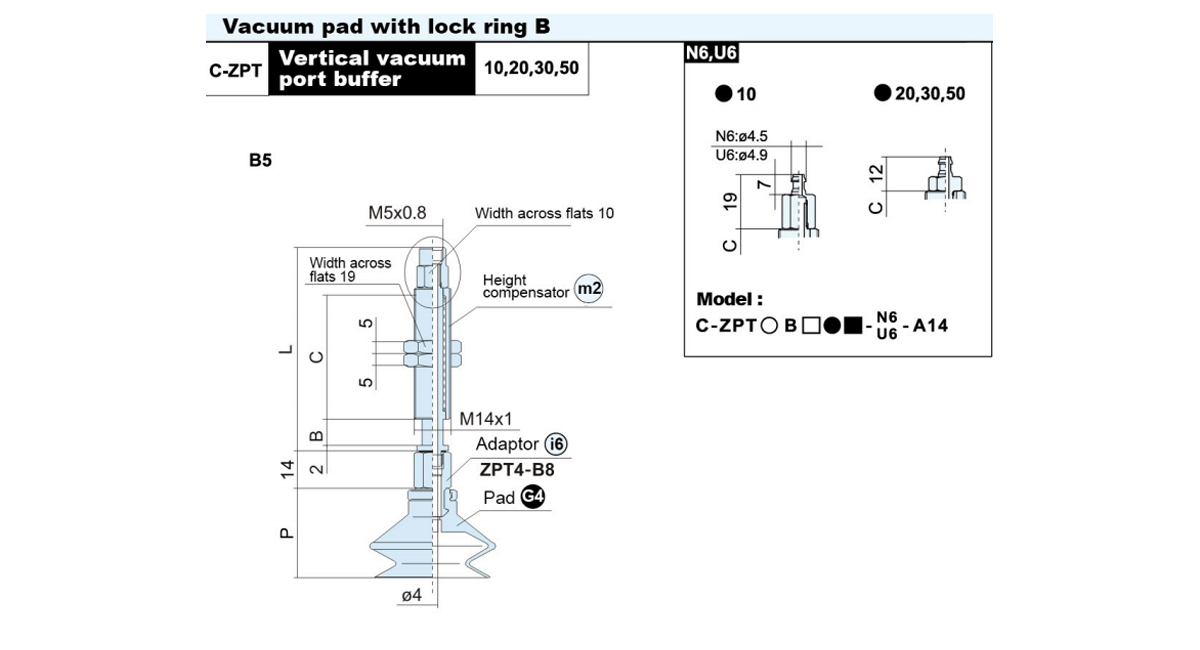

Model	B	C	L	○ Pad Diameter P		m2 i6 Bumper Support Model
				40	50
C-ZPT○B□●10-B5-A14	10	50	77	34	38	ZPT4-●10-B5-A14
C-ZPT○B□●20-B5-A14	20		81			ZPT4-●20-B5-A14
C-ZPT○B□●30-B5-A14	30		91			ZPT4-●30-B5-A14
C-ZPT○B□●50-B5-A14	50	75	136			ZPT4-●50-B5-A14
○ Symbol of pad diameter:40,50 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,50 ●Height compensator type:Rotative(J),Unable to rotate(K)

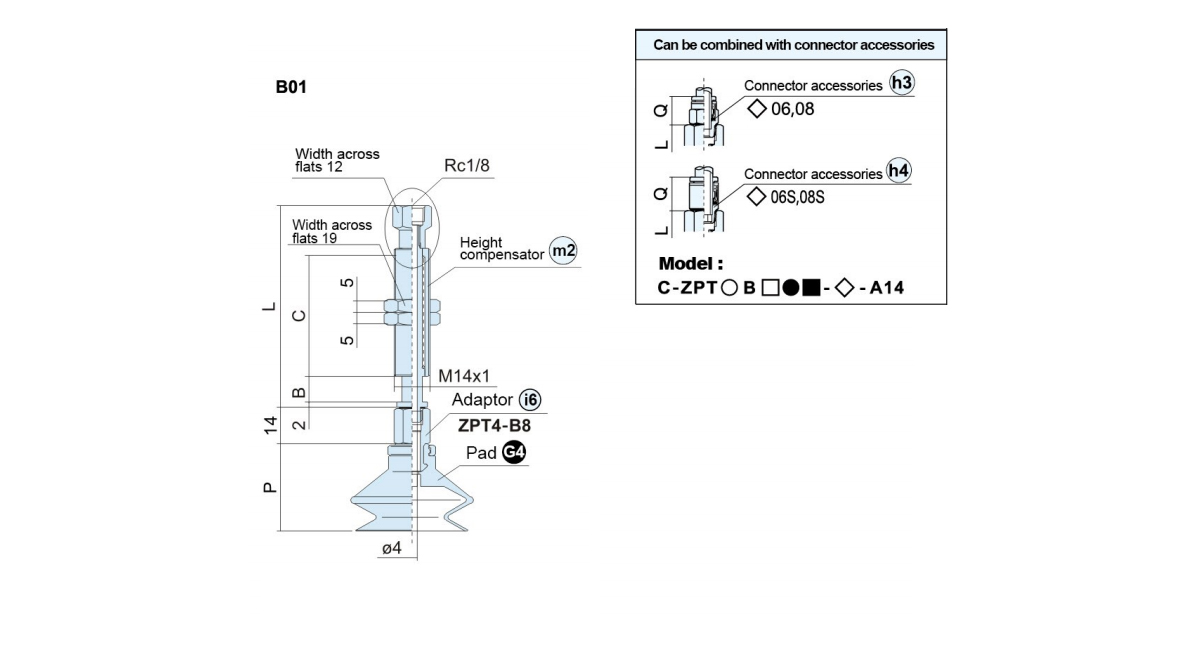

Model	B	C	L	○Pad Diameter P		m2 i6 Bumper Support Model
				40	50
C-ZPT○B□●10-B01-A14	10	50	78.5	34	38	ZPT4-●10-B01-A14
C-ZPT○B□●20-B01-A14	20		84			ZPT4-●20-B01-A14
C-ZPT○B□●30-B01-A14	30		94			ZPT4-●30-B01-A14
C-ZPT○B□●50-B01-A14	50	75	139			ZPT4-●50-B01-A14
○ Symbol of pad diameter:40,50 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,50 ●Height compensator type:Rotative(J),Unable to rotate(K)

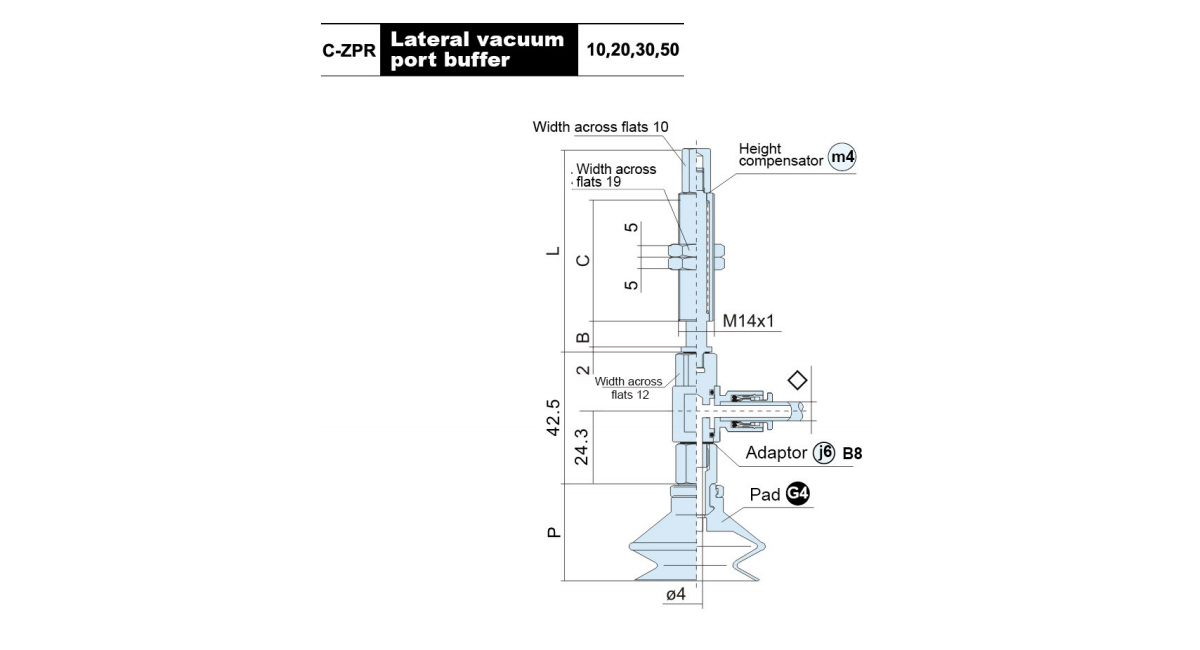

Model	B	C	L	○Pad Diameter P		m4 j6 Bumper Support Model
				40	50
C-ZPR○B□●10-◇-A14	10	50	80	34	38	ZPR4-●10-◇-A14
C-ZPR○B□●20-◇-A14	20		77			ZPR4-●20-◇-A14
C-ZPR○B□●30-◇-A14	30		87			ZPR4-●30-◇-A14
C-ZPR○B□●50-◇-A14	50	75	132			ZPR4-●50-◇-A14
○ Symbol of pad diameter:40,50 ◇Vacuum port connection:06,08 □ Material:NBR(N),Silicone(S) ●Height compensator type:Rotative(J) Unable to rotate(K)

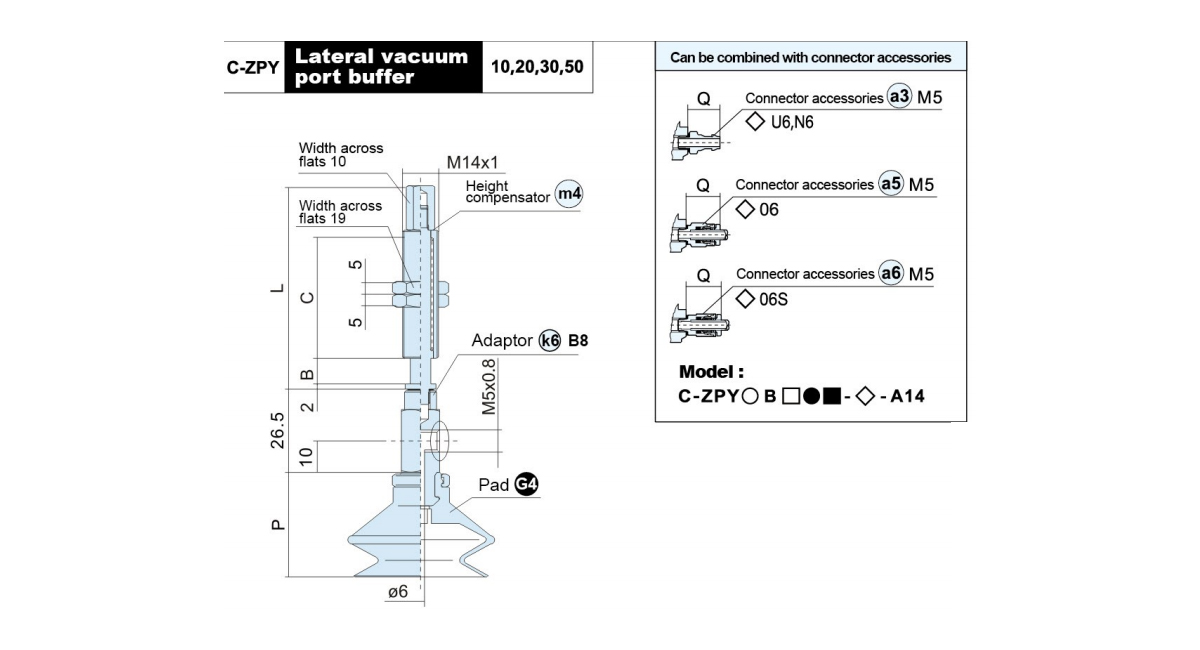

Model	B	C	L	○Pad Diameter P		m4 k6 Bumper Support Model
				40	50
C-ZPY○B□●10-◇-A14	10	50	80	34	38	ZPY4-●10-◇-A14
C-ZPY○B□●20-◇-A14	20		77			ZPY4-●20-◇-A14
C-ZPY○B□●30-◇-A14	30		87			ZPY4-●30-◇-A14
C-ZPY○B□●50-◇-A14	50	75	132			ZPY4-●50-◇-A14
○ Symbo of pad diameter:40,50 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,50 ●Height compensator type:Rotative(J) Unable to rotate(K)

Model	A	B	C	L	○ Pad Diameter		P	Adaptor Model
					09	14	16
C-ZPT○J□-A5	M5×0.8	7	4	26	18	24	24	ZPT2-A5
C-ZPT○J□-A6	M6×1.0	8	3	31				ZPT2-A6
C-ZPT○J□-A01	-	-	-	-				ZPT2-A01
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Silicone(S)

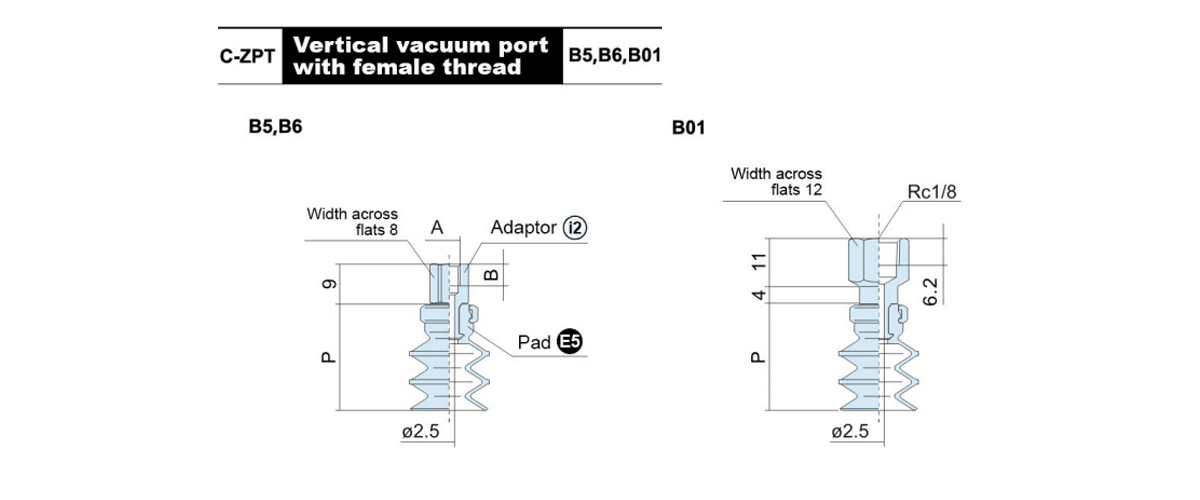

Model	A	B	○Pad Diameter		P	Adaptor Model
			09	14	16
C-ZPT○J□-B5	M5×0.8	5	18	24	24	ZPT2-B5
C-ZPT○J□-B6	M6×1.0	6				ZPT2-B6
C-ZPT○J□-B01	-	-				ZPT2-B01
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Silicone(S)

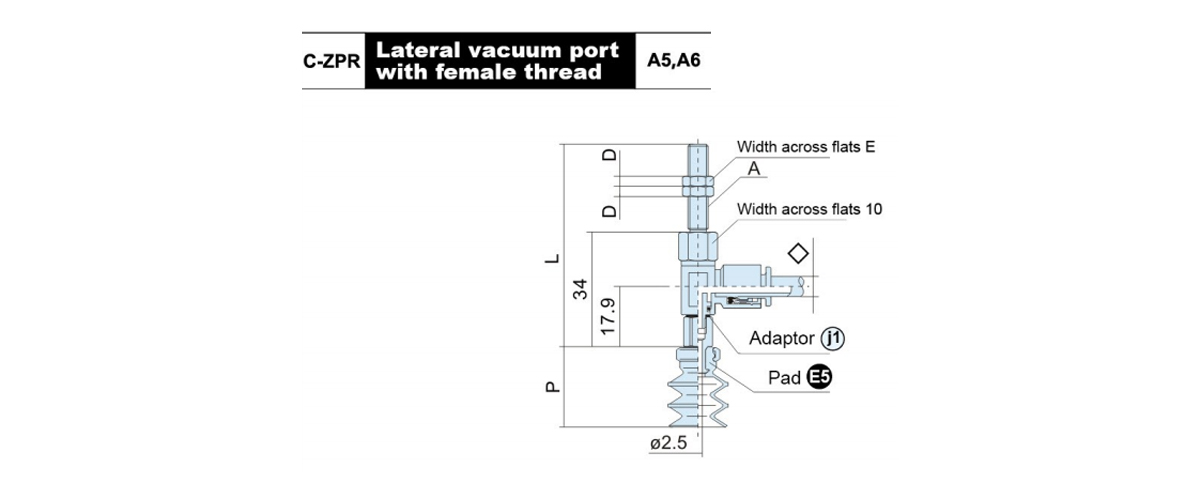

Model	A	D	E	L	O Pad Diameter		P	Adaptor Model
					09	14	16
C-ZPR○J□-◇-A5	M5×0.8	4	7	55	18	24	24	ZPR2-◇-A5
C-ZPR○J□-◇-A6	M6×1.0	3	8	60				ZPR2-◇-A6
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06

Model	A	D	○Pad Diameter		P	Adaptor Model
			09	14	16
C-ZPR○J□-◇-B5	M5×0.8	5	18	24	24	ZPR2-◇-B5
C-ZPR○J□-◇-B6	M6×1.0	6				ZPR2-◇-B6
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06

Model	A	B	C	L	○ Pad Diameter		P	Adaptor Model
					09	14	16
C-ZPY○J□-B5-A5	M5×0.8	7	4	47	18	24	24	ZPY2-B5-A5
C-ZPY○J□-B5-A6	M6×1.0	8	3	52				ZPY2-B5-A6
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Silicone(S)

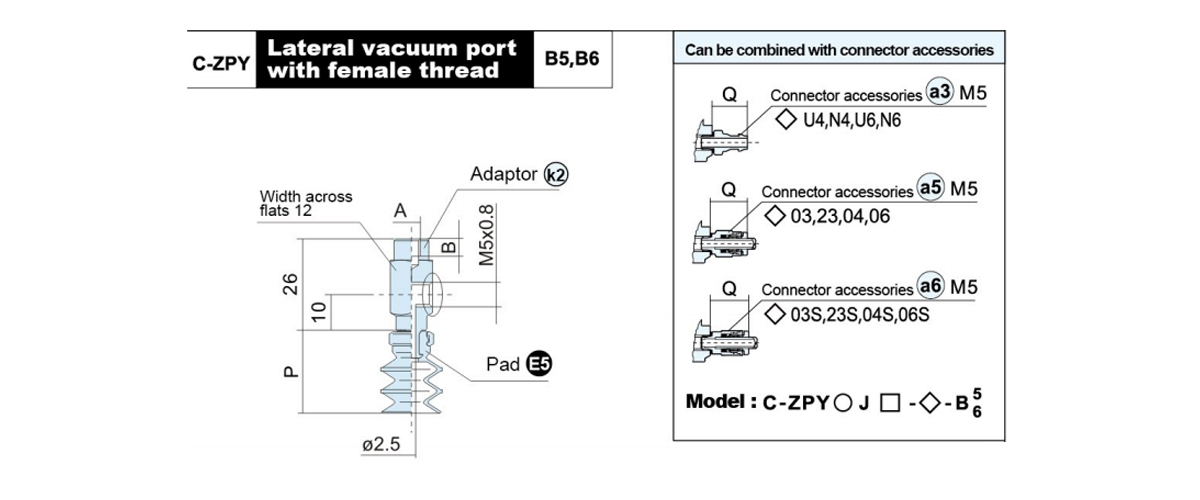

Model	A	B	○ Pad Diameter		P	Adaptor Model
			09	14	16
C-ZPY○J□-B5-B5	M5×0.8	5	18	24	24	ZPY2-B5-B5
C-ZPY○J□-B5-B6	M6×1.0	6				ZPY2-B5-B6
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Silicone(S)

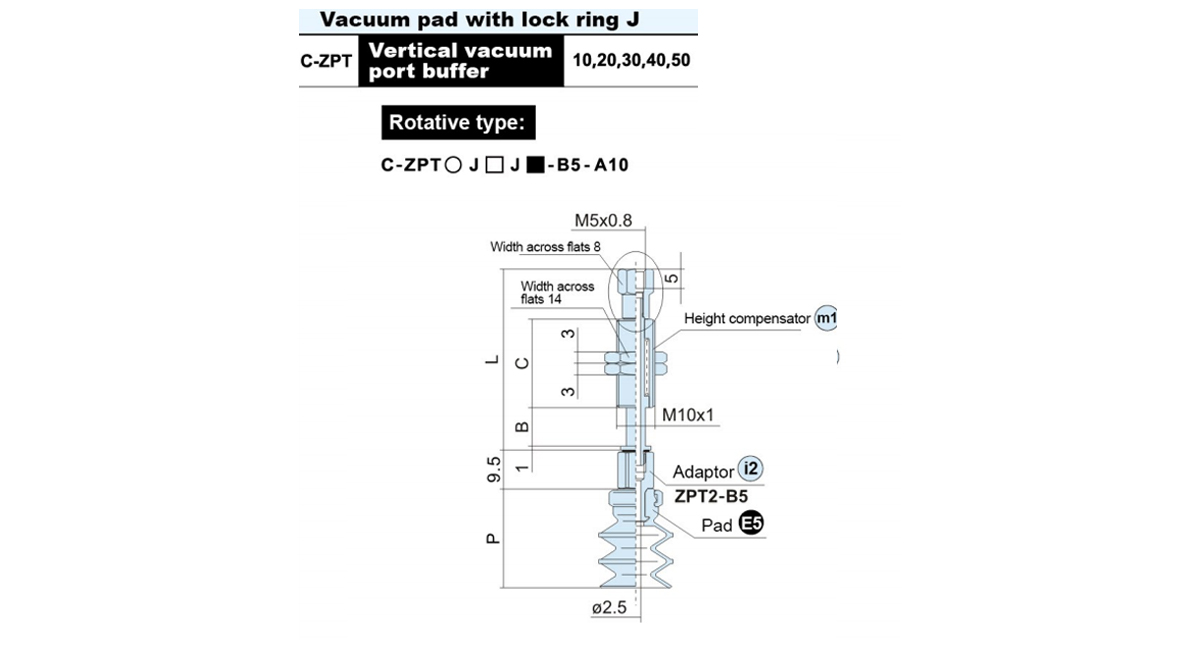

Model	B	C	L	○Pad Diameter		P	m1 i2 Bumper Support Model
				09	14	16
C-ZPT○J□J10-B5-A10	10	23	47	18	24	24	ZPT2-J10-B5-A10
C-ZPT○J□J20-B5-A10	20	51	85				ZPT2-J20-B5-A10
C-ZPT○J□J30-B5-A10	30		95				ZPT2-J30-B5-A10
C-ZPT○J□J40-B5-A10	40	77	131				ZPT2-J40-B5-A10
C-ZPT○J□J50-B5-A10	50		141				ZPT3-J50-B5-A10
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Slicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J),Unable to rotate(K)

Model	B	C	L	○ Pad Diameter		P	m1 i2 Bumper Support Model
				09	14	16
C-ZPT○J□K10-B5-A10	10	23	47	18	24	24	ZPT2-K10-B5-A10
C-ZPT○J□K20-B5-A10	20	51	85				ZPT2-K20-B5-A10
C-ZPT○J□K30-B5-A10	30		95				ZPT2-K30-B5-A10
C-ZPT○J□K40-B5-A10	40	77	131				ZPT2-K40-B5-A10
C-ZPT○J□K50-B5-A10	50		141				ZPT3-K50-B5-A10
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Slicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J),Unable to rotate(K)

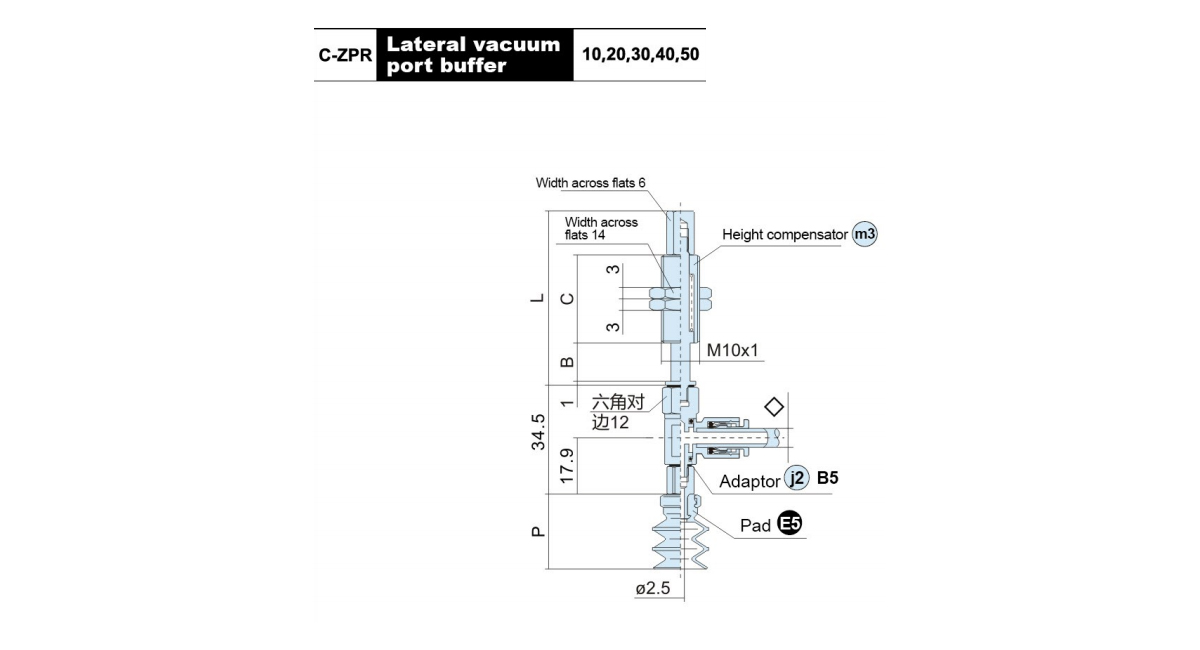

Model	B	C	L	○ Pad Diameter P			m3 j2 Bumper Support Model
				09	14	16
C-ZPR○J□●10-◇-A10	10	23	45	18	24	24	ZPR2-●10-◇-A10
C-ZPR○J□●20-◇-A10	20	51	83				ZPR2-●20-◇-A10
C-ZPR○J□●30-◇-A10	30		93				ZPR2-●30-◇-A10
C-ZPR○J□●40-◇-A10	40	77	129				ZPR2-●40-◇-A10
C-ZPR○J□●50-◇-A10	50		139				ZPR2-●50-◇-A10
○ Symbol of pad diameter:09,14,16 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06 ● Height compensator type:Rotative(J) Unable to rotate(K)

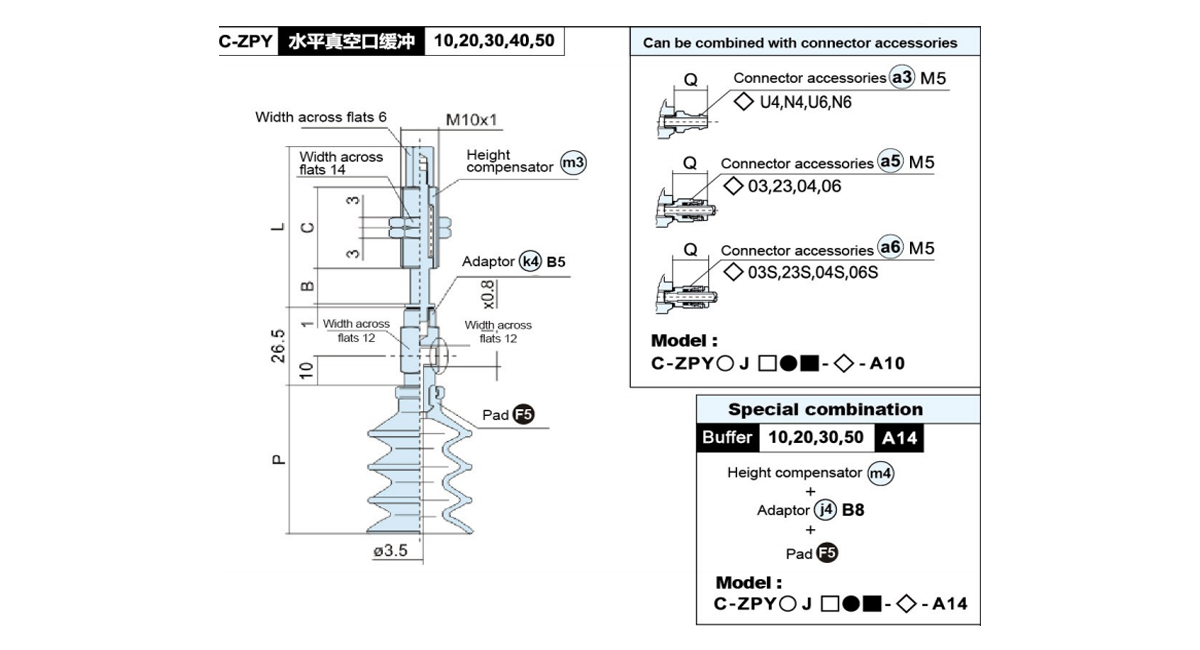

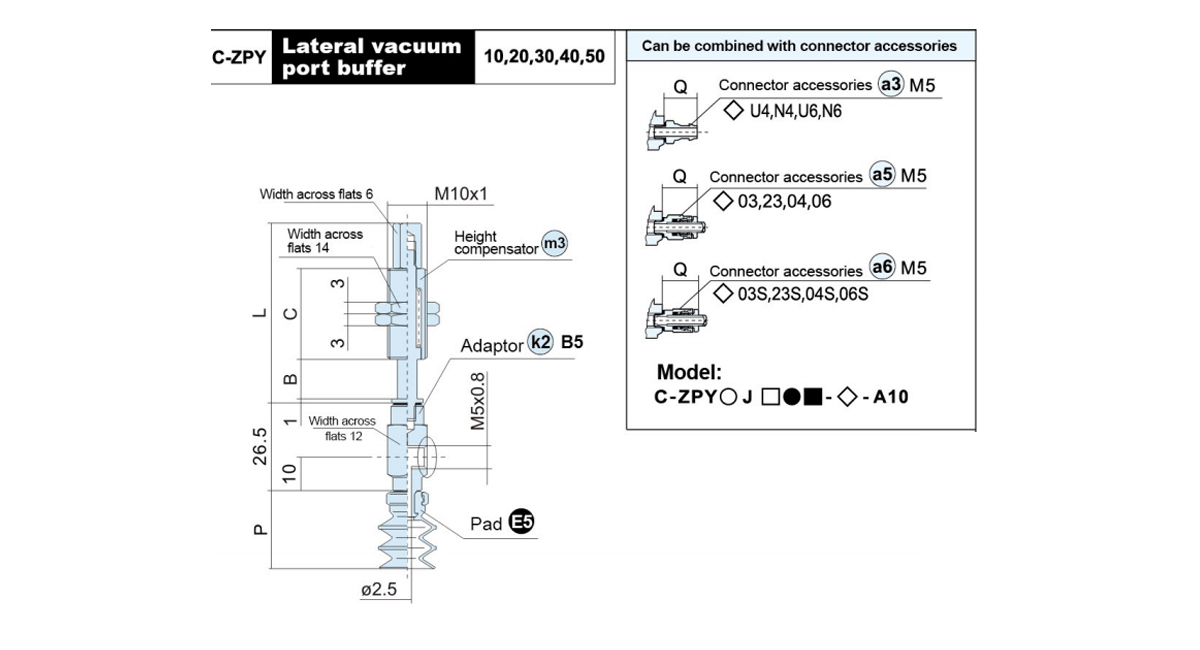

Model	B	C	L	○ Pad Diameter P			m3 j2 Bumper Support Model
				09	14	16
C-ZPY○J□●10-B5-A10	10	23	45	18	24	40	ZPY2-●10-B5-A10
C-ZPY○J□●20-B5-A10	20	51	83				ZPY2-●20-B5-A10
C-ZPY○J□●30-B5-A10	30		93				ZPY2-●30-B5-A10
C-ZPY○J□●40-B5-A10	40	77	129				ZPY2-●40-B5-A10
C-ZPY○J□●50-B5-A10	50		139				ZPY2-●50-B5-A10
○ Symbol of pad diameter:09,14,16 ◇Vacuum port connection:04,06 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,40,50

Model	A	B	C	D	L	○Pad Diameter	P	Adaptor Model
Model	A	B	C	D	L	25	30	Adaptor Model

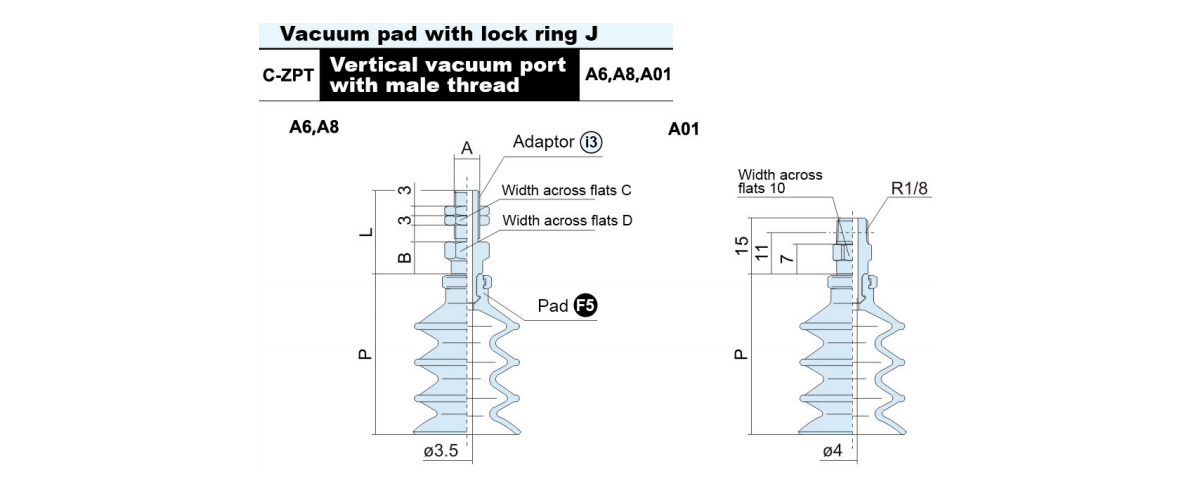

C-ZPT○J□-A6	M6×1.0	5	8	8	31	42.5	44.5	ZPT3-A6
C-ZPT○J□-A8	M8×1.0	10	12	12	26			ZPT3-A8
C-ZPT○J□-A01	-	-	-	-	-			ZPT3-A01
○ Symbol of pad diameter:25,30 □ Material:NBR(N),Silicone(S)

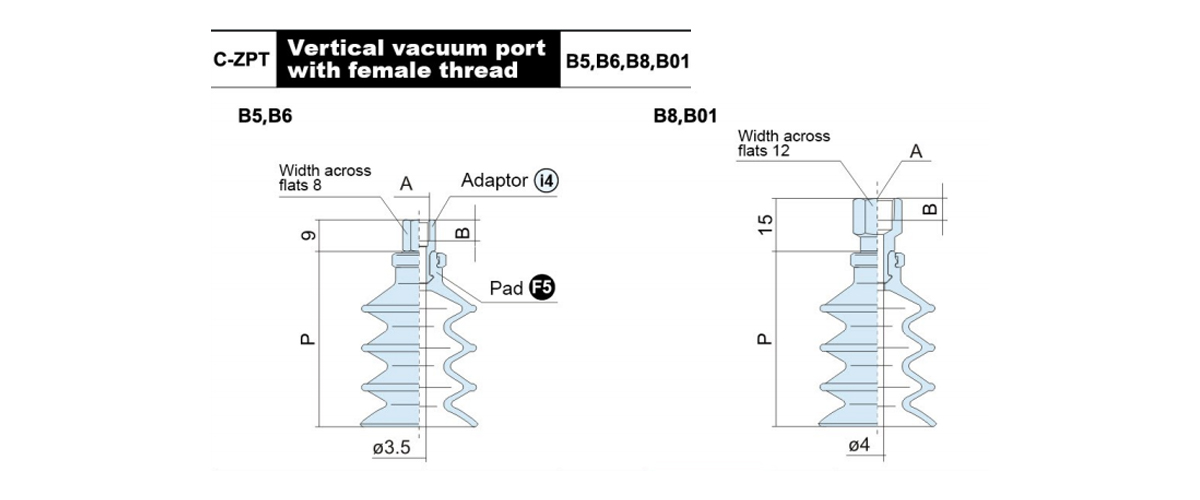

Model	A	B	○ Pad Diameter P		Adaptor Model
			25	30
C-ZPT○J□-B5	M5×0.8	5	42.5	44.5	ZPT3-B5
C-ZPT○J□-B6	M6×1.0	6			ZPT3-B6
C-ZPT○J□-B6	M8×1.25	8			ZPT3-B8
C-ZPT○J□-B01	Rc1/8	6.2			ZPT3-B01
○Symbol of pad diameter:25,30 □ Material:NBR(N),Silicone(S)

Model	A	E	L	○.Pad Diameter	P	Adaptor Model
				25	30
C-ZPR○J□-◇-A6	M6×1.0	8	69.5	42.5	44.5	ZPR3-◇-A6
C-ZPR○J□-◇-A8	M8×1.0	12	59.5			ZPR3-◇-A8
○Symbol of pad diameter:25,30 □ Material:NBR(N),Silicone(S) ◇ Vacuum port connection:04,06,08

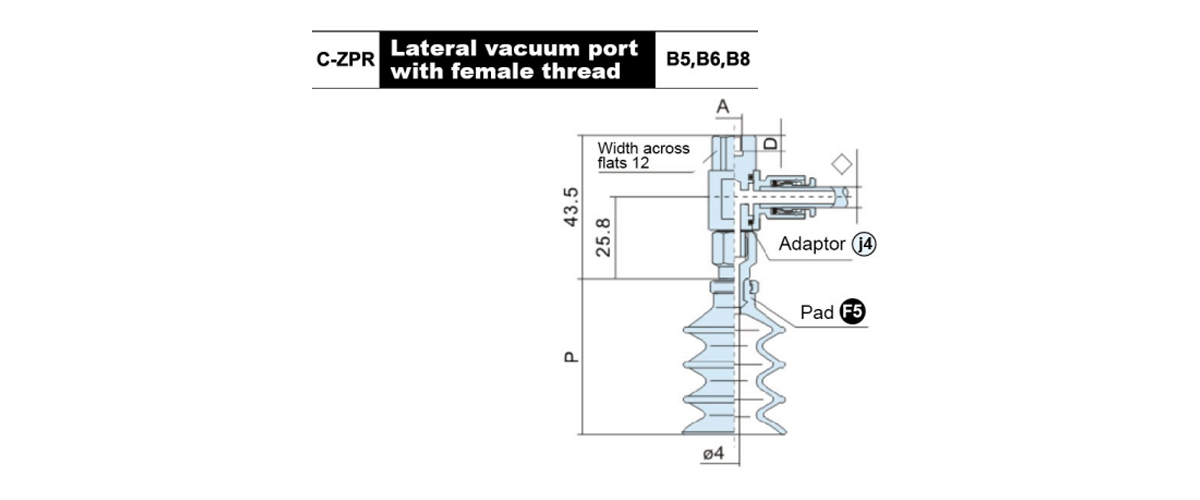

Model	A	D	○ Pad Diameter		P	Adaptor Model
			25	30
C-ZPR○J□-◇-B5	M5×0.8	5	42.5	44.5		ZPR3-◇-B5
C-ZPR○J□-◇-B6	M6×1.0	6				ZPR3-◇-B6
C-ZPR○J□-◇-B8	M8×1.25	8				ZPR3-◇-B8
○ Symbol of pad diameter:25,30 □ Material:NBR(N),Silicone(S) ◇ Vacuum port connection:04,06,08

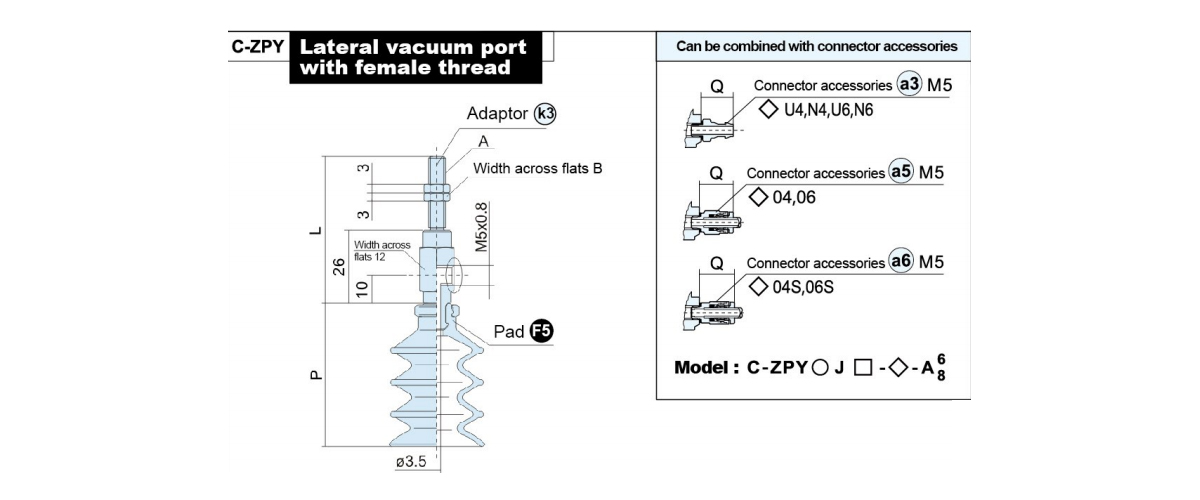

Model	A	B	L	○ Pad Diameter P		Adaptor Model
				25	30
C-ZPY○J□-B5-A6	M6×1.0	8	54	42.5	44.5	ZPY3-B5-A6
C-ZPY○J□-B5-A8	M8×1.0	12	44			ZPY3-B5-A8
○ Symbol of pad diameter:25,30 □ Material:NBR(N),Silicone(S)

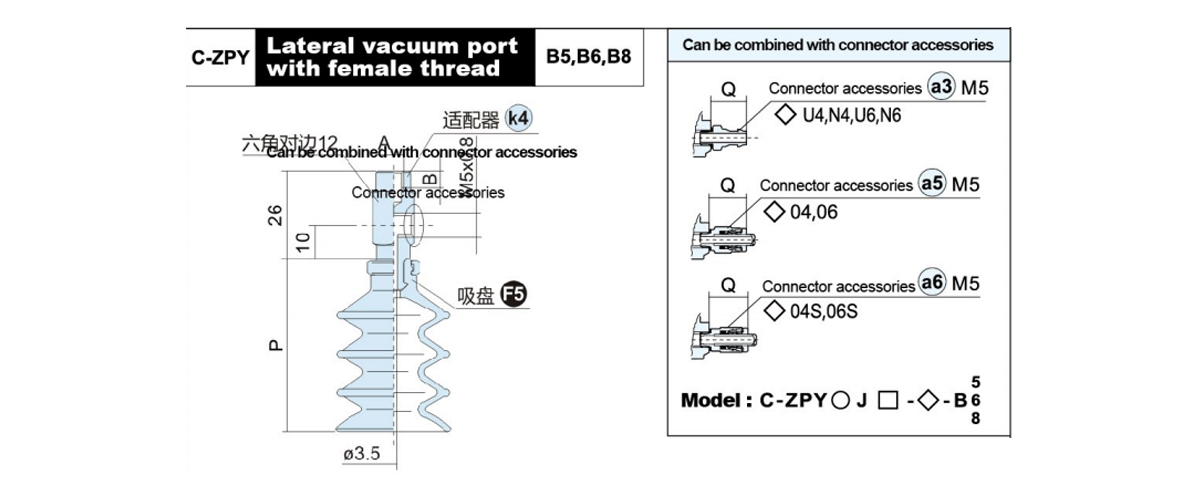

Model	A	B	○ Pad Diameter		P	Adaptor Model
			25	30
C-ZPY○J□-B5-B5	M5×0.8	5	42.5	44.5		ZPY3-B5-B5
C-ZPY○J□-B5-B6	M6×1.0	6				ZPY3-B5-B6
C-ZPY○J□-B5-B8	M8×1.25	8				ZPY3-B5-B8
○ Symbol of pad diameter:25,30 □ Material:NBR(N),Silicone(S)

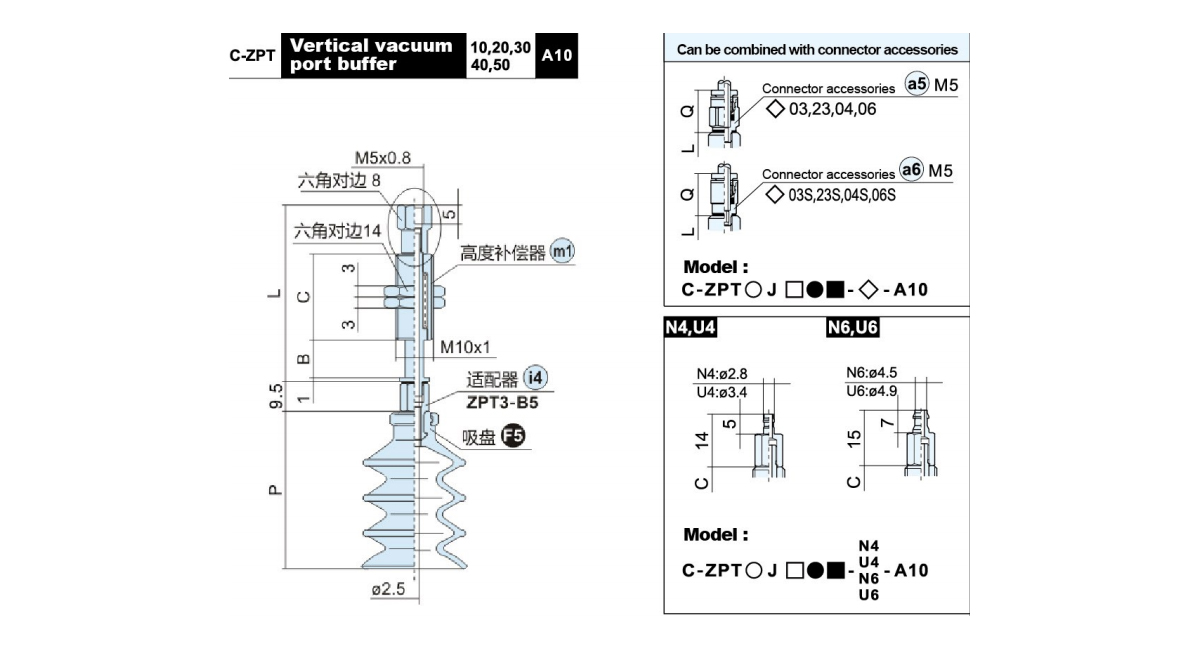

Model	B	C	L	○ Pad Diameter		P	m1 i4 Bumper Support Model
				25	30
C-ZPT○J□●10-B5-A10	10	23	47	42.5	44.5		ZPT3-●10-B5-A10
C-ZPT○J□●20-B5-A10	20	51	85				ZPT3-●20-B5-A10
C-ZPT○J□●30-B5-A10	30		95				ZPT3-●30-B5-A10
C-ZPT○J□●40-B5-A10	40	77	131				ZPT3-●40-B5-A10
C-ZPT○J□●50-B5-A10	50		141				ZPT3-●50-B5-A10
○ Symbol of pad diameter:25,30 □ Buffer stroke(mm):10,20,30,40,50 ■ Material:NBR(N),Silicone(S) ● Height compensator type:Rotative(J) Unable to rotate(K)

Model	B	C	L	○ Pad Diameter	P	m2 i4 Bumper Support Model
				25	30
C-ZPT○J□●10-B5-A14	10	50	77	42.5	44.5	ZPT3-●10-B5-A14
C-ZPT○J□●20-B5-A14	20		81			ZPT3-●20-B5-A14
C-ZPT○J□●30-B5-A14	30		91			ZPT3-●30-B5-A14
C-ZPT○J□●50-B5-A14	50	75	136			ZPT3-●50-B5-A14
C-ZPT○J□●10-B01-A14	10	50	78.5			ZPT3-●10-B01-A14
C-ZPT○J□●20-B01-A14	20		84			ZPT3-●20-B01-A14
C-ZPT○J□●30-B01-A14	30		94			ZPT3-●30-B01-A14
C-ZPT○J□●50-B01-A14	50	75	139			ZPT3-●50-B01-A14
○ Symbol of pad diameter:25,30 ■ Buffer stroke(mm):10,20,30,40,50 □ Material:NBR(N),Slicone(S) ● Height compensator type:Rotative(J) Unable to rotate(K)

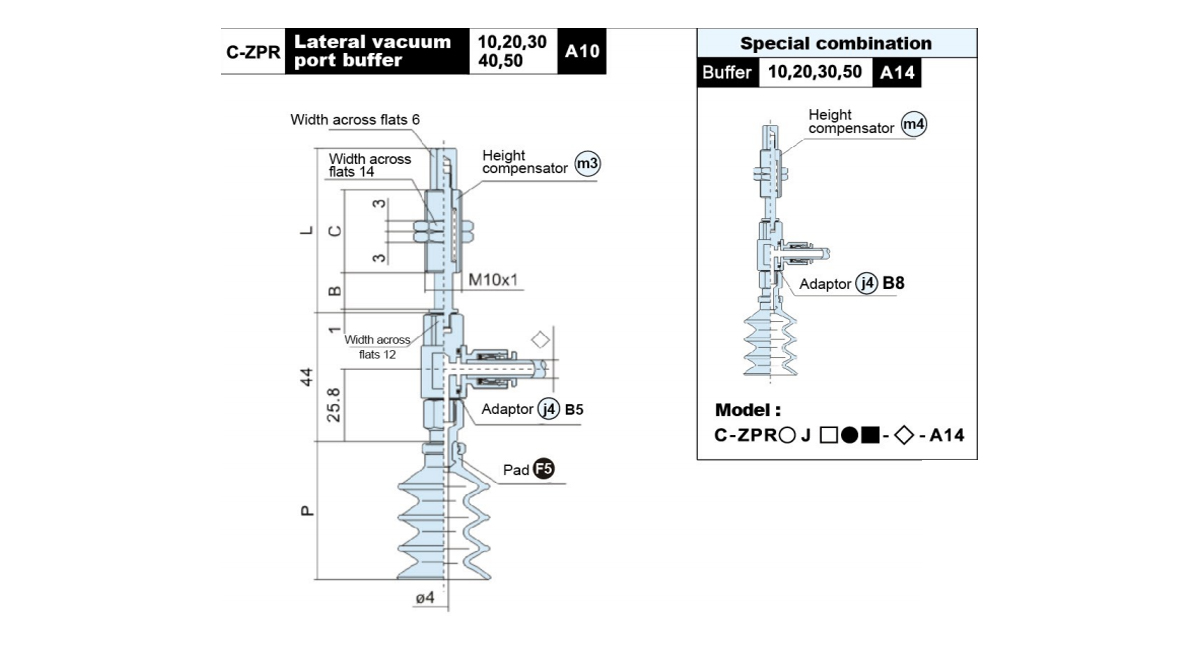

Model	B	C	L	○ Pad Diameter P		m3 j4 Bumper Support Model
				25	30
C-ZPR○J□●10-◇-A10	10	23	45	42.5	44.5	ZPR3-●10-◇-A10
C-ZPR○J□●20-◇-A10	20	51	83			ZPR3-●20-◇-A10
C-ZPR○J□●30-◇-A10	30		93			ZPR3-●30-◇-A10
C-ZPR○J□●40-◇-A10	40	77	129			ZPR3-●40-◇-A10
C-ZPR○J□●50-◇-A10	50		139			ZPR3-●50-◇-A10
○ Symbol of pad diameter:25,30 □ Material:NBR(N),Silicone(S) ◇Vacuum port connection:04,06,08 ● Height compensator type:Rotative(J) Unable to rotate(K)

Model	B	C	L	○ Pad Diameter P		m3 k4 Bumper Support Model
				25	30
C-ZPY○J□●10-B5-A10	10	23	45	42.5	44.5	ZPY3-●10-B5-A10
C-ZPY○J□●20-B5-A10	20	51	83			ZPY3-●20-B5-A10
C-ZPY○J□●30-B5-A10	30		93			ZPY3-●30-B5-A10
C-ZPY○J□●40-B5-A10	40	77	129			ZPY3-●40-B5-A10
C-ZPY○J□●50-B5-A10	50		139			ZPY3-●50-B5-A10
○ Symbol of pad diameter:25,30 □ Material:NBR(N),Silicone(S) ■ Buffer stroke(mm):10,20,30,40,50 ● Height compensator type:Rotative(J) Unable to rotate(K)

정품의 신뢰할 수 있는 품질은 자연스럽게 돋보입니다.

선택은 신뢰에서 오고, 협력은 정직에서 옵니다.

Q: 문의사항을 보낸 후 얼마나 빨리 답변을 받을 수 있나요?

영업일 기준으로 문의 접수 후 24시간 이내에 답변을 드리겠습니다.
Q: 당신은 직접 제조업체입니까, 아니면 무역 회사입니까?

우리는 제조업체이며 자체 국제 영업 부서를 보유하고 있습니다. 그래서 우리가 직접 생산하고 판매할 수 있습니다.
Q: 맞춤형 제품을 만들 수 있나요?

예, 고객이 제공한 도면이나 샘플에 따라 제품을 개발하고 생산할 수 있습니다.
Q: 귀사는 제품 품질을 어떻게 보장합니까?

우선, 각 공정 후에 검사를 실시합니다. 완제품에 대해서는 고객의 요구 사항과 국제 표준에 따라 100% 검사를 실시합니다.
Q: 귀사의 제품은 주로 어디로 수출됩니까?

당사의 제품은 주로 독일, 미국, 덴마크 및 유럽과 북미의 12개 이상의 국가로 수출됩니다

언어

소개

뉴스
